Wireless Single-Axis Tri-Axis Vibration Sensor
Video
Product details
Features
●The product adopts high performance MEMS chip, high measuring precision, strong anti-interference ability.
●The product provides screw mounting and magnetic suction mounting.
●Can measure uniaxial, triaxial vibration velocity, vibration displacement and other parameters.
●Motor surface temperature can be measured.
●10-30V DC wide voltage power supply.
●Protection level IP67.
●Supports remote upgrade.
High integration, X, Y and Z axis vibration real-time monitoring
● Displacement ● Temperature ● Vibration frequency
The device provides three installation methods: magnetic suction, screw thread and adhesive, which is firm, durable and indestructible, and has a wider range of application scenarios.
Vibration sensor output signal RS485, analog quantity; Can integrate GPRS, WiFi, 4G, LORA, LORAWAN, real-time view data
Product application

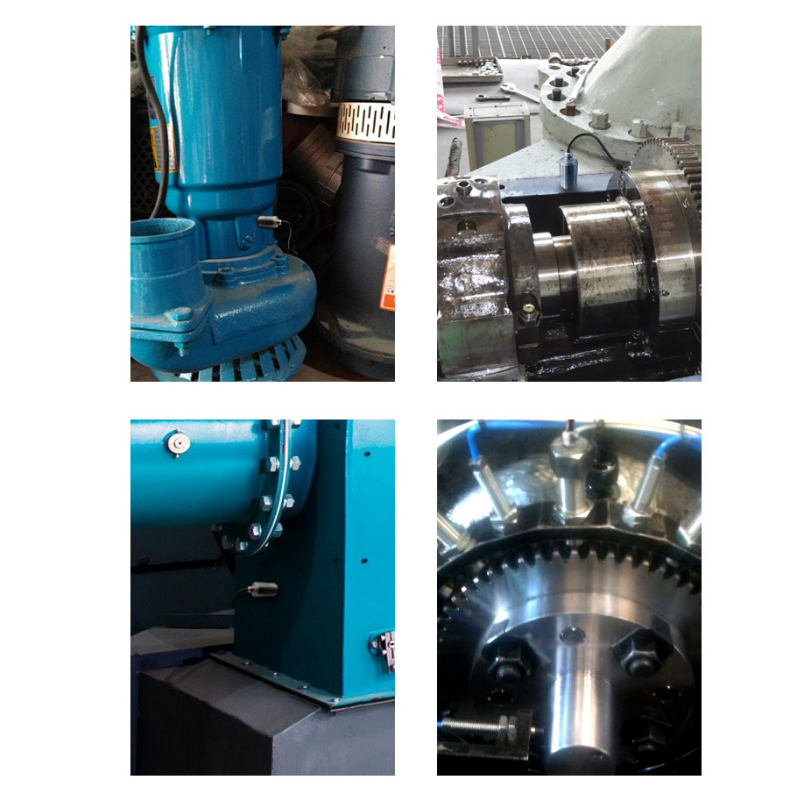

Products are widely used in coal mining, chemical industry, metallurgy, power generation and other industries of motor, reducer fan, generator, air compressor, centrifuge, water pump and other rotating equipment temperature and vibration online measurement.
Product parameters
| Product name | Vibration Sensor |
| Power supply | 10~30V DC |
| Power consumption | 0.1W(DC24V) |
| Protection level | IP67 |
| Frequency range | 10-1600 HZ |
| Vibration measurement direction | Uniaxial or triaxial |
| Operating temperature of transmitter circuit | -40℃~+80℃, 0%RH~80%RH |
| Vibration velocity measurement range | 0-50 mm/s |
| Vibration velocity measurement accuracy | ±1.5% FS (@1KHZ, 10mm/s) |
| Vibration speed display resolution | 0.1 mm/s |
| Vibration displacement measurement range | 0-5000 μm |
| Vibration displacement display resolution | 0.1 μm |
| Surface temperature measurement range | -40~+80 ℃ |
| Temperature display resolution | 0.1 ° C |
| Signal output | RS-485 /Analog quantity |
| Detection cycle | Real time |
FAQ
Q: What is the material of this product?
A: The sensor body is made of stainless steel.
Q: What is the product communication signal?
A: Digital RS485 /Analog quantity output.
Q: What is its supply voltage?
A: The product's DC power supply for is between 10~30V DC.
Q: What is the power of the product?
A: Its power is 0.1 W.
Q: How do I collect data?
A: You can use your own data logger or wireless transmission module. If you have one, we provide RS485-Mudbus communication protocol. We can also provide matching LORA/LORANWAN/GPRS/4G wireless transmission modules.
Q: Do you have matching software?
A: Yes,We have matching cloud services and software, which is completely free. You can view and download data from the software in real time, but you need to use our data collector and host.
Q: Where can this product be applied?
A: Products are widely used in coal mining, chemical industry, metallurgy, power generation and other industries of motor, reducer fan, generator, air compressor, centrifuge, water pump and other rotating equipment temperature and vibration online measurement.
Q: How to collect data?
A: You can use your own data logger or wireless transmission module. If you have one, we provide RS485-Modbus communication protocol. We can also provide matching LORA/LORANWAN/GPRS/4G wireless transmission modules.
Q: Do you have matching software?
A: Yes, we can provide matching servers and software. You can view data in real time and download data from the software, but you need to use our data collector and host.
Q: How can I get samples or place an order?
A: Yes, we have materials in stock, which can help you get samples as soon as possible. If you want to place an order, just click on the banner below and send us an inquiry.
Q: What is the delivery time?
A: Usually, the goods will be shipped within 1-3 working days after receiving your payment. But it depends on your quantity.
