Wireless Digital Capacitive Soil Moisture And Temperature Sensor For Agriculture
Product Features
Product Application
The sensor is suitable for soil moisture monitoring, scientific experiments, water-saving irrigation, greenhouses, flowers and vegetables, grassland pastures, soil rapid testing, plant cultivation, sewage treatment, precision agriculture and other occasions.
Product Parameters
| Product Name | Capacitive Soil moisture and temperature 2 in 1 sensor |
| Probe type | Probe electrode |
| Measurement parameters | Soil moisture and temperature value |
| Moisture Measuring range | 0 ~ 100%(m3/m3) |
| Moisture Measurement accuracy | ±2% (m3/m3) |
| Temperature measuring range | -20-85℃ |
| Temperature Measurement accuracy | ±1℃ |
| Voltage output | RS485 output |
| Output signal with wireless | A:LORA/LORAWAN |
| B:GPRS | |
| C:WIFI | |
| D:NB-IOT | |
| Supply voltage | 3-5VDC/5V DC |
| Working temperature range | -30 ° C ~ 85 ° C |
| Stabilization time | <1 second |
| Response time | <1 second |

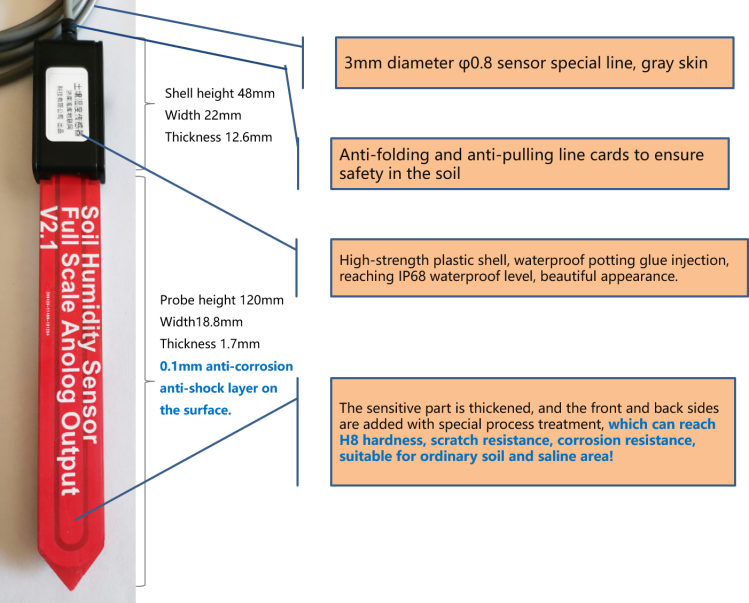

| Sealing material | ABS engineering plastic, epoxy resin |
| Waterproof grade | IP68 |
| Cable specification | Standard 2 meters (can be customized for other cable lengths, upto 1200 meters) |
Product Usage
Soil Surface measure method
1. Select a representative soil environment to clean up surface debris and vegetation

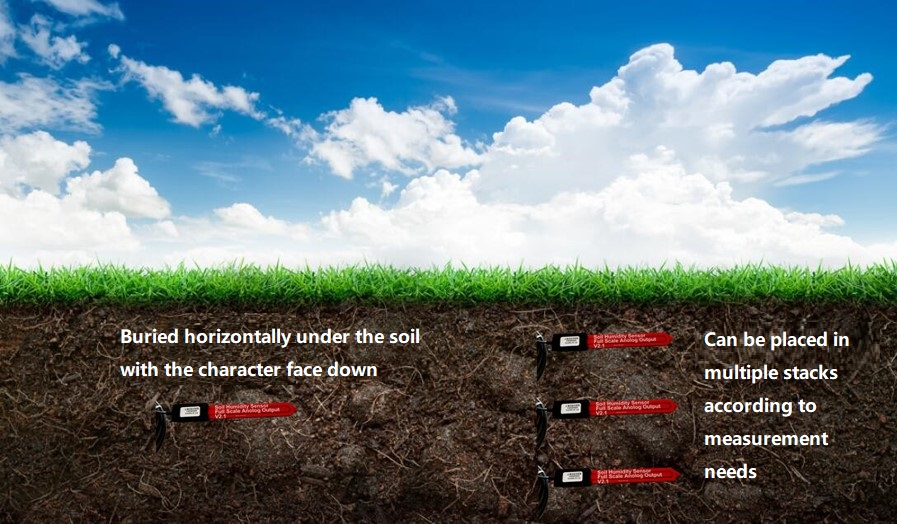

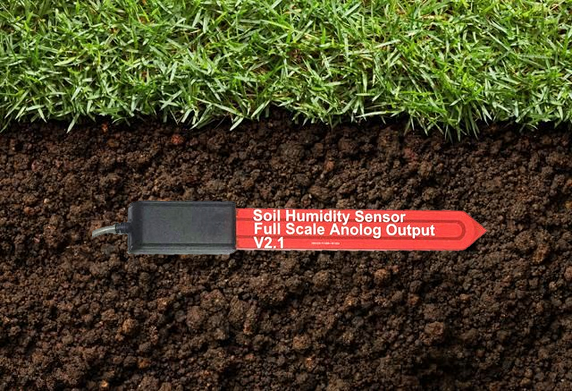

2. Insert the sensor horizontally and completely into the soil.
3. If there is a hard object, the measurement location should be replaced and re-measured
4. For accurate data, it is recommended to measure multiple times and take the average
Measure Notes
1. All probe must be inserted into the soil during measurement.
2. Avoid excessive temperature caused by direct sunlight on the sensor. Pay attention to lightning protection in the field
3. Do not pull the sensor lead wire with force, do not hit or violently hit the sensor.

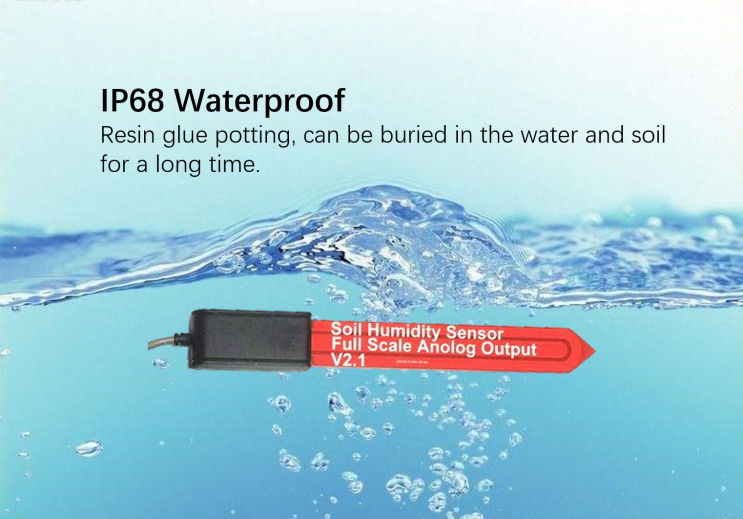

4. The protection grade of the sensor is IP68, which can soak the entire sensor in water.
5. Due to the presence of radio frequency electromagnetic radiation in the air, it should not be energized in the air for a long time.
Product Advantages

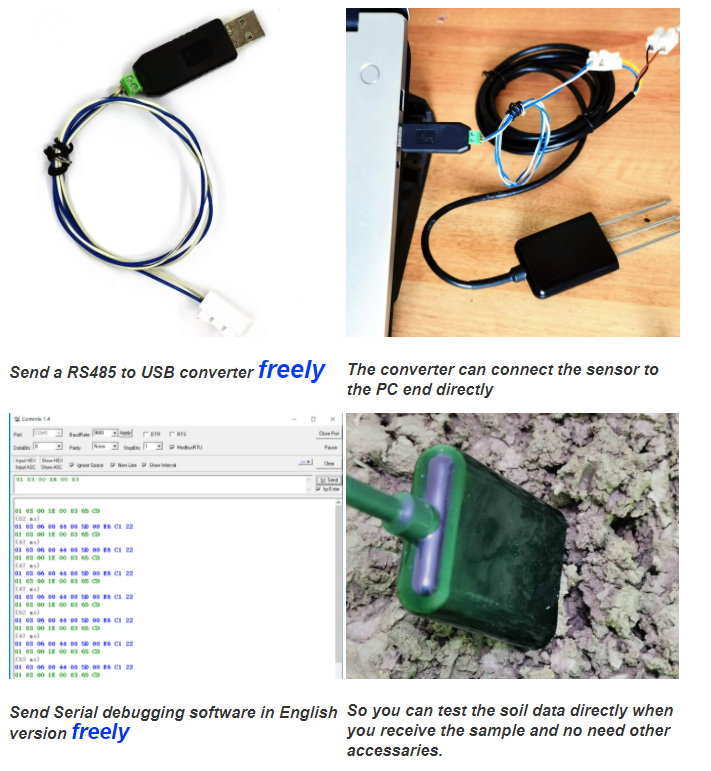

Advantage 1: Send the test kits totally free

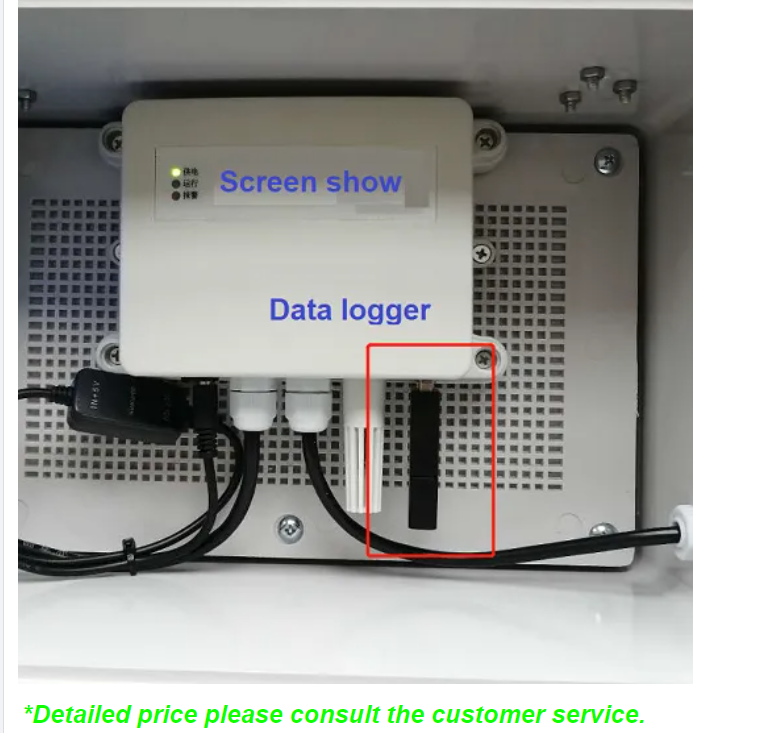

Advantage 2: Terminal end with the Screen and the Datalogger with SD card can be customizable.
Advantage 3: The LORA/ LORAWAN/ GPRS /4G /WIFI wireless module can be customizable.

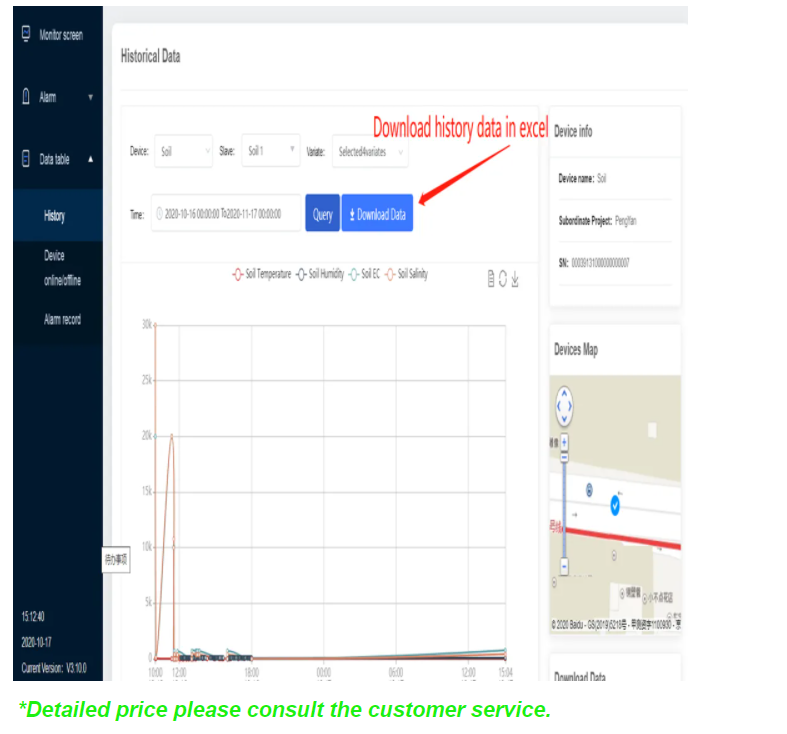

Advantage 4: Supply the matched cloud server and software to see real time data in PC or Mobile
FAQ
Q: What's the main characteristics of this capacitive soil moisture and temperature sensor?

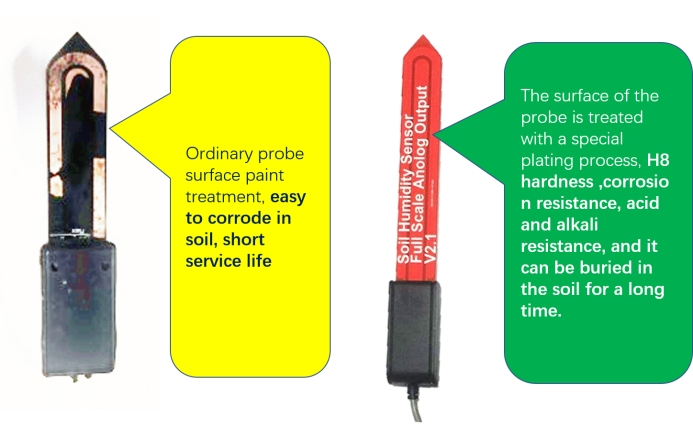

A: It is small size and high precision,good sealing with IP68 waterproof, can totally buried in the soil for the 7/24 continuous monitoring. It has very good corrosion resistance and can buried in the soil for a long time and with very good advantage price.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?

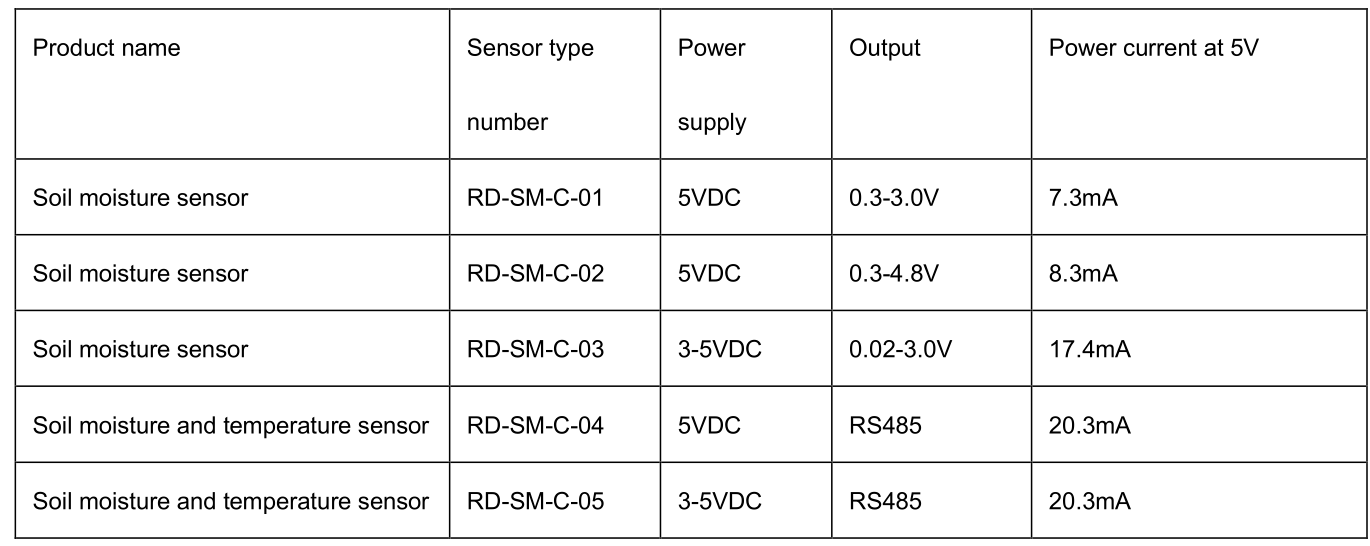

A: Output : RS485, 0-3V, 0-5V; Power supply : 3-5V, 5V
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module if you need.
Q: What's the standard cable length?
A: Its standard length is 2 meters. But it can be customized, MAX can be 1200 meters.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
