Twelve Parameters MODBUS Ultrasonic Lora LORAWAN Compact MICROMETEOROLOGY City Compact Weather Station

Short Description:

This series of products can collect temperature, humidity, air pressure, wind speed, wind direction, rainfall, radiation, illuminance, PM2.5,PM10, CO, SO2, CO2, NO2, O3, noise and other parameters, high product integration, high value, free installation. Its case is made of ASA material and can be used outdoors for more than 10 years. We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.


Product Detail

Product Tags

Description

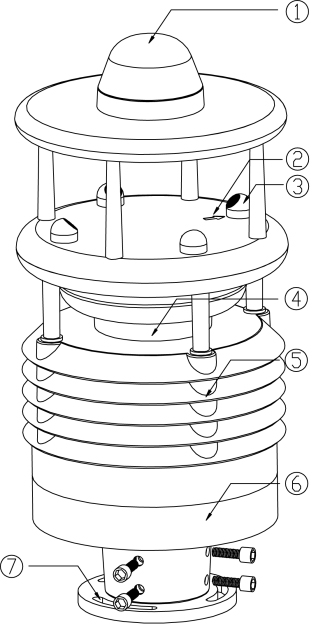

1.Infrared rain sensor

2. North arrow

3. Ultrasonic probe

4. Control circuit

5. Louver (temperature, humidity, air pressure monitoring position)

6. PM2.5,PM10,CO,NO2,SO2,O3

7. Bottom fixing flange

※ This product can be equipped with electronic compass, GPRS (built-in) / GPS (choose one)

weather-station-14
weather-station-13

Features

● Real-time measurement using advanced sensing technology

● Works around the clock, free from heavy rain, snow, frost and weather

● High measurement accuracy and stable performance

● Compact and beautiful structure,

● High integration, easy to install and disassemble

● Maintenance free, no on-site calibration

● Using ASA engineering plastics outdoor application does not change color all the year round

weather-station-12

Technical Data Sheet

weather-station-11
weather-station-10
weather-station-9

Application Field

● Weather monitoring

● Urban environmental monitoring

● Wind power

● Navigation ship

● Airport

● Bridge tunnel

weather-station-8

Product Parameters

Measurement parameters

Parameters name Ultrasonic wind speed, wind direction, Air temperature, Air relative humidity, Atmospheric pressure, PM2.5,PM10.Rainfall,CO,SO2,NO2,O3
Parameters Measure range Resolution Accuracy
Wind speed 0-60m/s 0.01m/s (0-30m/s)±0.3m/s or ±3%FS
Wind direction 0-360° 0.1° ±2°
Air temperature -40-60℃ 0.01℃ ±0.3℃(25℃)
Air relative humidity 0-100%RH 0.01% ±3%RH
Atmospheric pressure 300-1100hpa 0.1hpa ±0.5hpa(0-30℃)
PM2.5 0-1000ug/m³ 1ug/m³ ±10%
PM10 0-1000ug/m³ 1ug/m³ ±10%
Rainfall 0-200mm/h 0.1mm ±10%
CO 0-20ppm ≤10ppb ±1.5%F.S
SO2 0-2000ppb ≤10ppb ±1.5%F.S
NO2 0-2000ppb ≤10ppb ±1.5%F.S
O3 0-2000ppb ≤10ppb ±1.5%F.S
Other customizable parameters Rainfall Radiation, illuminance, ultraviolet, CO,SO2, NO2, CO2, O3

Technical parameter

Stability Less than 1% during the life of the sensor
Response time Less than 10 seconds
Warm-up time 30S (SO2 \ NO2 \ CO \ O3 12 hours)
Working current DC12V≤60ma (HCD6815) -DC12V≤180ma
Power consumption DC12V≤0.72W (HCD6815); DC12V≤2.16W
Life time In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed),

life is not less than 3 years

Output RS485, MODBUS communication protocol
Housing material ASA engineering plastics
Working environment Temperature -30 ~ 70 ℃, working humidity: 0-100%
Storage conditions -40 ~ 60 ℃
Standard cable length 3 meters
The farthest lead length RS485 1000 meters
Protection level IP65
Electronic compass Optional
GPS Optional

Wireless transmission

Wireless transmission LORA / LORAWAN, GPRS, 4G,WIFI

Mounting Accessories

Stand pole 1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
Equiment case Stainless steel waterproof
Ground cage Can supply the matched ground cage to  buried  in the ground
Lightning rod Optional(Used in thunderstorm places)
LED display screen Optional
7 inch touch screen Optional
Surveillance cameras Optional

Solar power system

Solar panels Power can be customized
Solar Controller Can provide matched controller
Mounting brackets Can provide the matched bracket

Product Installation

weather-station-7

FAQ

Q: What's the main characteristics of this compact weather station?
A: It is easy for installation and has robust & integrated structure, 7/24 continuous monitoring.

Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.

Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.

Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol .We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.

Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.

Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.

Q: May I know your warranty?
A: Yes, usually it’s 1 year.

Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.

Q: What industry can be applied to in addition to construction sites?
A:Urban roads, bridges, smart street light, smart city, industrial park and mines, etc.
