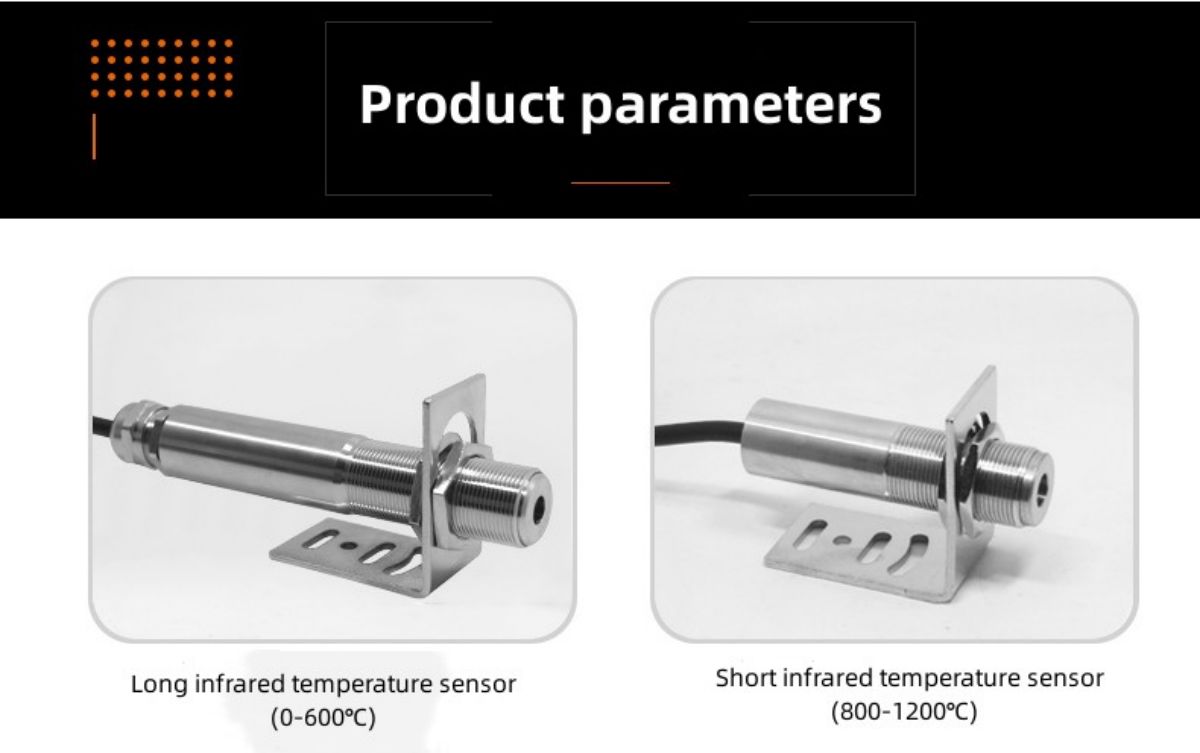

Stainless Steel Temperature Transmitter Industrial Non-Contact Infrared Temperature Sensor
Features
●High sensitivity temperature detection probe
●Signal stabilization
●High precision
●Wide measuring range
●Good linearity
●Easy to use
●Easy to install
●Long transmission distance
●Low power consumption
●All kinds of accessories to meet the needs of various working conditions
●150ms fast response temperature change
●The on-line infrared temperature sensor can be equipped with various instruments to form a complete set of temperature measuring equipment
Send matched cloud server and software
Can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission.
It can be RS485 4-20mA output with wireless module and matched server and software to see real time in PC end
Application
Non-contact temperature measurement, infrared radiation detection, temperature measurement of moving objects, continuous temperature control, thermal warning system, air temperature control, medical equipment, long-distance measurement
Product parameters
| Product name | Infrared temperature sensor |
| Dc power supply | 10V-30V DC |
| Maximum power consumption | 0.12 w |
| Measuring temperature range | 0-100℃, 0-150℃, 0-200℃, 0-300℃, 0-400℃, 0-500℃, 0-600℃ (default 0-600℃) |
| Numerical temperature resolution | 0.1℃ |
| Spectral range | 8~14um |
| Precision | ±1% or ±1℃ of the measured value, maximum value (@300℃) |
| Transmitter circuit operating environment | Temperature: -20 ~60°C Relative humidity: 10-95% (no condensation) |
| Preheating time | ≥40min |
| Response time | 300 ms (95%) |
| Optical resolution | 20:1 |
| Emission rate | 0.95 |
| Output | RS485/4-20mA |
| Cable length | 2 metres |
| Protection class | IP54 |
| Shell | 304 stainless steel |
|
Data Communication system |
|
| Wireless module | GPRS, 4G, LORA , LORAWAN |
| Server and software | Support and can see the real time data in PC directly |
FAQ
Q: What's the main characteristics of this sensor?
A: This product uses high sensitivity temperature detection probe, signal stability, high precision. It has the characteristics of wide measuring range, good linearity, easy to use, easy to install, long transmission distance and low power consumption.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 10-30V, RS485 output.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 200m.
Q: What's the lifetime of this Sensor?
A: At least 3 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
