Smart Precise Positioning Location Water Pipe Water Oil Acid Alkali Leak Sensor
vudio

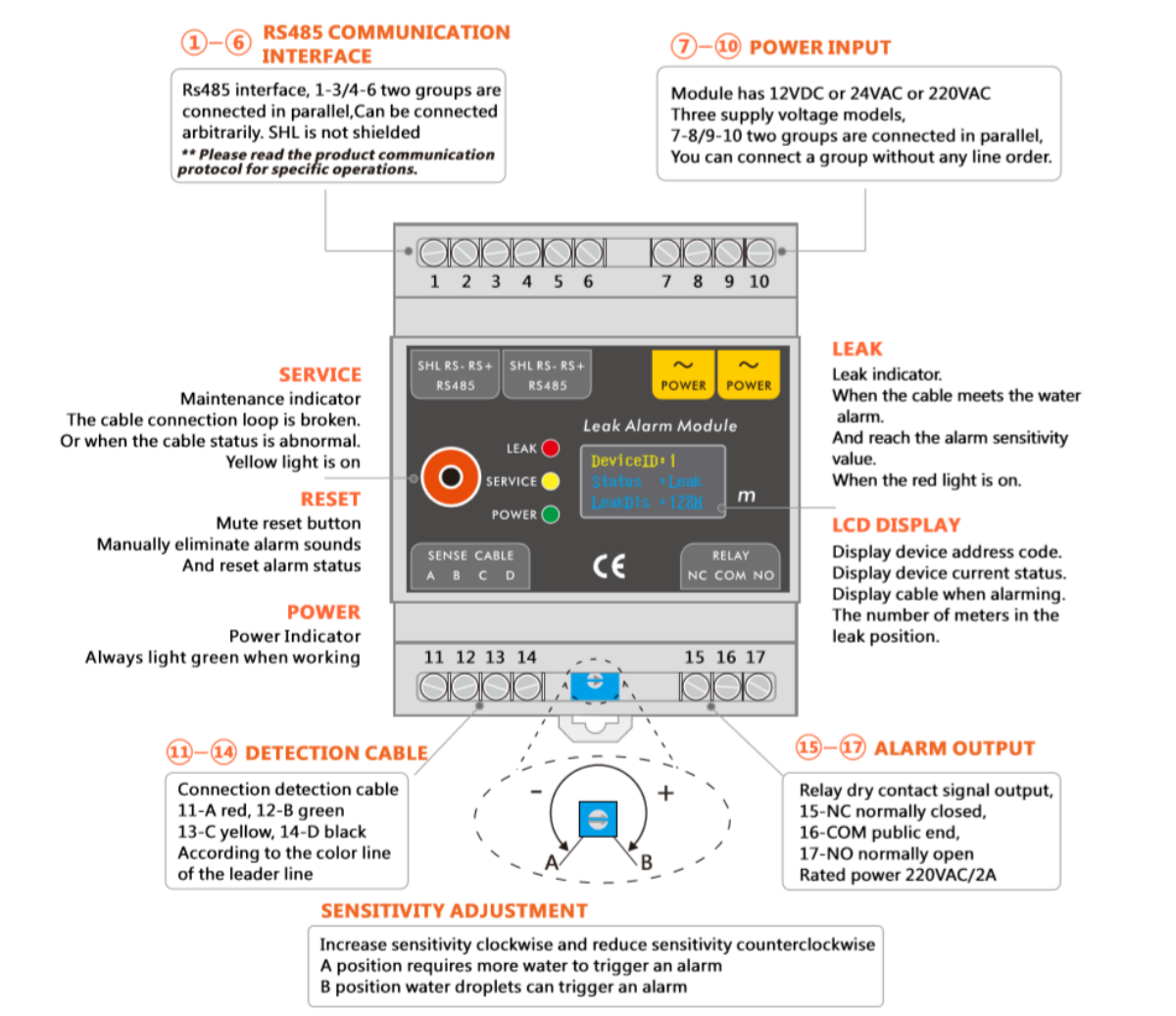

Features
1.RS485 communication： Anti-interference, can be integrated into various monitoring equipment to realize remote alarm and remote.
2.Sensitivity stepless adjustment：0-10K gear position, can be adjusted according to the detection requirements, the minimum can detect water droplets, no need to install software, direct host adjustment sensitivity, convenient and practical.
3.The detection module can detect the leakage of water, acid and alkali, oil and other liquids. The connection cable can be connected up to 1500 meters. When a liquid leak is detected, the leak position is displayed on the LCD screen and the relay alarm signal is output.
4.The alarm relay output can be selected in a variety of linkage modes, and can be selected from the normal state or the normal power-off mode.
5.The LEDs indicate power, leakage, cable faults, and communication status; the LCD screen shows where the leak occurred.
6.The power supply is available in 12VDC, 24VAC, and 220VAC power supply models.
Product application
It is suitable for detecting real-time leak detection in important places such as base stations, warehouses, libraries, museums and industrial sites in the computer room. It can be used in air handling equipment, refrigeration units, liquid containers, pump tanks and other equipment that need to monitor leaks.
Product parameters
| Product Name | Water oil Acid Alkali leak detect sensor with precise positioning |
| Detection cable: | Compatible with all kinds of position detection cable |

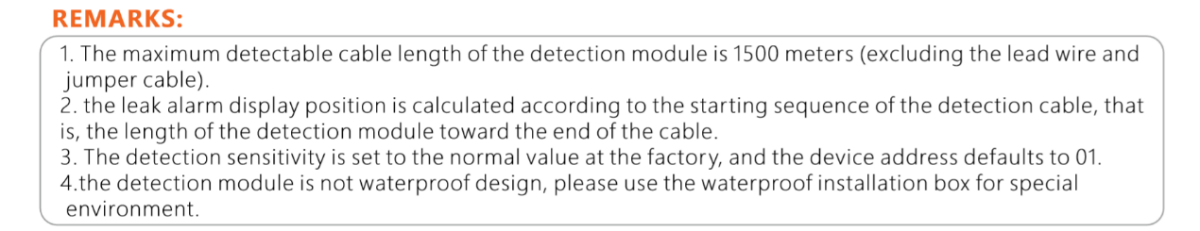

| Detect cable length | Maximum cable length is 1500 meters |
| Sensor housing | Black fireproof ANS material, DIN35mm rail mounting |
| Size and weight | L70*W86*H58mm, Weight:200g |
| Detection sensitivity | 0-50K stepless adjustment response time is less than 1 second (when the sensitivity is the highest) |
| Accuracy | 2% of the detect cable length |
| Supply voltage | 12VDC, 24VAC or 220VAC, Working current is less than 1A |
| Relay output | 1SPDT Normally open normally closed output, rated power 220VAC/2A |
| RS485 output | RS485+,RS485-, two-wire communication interface, device address:1-255 |
product use
FAQ
Q: What's the main characteristics of this water leak sensor?
A: This detection module can detect the leakage of water, weak acid, weak alkali, gasoline, diesel.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: 9~15VDC, Standby current 70mA, Alarm current 120mA
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module if you need.
Q: What's the max cable length?
A: MAX can be 500 meters.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be delivered in 1-3 working days after receiving your payment. But it depends on your quantity.
