Server Software Solar Thermoelectric Radiation Sensor
Video
Features
1. High precision
, good sensitivity, high absorption in the full spectrum. If you use for solar energy utilization, solar power generation, smart agriculture greenhouse, the sensor is the best choice
2. Extensible, customizable

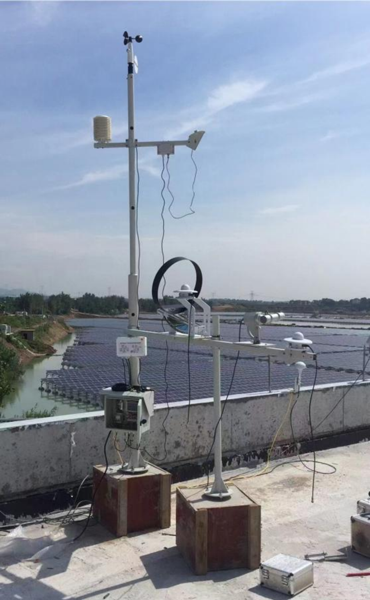

There are solar weather stations to cooperate with the use of customized parameters air temperature, humidity, pressure, wind speed, wind direction, solar radiation, etc.
Advantage 1
The core induction element of the watch adopts a wire-wound electroplating multi-contact thermopile, and its surface is coated with a black coating with high absorption rate. The hot junction is on the sensing surface, while the cold junction is located in the body, and the cold and hot junctions generate thermoelectric potential.
Advantage 2
High light transmittance K9 quartz cold-ground glass cover is used, with a tolerance of less than 0.1mm, ensuring light transmittance up to 99.7%, high absorption rate 3M coating, absorption rate up to 99.2%, do not miss any opportunity to absorb energy.
Advantage 3
The design of the embedded female head of the watch body is beautiful, waterproof, dustproof, and safer for monitoring; the design of the rotating male head of the watch line avoids the risk of misoperation, and the pull-out plug-in method does not need to be manually rotated and fixed, which is safer ,faster. The overall appearance is IP67 waterproof.
Advantage 4
Built-in temperature compensation and built-in desiccant can improve the measurement error in special weather, and can ensure that the annual drift rate is less than 1%.
Multiple output methods
4-20mA/RS485 output can be choosed
GPRS/ 4G/ WIFI /LORA/ LORAWAN wireless module Matched cloud server &software can be used The product can be equipped with cloud server and software,and real-time data can be viewed on the computer in real time
Product Application
It can be widely used in the measurement of solar radiation energy in meteorology, solar energy utilization, agriculture and forestry, aging of building materials and atmospheric environment monitoring.
Product parameters
|
Product Basic Parameters |
|
| Parameter name | Total solar pyranometer sensor |
| Measuring range | 0-20mV |
| Resolution | 0.01 mV |
| Precision | ± 0.3% |
| Operating voltage | DC 7-24V |
| Overall power consumption | < 0.2 W |
| Time response (95%) | ≤ 20s |
| Internal resistance | ≤ 800 Ω |
| Insulation resistance | ≥ 1 mega ohm M Ω |
| Nonlinearity | ≤ ± 3% |
| Spectral response | 285 ~ 3000nm |
| Working environment | Temperature range:-40 ~ 85 ℃ ,Humidity range: 5 ~ 90% RH |
| Cable length | 2 metres |
| Signal output | 0 ~ 20mV/RS485 |
| Photosensitive device | Quartz glass |
| Weight | 0.4 kg |
| Data Communication system | |
| Wireless module | GPRS, 4G, LORA , LORAWAN |
| Server and software | Support and can see the real time data in PC directly |
FAQ
Q: What's the main characteristics of this sensor?
A: It can be used to measure the total solar radiation intensity and pyranometer in the spectral range of 0.28-3 μ m.A quartz glass cover made by precision optical cold working is installed outside the induction element, which effectively prevents the influence of environmental factors on its performance. Small size, easy to use, can be used in harsh environments.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 7-24V, RS485/0-20mV output.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Can you supply the matched cloud server and software?
A: Yes, the cloud server and software is bind with our wireless module and you can see the real time data in the PC end and also download the history data and see the data curve.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 200m.
Q: What's the lifetime of this Sensor?
A: At least 3 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Greenhouse, smart Agriculture, meteorology, solar energy utilization, forestry, aging of building materials and atmospheric environment monitoring,Solar power plant etc.
