Server Software Solar Radiation Weather Station
Video
Product details
Features

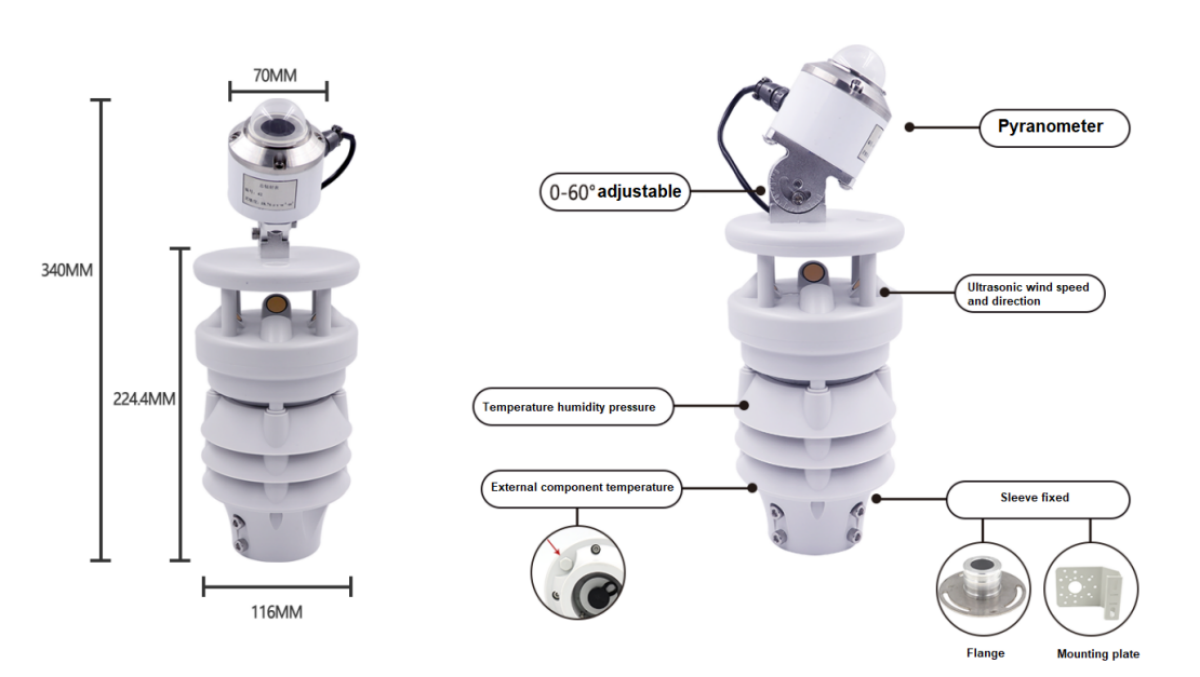

1. Solar radiation sensor and 6 in 1 weather station in one,
The solar radiation sensor and the temperature, humidity, atmospheric pressure, ultrasonic wind speed and wind direction, Solar panel module temperature 6-element weather station are integrated into one to meet the needs of photovoltaic power plants and new energy monitoring fields.
2.Ultrasonic wind speed and direction sensor
High precise free maintenance wind speed and direction sensor.
3. Air temperature humidity pressure
It can measure the air temperature humidity ,atmospheric pressure at the same time.
4.Reserve an expandable interface
It can integrate the solar panel module temperature sensor and the other sensors with one RS485 output modus protoocl.
5.Multiple wireless output methods
RS485 modbus protocol and can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.
6.Send matched cloud server and software
The matched cloud server and software can be supply if using our wireless module.
It has basic three functions:
1. See real time data in the PC end
2. Download the history data in excel type
3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
7.Multi-parameter integration
This weather station intergrate the air temperature humidity pressure rainfall and also can intergrate the wind speed , wind direction,soil temperature, soil moisture,soil EC and so on.
Product Application
Solar photovoltaic power station, photovoltaic resource evaluation, operation and maintenance management of solar photovoltaic power station, atmospheric heat balance research, meteorological environmental science research of solar photovoltaic power station
Product parameters
|
Measurement parameters |
|||
| Parameters Name | Weather station 6 in 1: Air temperature, Air relative humidity, Atmospheric pressure,Module temperature, Ultrasonic wind speed and direction ,Pyranometer | ||
| Parameters | Measure range | Resolution | Accurancy |
| Air temperature | -40-85℃ | 0.01℃ | ±0.3℃（25℃） |
| Air relative humidity | 0-100%RH | 0.01% | ±3%RH |
| Module temperature | -20 ℃ ~ + 80 ℃ | 0.1℃ | ≤ ±0.2℃ |
| Atmospheric pressure | 500-1100hPa | 0.1hPa | ±0.5hPa（25℃，950-1100hPa） |
| Wind speed | 0-60m/s | 0.01m/s | ±（0.3+0.03V）M/S;V≤30M/S
±（0.3+0.05V）M/S;V≥30M/S |
| Wind direction | 0-359.9° | 0.1° | ±3° |
| Total solar radiation | 0 ~ 2000W/m2 | 1W/m2 | ≤ ± 3% |
| Total radiation cumulant | Spectral range: 300 ~ 3200nm | Measurement accuracy: 5% | Update period: 1min |
| * Other customizable parameters | Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3 | ||
|
Monitoring principle |
Air temperature and humidity: Swiss digital temperature and humidity sensor | ||
| Wind speed and direction: Ultrasonic sensor | |||
| For the total solar radiation: It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter,
Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters. Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables |
|||
| Technical parameter | |||
| Operating temperature | -40 ℃-80 ℃ | ||
| Output signal | RS485 Communication, Modbus Protocol | ||
| Power supply | DC12-24V | ||
| Regulating disk of solar radiation meter | Adjustable range from 0 to 60 (40 for general standard) | ||
| Protection level | IP65 | ||
| Fixed mode | Sleeve type (optional adapter) | ||
| Fixed bracket | 1.5 m and 1.8 m brackets can be selected | ||
| Remarks | It integrated photovoltaic environmental monitor comes standard with TBQ-2C-D thermopile principle total radiation meter,Users can choose EKO/MS-802 (Class A), MS-60 (Class B) and MS-40 (Class C) total radiation meters.
Kipp & Zonen /CMP6 (Class B), CMP10 (Class A) Total Radiation Tables |
||
| Wireless transmission | |||
| Wireless transmission | LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI | ||
| Cloud Server and Software introduce | |||
| Cloud server | Our cloud server is bind up with the wireless module | ||
| Software function | 1. See real time data in the PC end | ||
| 2. Download the history data in excel type | |||
| 3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range. | |||
| Mounting Accessories | |||
| Equiment case | Stainless steel waterproof | ||
| Ground cage | Can supply the matched ground cage to buried in the ground | ||
| Lightning rod | Optional(Used in thunderstorm places) | ||
| LED display screen | Optional | ||
| 7 inch touch screen | Optional | ||
| Surveillance cameras | Optional | ||
| Solar power system | |||
| Solar panels | Power can be customized | ||
| Solar Controller | Can provide matched controller | ||
| Mounting brackets | Can provide the matched bracket | ||
Product installation
FAQ
Q: What's the main characteristics of this compact weather station?
A: It can measure the air temperature humidity pressure wind speed wind direction Solar panel module temperature 6 parameters at the same time,and solar radiation value, and the other parameters also can be custom made. It is easy for installation and has robust & integrated structure, 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24 V , RS 485. The other demand can be custom made.
Q: Which output of the sensor and how about the wireless module?
A: It is RS485 output with the standard Modbus protocol and you can use your own data logger or wireless transmission module if you have , and we can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: How can I collect the data and can you supply the matched server and software?
A: We can supply three ways to show the data:
(1) Integrate the data logger to store the data in the SD card in excel type
(2) Integrate the LCD or LED screen to show the real time data indoor or outdoor
(3) We can also supply the matched cloud server and software to see the real time data in the PC end.
Q: What’s the standard cable length?
A: Its standard length is 3 m. But it can be customized, MAX can be 1 Km.
Q: What's the lifetime of this weather station?
A: We use the ASA engineer material which is anti-ultraviolet radiation which can be used for 10 years outside.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: In which industries can it be used?
A:Solar photovoltaic power station, photovoltaic resource evaluation, operation and maintenance management of solar photovoltaic power station, atmospheric heat balance research, meteorological environmental science research of solar photovoltaic power station, etc.
