RS485 RS232 SDI12 Mini Smart Wind Speed Direction Sensor Ultrasonic Anemometer

Short Description:

This upgraded version of the mini wind speed and direction has a smaller volume and is suitable for places with narrower spaces such as pipelines and tunnels to monitor wind speed and direction values.We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.


Download

Product Detail

Product Tags

Video

Product details

Small size

It is more advantageous to monitor wind speed and direction in narrow spaces such as pipelines and small tunnels.

Features
• Miniaturized
• Output RS485/RS232/SDI12 (Optional)
• Low power consumption
• Ultrasonic principle, no moving parts
• Easy installation
• low cost

Advantage
Compared with the traditional mechanical anemometer, it has the characteristics of small wear, long service life and fast corresponding speed.

Exclusive advantage
The ultrasonic probe is installed on the upper plate surface, which can not be interfered by rain and snow, and the measurement accuracy is more accurate

Server and Software
It can be RS485 output and we can also supply the all kinds wireless module GPRS, 4G, WIFI , LORA , LORAWAN and also the matched server and software to see the real time data in the PC end

1
2

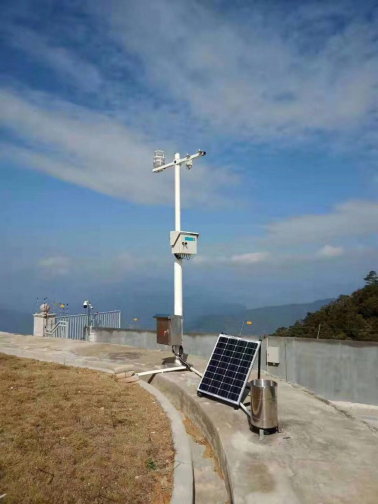

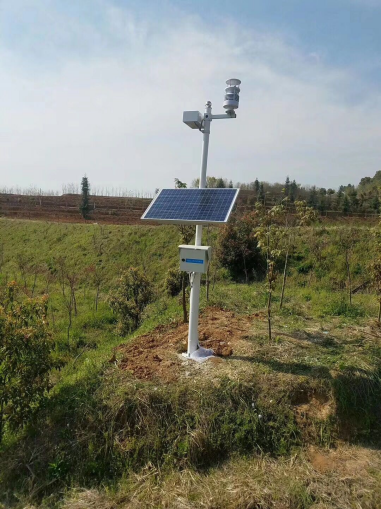

Product application

Application field

● Weather monitoring

● Urban environmental monitoring

● Wind power

● Navigation ship

● Airport

● Bridge tunnel

● Pipeline

3
4

Product parameters

Measurement parameters
Parameters name 2 in 1 : Ultrasonic wind speed and wind direction sensor
Parameters Measure range Resolution Accuracy
Wind speed 0-40m/s 0.01m/s ±（0.5+0.05V）M/S
Wind direction 0-359.9° 0.1° ±5°
* Other customizable parameters Air temperature, humidity, pressure, noise PM2.5/PM10/CO2,Radar rainfall

Technical parameter
Stability Less than 1% during the life of the sensor
Response time Less than 10 seconds
Working current DC12V≤60ma
Power consumption DC12V≤0.72W
Output RS485/RS232/SDI12,MODBUS communication protocol
Housing material ASA
Working environment Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions -40 ~ 60 ℃
Standard cable length 3 meters
The farthest lead length RS485 1000 meters
Protection level IP65

Wireless transmission
Wireless transmission LORA / LORAWAN, GPRS, 4G,WIFI



Mounting Accessories
Stand pole 1.5 meters, 2 meters ,3 meters high, the other high can be customize
Equipment case Stainless steel waterproof
Ground cage Can supply the matched ground cage to burred in the ground
Lightning rod Optional(Used in thunderstorm places)
LED display screen Optional
7 inch touch screen Optional
Surveillance cameras Optional

Solar power system
Solar panels Power can be customized
Solar Controller Can provide matched controller
Mounting brackets Can provide the matched bracket

Free cloud server and software
Cloud server If buy our wireless modules, send free
Free software See real time data and download the history data in excel

FAQ

Q: What's the main characteristics of this compact weather station?
A: The ultrasonic probe is installed on the upper plate surface, which can not be interfered by rain and snow, and the measurement accuracy is more accurate, 7/24 continuous monitoring.

Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be integrated in our present weather station.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.

Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485/RS232/SDI12 can be optional. The other demand can be custom made.

Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.

Q: Can we have the screen and the data logger?
A: Yes, we can match the screen type and data logger which you can see the data in the screen or download the data from the U disk to your PC end in excel or test file.

Q: Can you supply the software to see the real time data and download the history data?
A: We can supply the wireless transmission module including the 4G,WIFI,GPRS , if you use our wireless modules, we can supply the free server and free software which you can see the real time data and download the history data in the software directly.

Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.

Q: What's the lifetime of this Mini Ultrasonic Wind Speed Wind Direction Sensor?
A: At least 5 years long.

Q: May I know your warranty?
A: Yes, usually it’s 1 year.

Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.

Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc.
