Rs485 output water Leak Detector sensor
Features
RS485 computer communication
Anti-interference, realize remote alarm, remote control equipment, can be connected with various monitoring systems, realize remote alarm and remote equipment control
RS485 computer communication
Anti-interference, realize remote alarm, remote control equipment, can be connected with various monitoring systems, realize remote alarm and remote equipment control
Switch signal output
It can be connected with sound and light alarms, automatic valves, intelligent alarms and other switching signals. It can be combined with various monitoring systems to achieve remote alarms and remote device control.
Stepless sensitivity adjustment
It can be adjusted according to detection needs, 0-10K gear adjustment, the smallest can detect water droplets, no need to install software, the host directly adjusts the sensitivity, easy to use.
Wiring length up to 500 meters
The length of the cable connected to the host can reach 500 meters, high sensitivity, less false alarms, and long wiring, which reduces the difficulty of work.
One key mute
When a leak occurs, the high-decibel buzzer sounds, and the one-key mute button eliminates the alarm sound.
Automatic reset
The detection module can be automatically reset after the leakage is eliminated, without manual operation
Switch signal output
It can be connected with sound and light alarms, automatic valves, intelligent alarms and other switching signals. It can be combined with various monitoring systems to achieve remote alarms and remote device control.
Stepless sensitivity adjustment
It can be adjusted according to detection needs, 0-10K gear adjustment, the smallest can detect water droplets, no need to install software, the host directly adjusts the sensitivity, easy to use.
Wiring length up to 500 meters
The length of the cable connected to the host can reach 500 meters, high sensitivity, less false alarms, and long wiring, which reduces the difficulty of work.
One key mute
When a leak occurs, the high-decibel buzzer sounds, and the one-key mute button eliminates the alarm sound.
Automatic reset
The detection module can be automatically reset after the leakage is eliminated, without manual operation

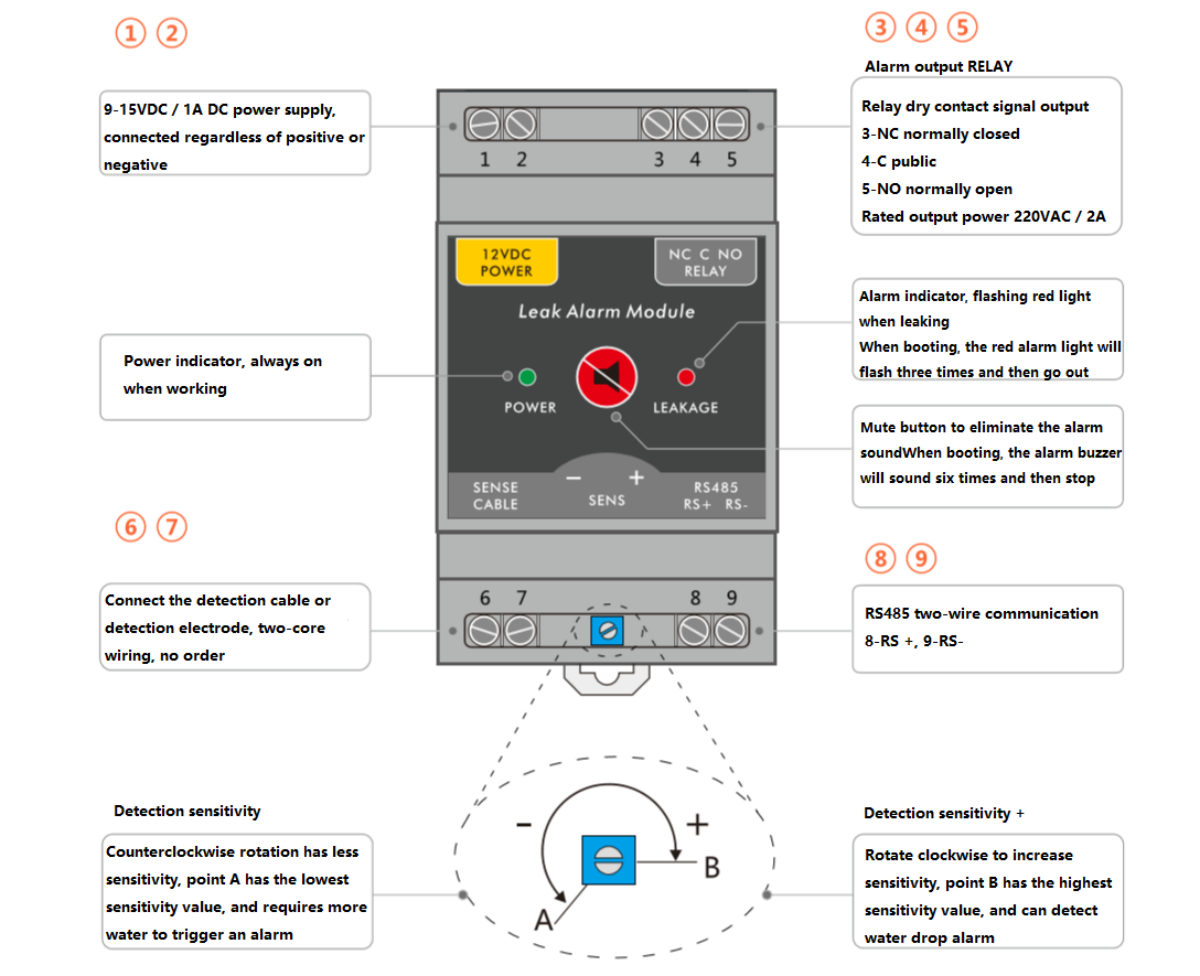

Note:
1.The maximum length of the detection cable is 500 meters (excluding the lead-out and jump-out cables)
2.The detection module is in automatic reset working mode
3.The factory setting of detection sensitivity is normal, and the device address is 01 by default
4.The detection module shell is not waterproof, and the special installation is to choose a waterproof installation box
Product application
It is suitable for detecting real-time leak detection in important places such as base stations, warehouses, libraries, museums and industrial sites in the computer room. It can be used in air handling equipment, refrigeration units, liquid containers, pump tanks and other equipment that need to monitor leaks.
Product parameters
| Product Name | Water oil Acid Alkali leak detect sensor |
| Detection cable: | Compatible with all kinds of detection cables and electrodes |
| Detect cable length | Maximum cable length is 500 meters |
| Sensor housing | Black fireproof ANS material, DIN35mm rail mounting |
| Size and weight | L90*W58*H52mm, Weight:100g |
| Detection sensitivity | 0-10K stepless adjustment response time is less than 1 second (when the sensitivity is the highest) |
| Supply voltage | 9~15VDC, Standby current 70mA, Alarm current 120mA |
| Relay output | 1SPDTNormally open normally closed output, rated power 60VDC/2A,220VAC/2A |
| RS485 output | RS+,RS-, two-wire communication interface, device address:1-255 |

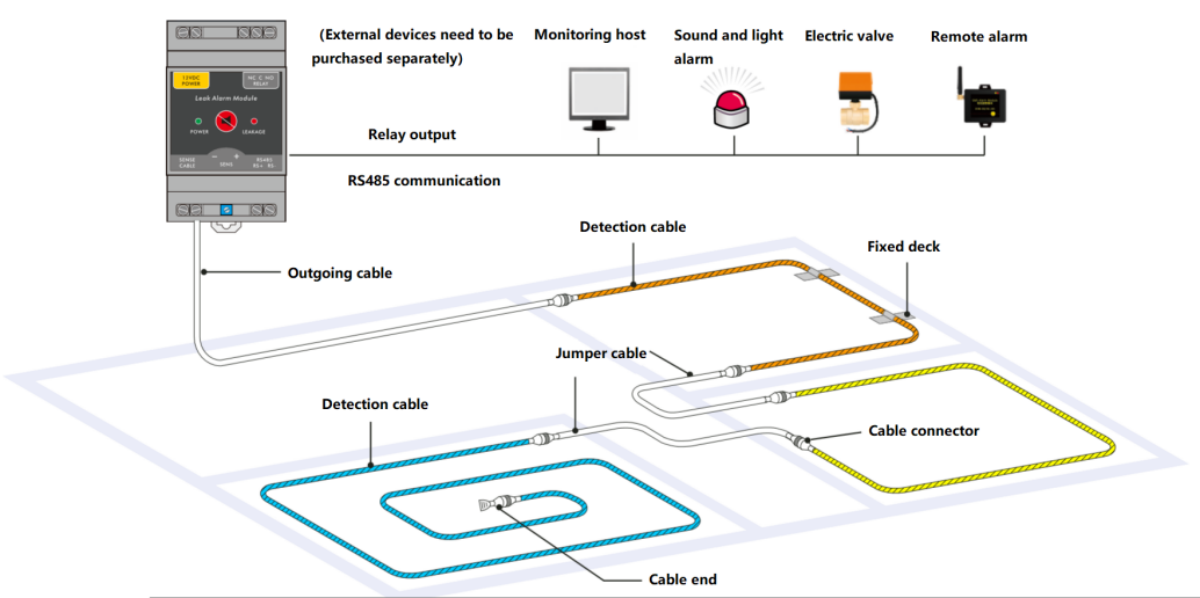

product use
FAQ
Q: What's the main characteristics of this water leak sensor?
A: This detection module can detect the leakage of water, weak acid, weak alkali, gasoline, diesel.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: 9~15VDC, Standby current 70mA, Alarm current 120mA
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module if you need.
Q: What's the max cable length?
A: MAX can be 500 meters.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be delivered in 1-3 working days after receiving your payment. But it depends on your quantity.
