Real Time Reading Rechargeable Handheld Multi Parameter Water Quality Meter

Short Description:

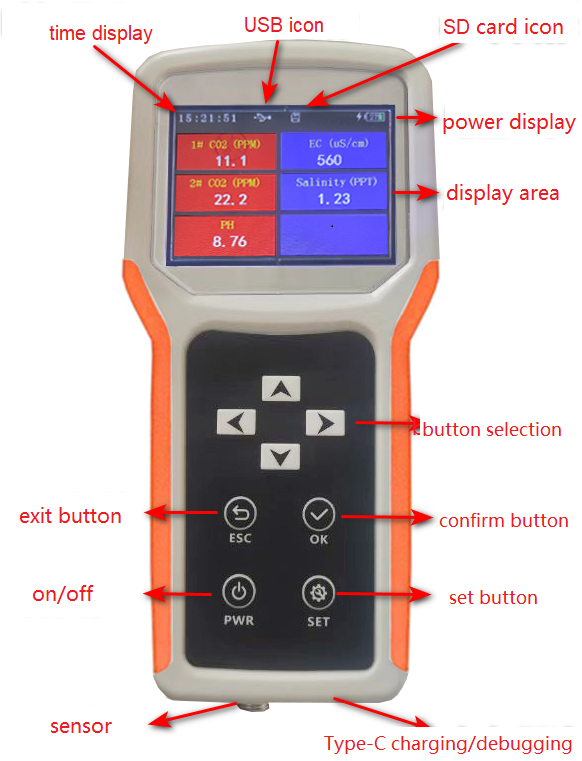

It can measure CO2, PH, conductivity, turbidity, dissolved oxygen and other elements in water. The device uses a large full-color LCD screen, which can display the real-time data. It has high sensitivity as well as excellent repeatability. The device also has a data storage function that can be set to automatically store the storage time inside the device. Plugged into the computer via USB, the computer will recognize the U disk and can output the data.

Send email to us Download

Product Detail

Product Tags

Video

Product features

Features

●Real-time display of measurement results, fast speed and easy operation； ●U-disk storage of output data；
●USB debugging and upgrading of equipment；
●Full-color LCD display with beautiful interface；
●Large storage space. Up to hundreds of millions of data according to the selected SD card；

Advantage

●Rechargeable
●Real-time reading
●Store data
●Customizable parameter
●Data save
●Data download

Product application

Application scenarios: aquaculture, environmental monitoring, drinking water treatment, sewage treatment, agriculture and irrigation, water resources management, etc.

Product parameters

Measurement parameters
Parameters name	Handheld Multi parameters Water PH DO ORP EC TDS Salinity Turbidity Temperature Ammonium Nitrate Residual Chlorine Sensor
Parameters	Measure range	Resolution	Accuracy
PH	0~14 ph	0.01 ph	±0.1 ph
DO	0～20mg/L	0.01mg/L	±0.6mg/L
ORP	-1999mV～＋1999mV	±10% OR ±2mg/L	0.1mg/L
EC	0～10000uS/cm	1uS/cm	±1F.S.
TDS	0-5000 mg/L	1mg/L	±1 F.S.
Salinity	0-8ppt	0.01ppt	±1% FS
Turbidity	0.1～1000.0 NTU	0.1 NTU	±3% FS
Ammonium	0.1-18000ppm	0.01PPM	±0.5% FS
Nitrate	0.1-18000ppm	0.01PPM	±0.5% FS
Residual chlorine	0-20mg/L	0.01mg/L	2%FS
Temperature	0~60℃	0.1℃	±0.5℃
Note*	The other water parameters support the custom made
Technical parameter
Output	LCD Screen with data logger to store data or without data logger
Electrode type	Multi electrode with protect cover
Language	Support Chinese and English
Working environment	Temperature 0 ～ 60 ℃, working humidity: 0-100%
Power supply	Chargeable battery
Protection Isolation	Up to four isolation, power isolation ,protection grade 3000V
Standard sensor cable length	5 meters
Other parameters
Sensors types	It can also integrate the other sensors including the soil sensors, weather station sensor and flow sensor and so on.

FAQ

Q: What's the main characteristics of this sensor?
A: It is handheld type and can integrate all kinds of water sensors including the Water PH DO ORP EC TDS Salinity Turbidity Temperature Ammonium Nitrate Residual chlorine sensor and the others with the chargeable battery.

Q: Can your handheld meter integrate the other sensors?
A: Yes, it can also integrate the other sensors like soil sensors, weather station sensors, gas sensors, .water level sensor , water speed sensor, water flow sensor and so on.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: What’s the common power supply ?
A: It is chargeable battery type and can be charged when there is no power.

Q: How can I collect data?
A: It can show the real time data in the LCD screen and also can integrate the data logger which store the data in excel type and you can download the data from the hand meter by the USB cable directly.

Q: Which language does this hand meter support?
A: It can support the Chinese and the English language.

Q: What’s the standard cable length?
A: The sensor standard length is 5m. If you need, we can extend for you.

Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
