Pulse Or RS485 Output Stainless Steel Tipping Bucket Rain Gauge
Video
Product Features
1. All of the material is stainless steel including the inner part which can use for long time.
2. It can output 10 parameters at the same time with the total rainfall, yesterday rainfall , real time rainfall and so on.
3. It can be installed the steel pins to avoid birds to build nests which can be free maintain.
4. Rain bearing diameter: φ 200 mm conforms with the international standard.
5. Acute angle of cutting edge: 40 ~ 45 degree conforms with the international standard.
6. Resolution: 0.5mm, 0.2mm, 0.1mm (optional).
7. Measurement accuracy: ≤ 3% (indoor artificial precipitation, subject to the displacement of the instrument itself).
8. Rain intensity range: 0mm ~ 4mm/min (the maximum allowable rain intensity is 8mm/min).
9. Communication mode: 485 communication (standard MODBUS-RTU protocol)/Pulse /0-5V/0-10V/ 4-20mA.
10. Power supply range: 5 ~ 30V Maximum power consumption: 0.24 W operating environment.
Product Applications

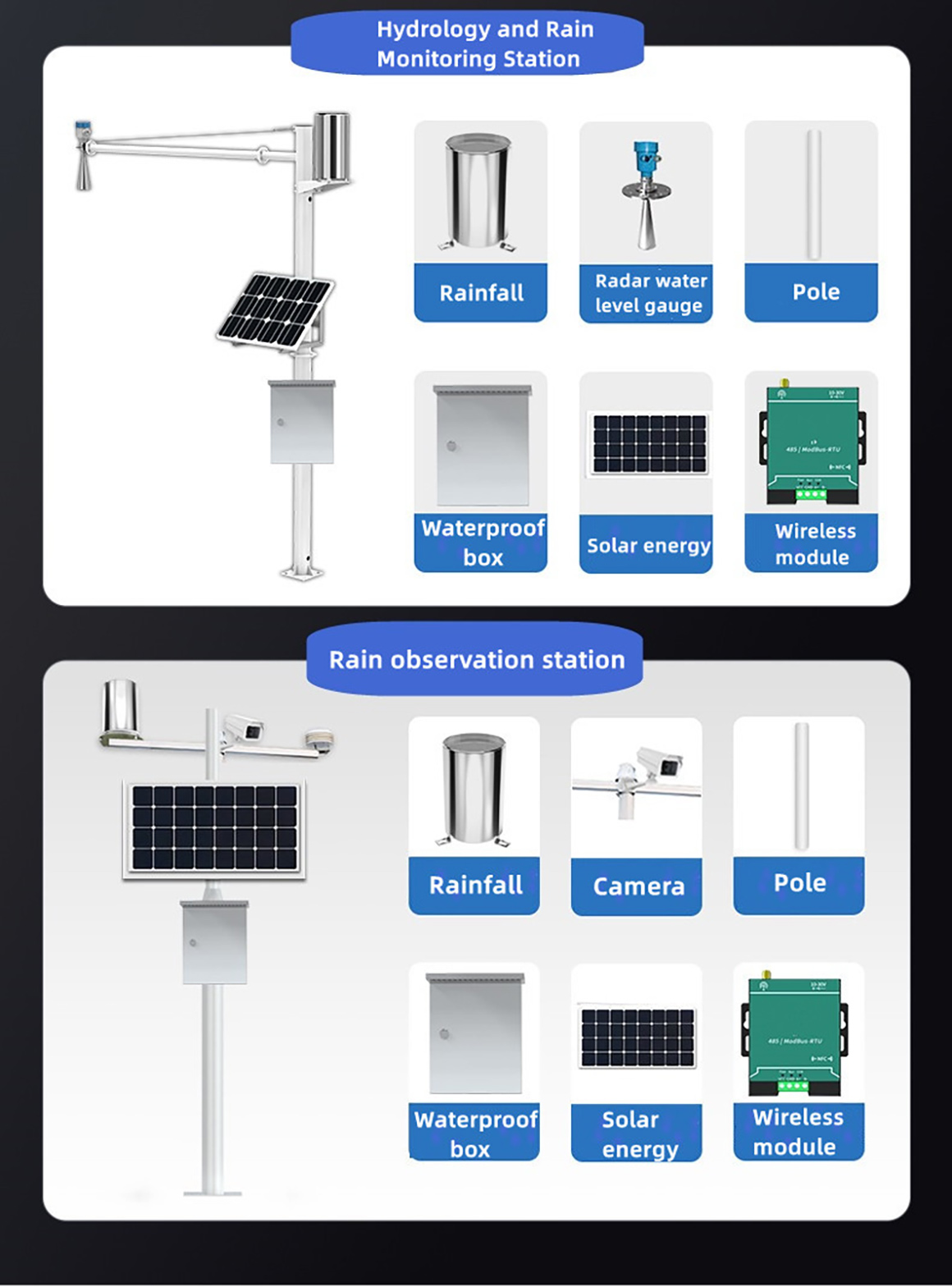

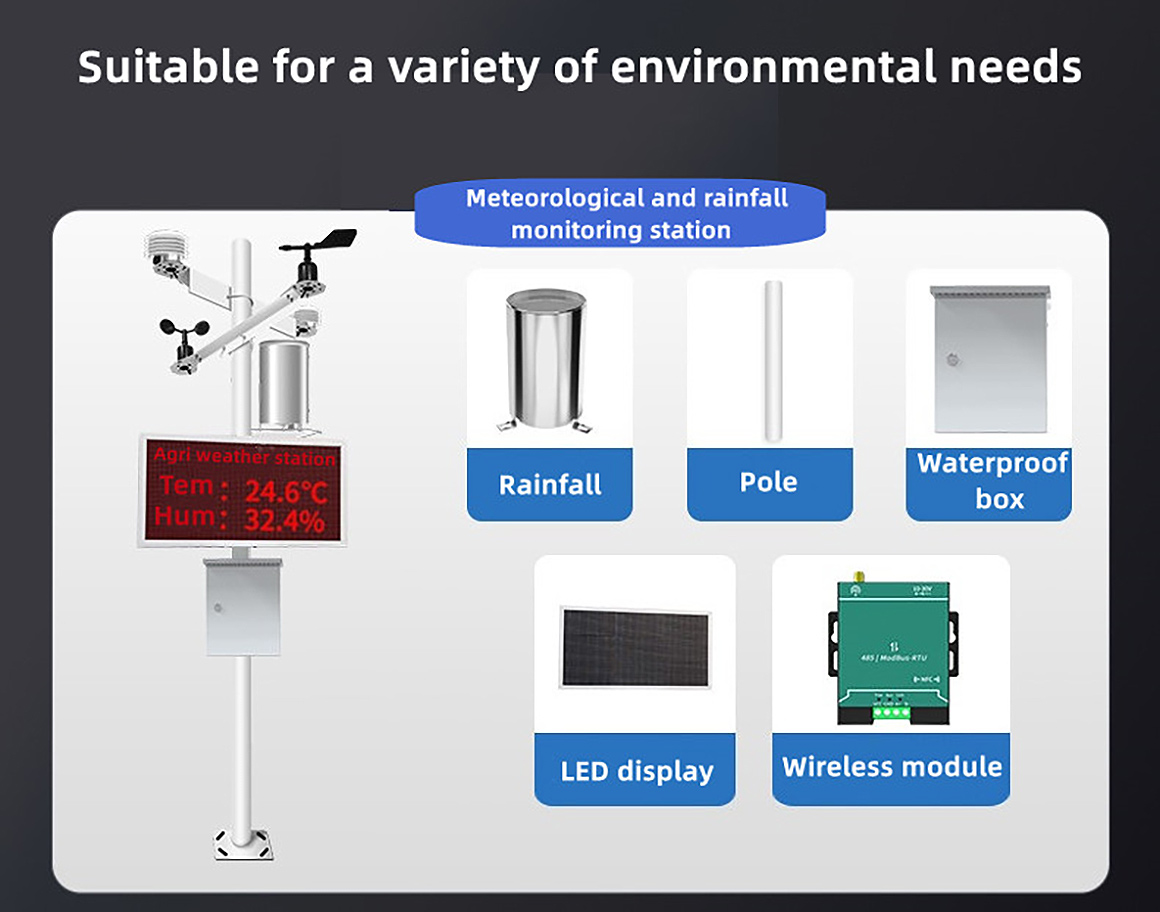

The sensor is suitable for rainfall monitoring, meteorological monitoring, agricultural monitoring, flash flood disaster monitoring, etc.

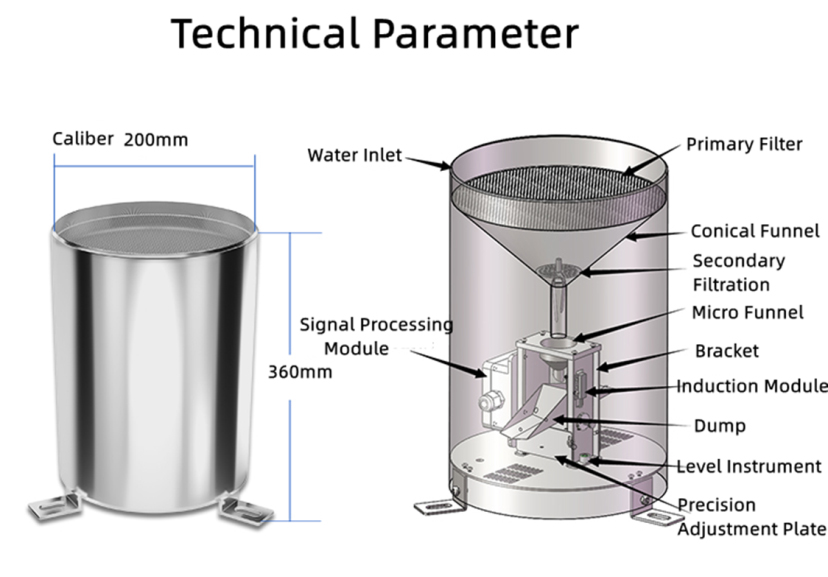

Product Parameters
| Product Name | 0.1mm/0.2mm/0.5mm stainless steel tipping buckets Rain Gauge |
| Resolution | 0.1mm/0.2mm/0.5mm |
| Rain inlet size | φ200mm |
| Sharp edge | 40～45 degree |
| Rain intensity range | 0.01mm~4mm/min (allows maximum rain intensity of 8mm/min) |
| Measurement accuracy | ≤±3% |
| Resolution | 1mg/Kg(mg/L) |
| Power supply | 5~24V DC (when the output signal is 0~2V, 0~2.5V, RS485) 12~24V DC (when the output signal is 0~5V, 0~10V, 4~20mA No power need if pulse output |
| Way of sending | Two-way reed switch on and off signal output |
| Working environment | Ambient temperature: -10 ° C ~ 50 ° C |
| Relative humidity | <95%(40℃) |
| Size | φ216mm×460mm |
|
Output signal |
|
| Signal mode | Data conversion |
| Voltage signal 0~2VDC | Rainfall=50*V |
| Voltage signal 0~5VDC | Rainfall=20*V |
| Voltage signal 0~10VDC | Rainfall=10*V |
| Voltage signal 4~20mA | Rainfall=6.25*A-25 |
| Pulse signal(pulse) | 1 pulse represents 0.2mm rainfall |
| Digital signal(RS485) | Standard MODBUS-RTU protocol, baudrate 9600; Check digit:None,data bit:8bits,stop bit:1 (address defaults to 01) |
| Wireless output | LORA/LORAWAN/NB-IOT,GPRS |
Product Advantages
All stainless steel rain gauge housing and internal components are made of stainless steel, compared with plastic, no deformation,no aging, high precision, long service life, and the accuracy will not decrease with the increase of service life.
Product Information
Various signal outputs
Pulse RS485 multi-signal output with 0.1mm, 0.2mm, 0.5mm resolution can be optional.
Model 485 optional ten-element rainfall
1. Rainfall that day from 0:00 am to now 2. Instantaneous rainfall: rainfall between
queries 3. Yesterday's rainfall: The amount of rainfall in the 24 hours yesterday
4. Total Rainfall: The total rainfall after the sensor is powered on
5. Hourly rainfall
6. Rainfall last hour
7. 24-hour maximum rainfall
8. 24-hour maximum rainfall period
9. 24 hour minimum rainfall
10. 24-hour minimum rainfall period

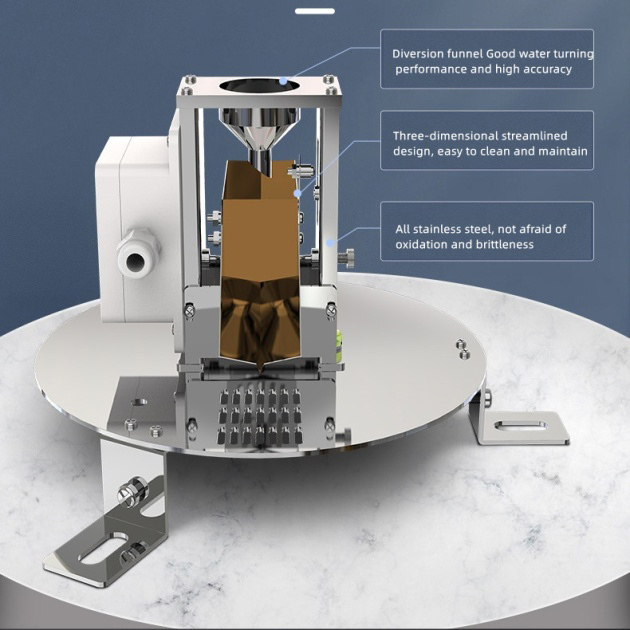

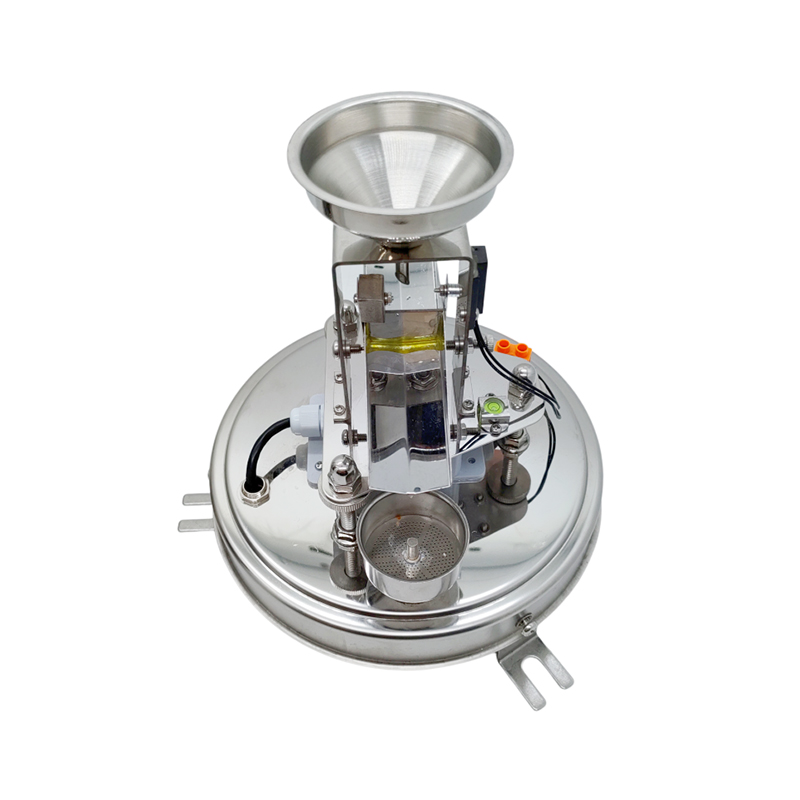

1. Whole rain gauge including the bucket and the inner parts all are made of the 304 stainless steel .
2.High sensitivity tipping bucket, high precision.
3. Bearing steel bearing, durable and wear-resistant.

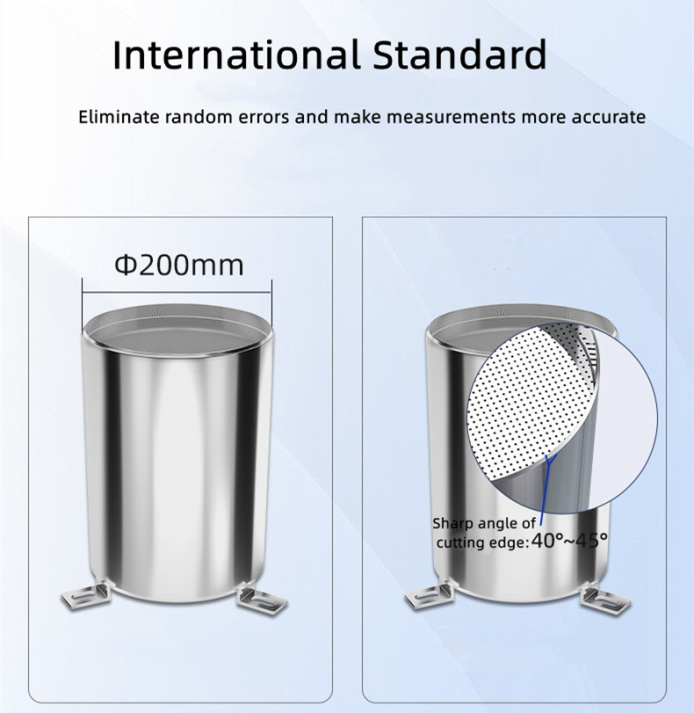

With 200 mm diameter and the 45 degree Sharp edge which In line with international standards.
Eliminate random errors and make measurements more accurate.
FAQ
Q: What's the main characteristics of this rain gauge sensor?
A: It is stainless steel tipping buckets Rain Gauge with the measure resolution with 0.1mm/0.2mm/0.5mm optional.
Q: Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: Which output types does it have?
A: It can be RS485, Pulse, 0-5V, 0-10V, 4-20mA output.
Q: How many parameters can it output?
A:For the Model 485 optional ten-element rainfall it can output in 10 parameters of
1. Rainfall that day from 0:00 am to now
2. Instantaneous rainfall: rainfall between
queries
3. Yesterday's rainfall: The amount of rainfall in the 24 hours yesterday
4. Total Rainfall: The total rainfall after the sensor is powered on
5. Hourly rainfall
6. Rainfall last hour
7. 24-hour maximum rainfall
8. 24-hour maximum rainfall period
9. 24 hour minimum rainfall
10. 24-hour minimum rainfall period
Q: Can we have the screen and the datalogger?
A: Yes, we can match the screen type and data logger which you can see the data in the screen or download the data from the U disk to your PC end in excel or test file.
Q: Can you supply the software to see the real time data and download the history data?
A: We can supply the wireless transmission module including the 4G, WIFI, GPRS , if you use our wireless modules, we can supply the free server and free software which you can see the real time data and download the history data in the software directly.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q: What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
