PIR 24GHZ Radar Millimeter Wave RS485 Type Remote Alarm Monitoring Human Body Sensor
Features
1. The monitoring methods are microwave and pyroinfrared
High recognition accuracy and low misjudgment rate.

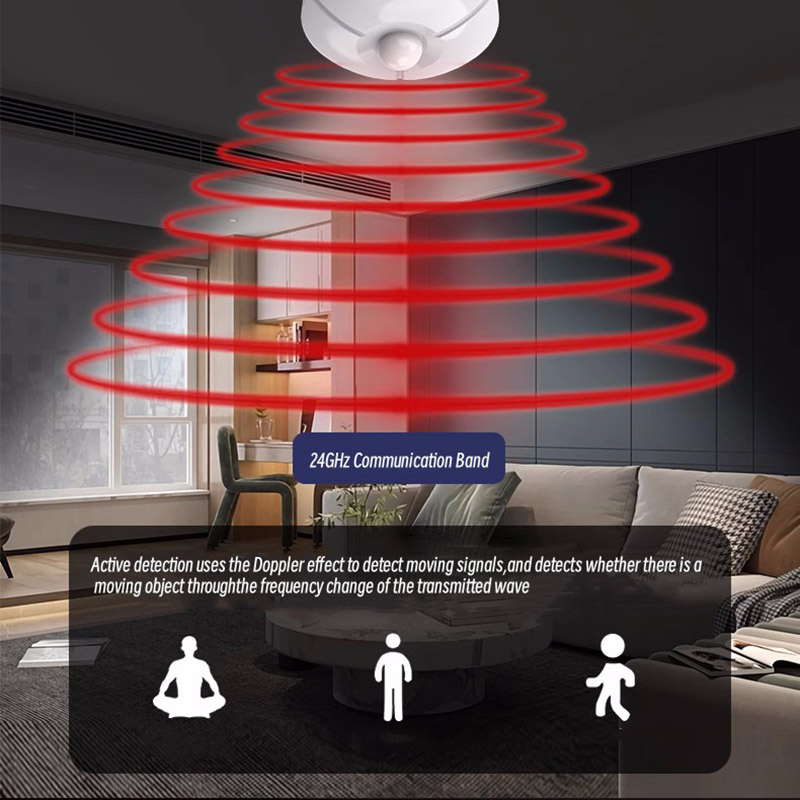

2. Using Doppler effect to detect moving signals, detect whether there is a moving object through the frequency change of the emitted wave, and detect the subtle movements of the human body.
3. Environmental protection flame retardant material, PVC high strength environmental protection material, high temperature resistance is not easy to burn, compressive durability.
4. Ceiling installation, no blind area, easy installation, small physical examination does not take up space;
360° comprehensive prevention, 360° detection, top-down conical space comprehensive prevention.
5. The flash alarm duration can be changed by the jumper cap inside the device. Initial alarm duration Default 5s(10s,30s optional)
Advanced signal analysis and processing technology, provide accurate measurement and control guarantee, if there is a dynamic movement phenomenon, it will produce an alarm.
The product has anti-false alarm function to provide you with a safe guard.
When an intruder passes through the detection area, the detector will automatically detect the movement of the human body in the area.
6.Can provide servers and software, can integrate LORA LORAWAN WIFI 4G GPRS, can view data on mobile phones and PCS.
Application
The detector has a wide range of application, accurate detection, and can be used in various working environments, such as: factory workshops, computer room environments, hotels, shopping malls, etc
Product parameters
|
Product Basic Parameters |
|
| Product name | Anti-theft sensor |
| Power supply | 12V power adapter |
| Power consumption | 0.4W |
| Sensor type | Digital pyrothermal infrared sensor |
| Alarm delay | 5/10/30S output optional (alarm duration) |
| Installation method | Ceiling |
| Installation height | 2.5~6m |
| Detection range | Diameter 6m(installation height 3.6m) |
| Detection Angle | Sector detection 120° |
| Signal output | RS485 |
| Communication protocol | Modbus-RTU |
| Working environment | -40℃~125℃, ≤95%, no condensation |
|
Data Communication system |
|
| Wireless module | GPRS, 4G, LORA , LORAWAN |
| Server and software | Support and can see the real time data in PC directly |
FAQ
Q: What's the main characteristics of this sensor?
A: The product is responsive, accurate anti-false positives, wide coverage and uses a microprocessor
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12V, RS485 output.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol. We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 200m.
Q: What's the lifetime of this Sensor?
A: At least 3 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
