Outdoor Wireless Automatic Industrial Agricultural Cloud Software Data Logger Weather Station
Product Details

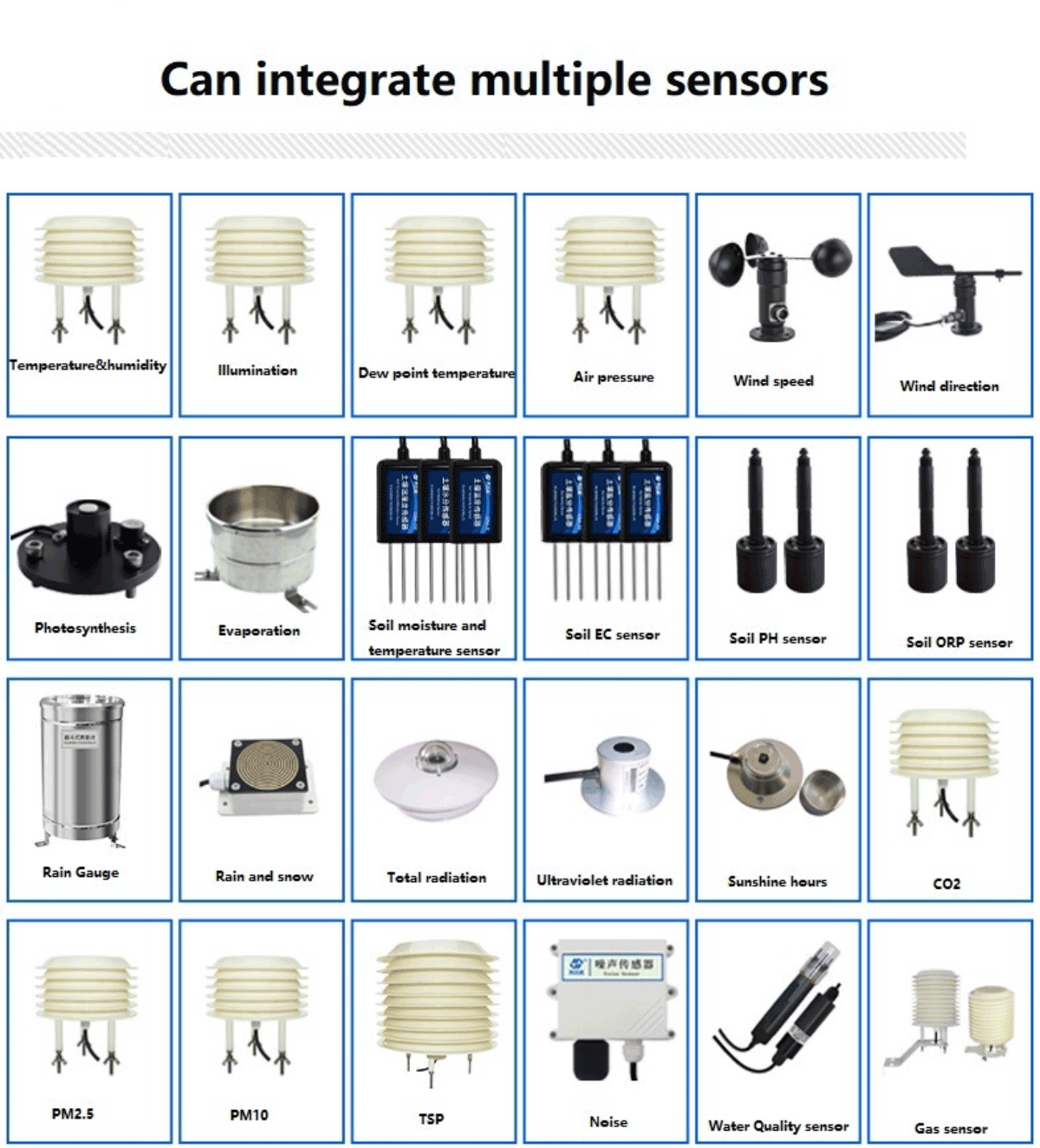

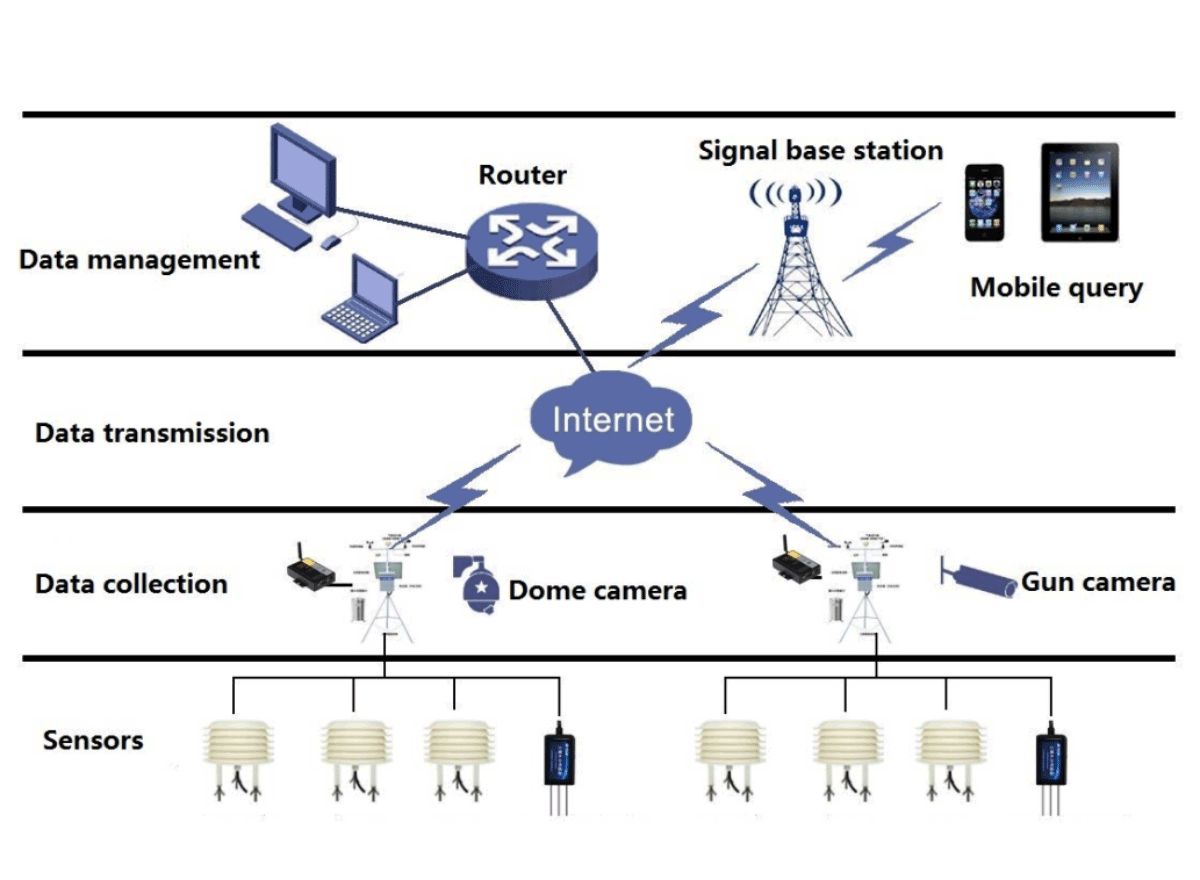

1. Sensors
We can supply almost 26 kinds sensors, please check the following monitoring parameters introduce.
2. Data collection
We can supply the local SD card storage via data logger, or wireless data transmission via data acquisition module.

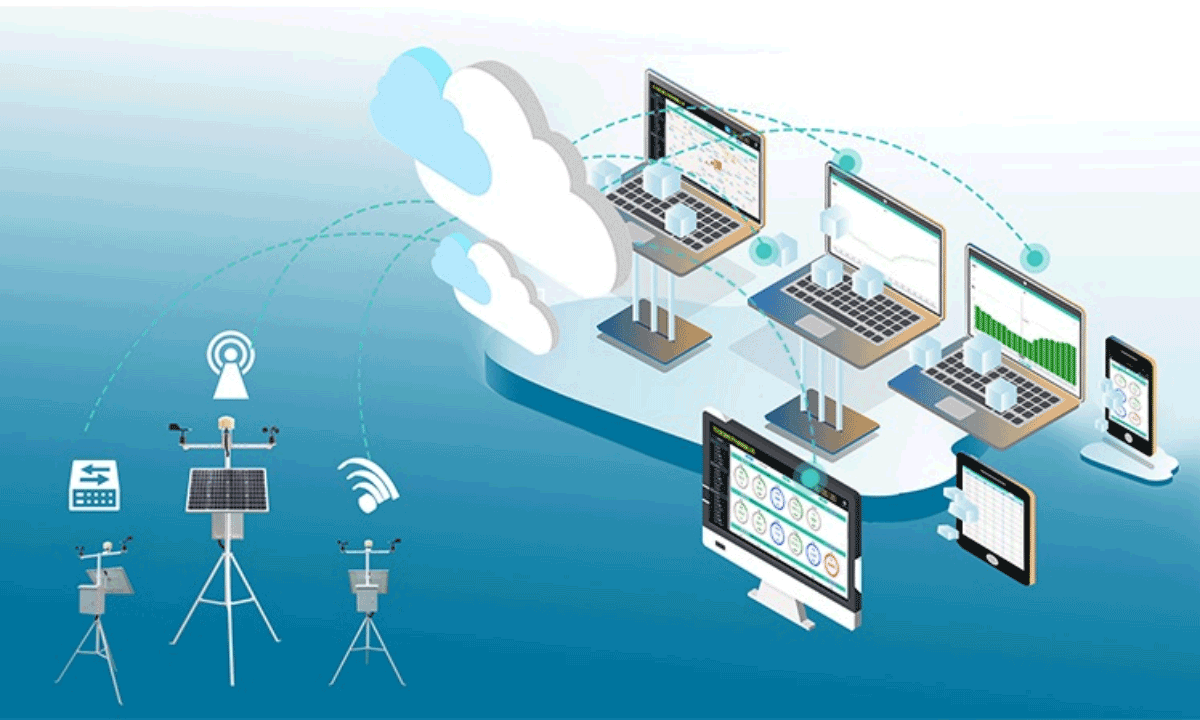

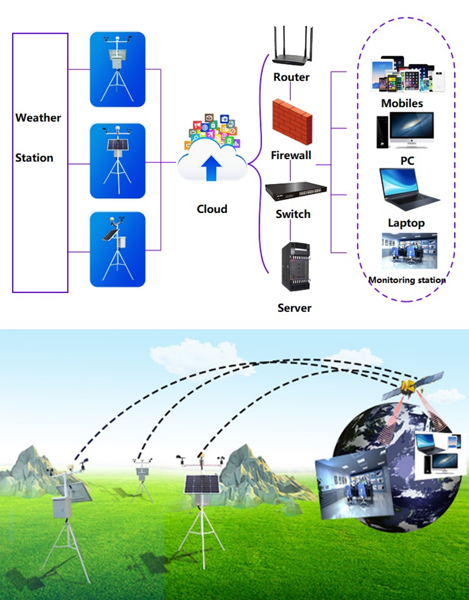

3. Data transmission

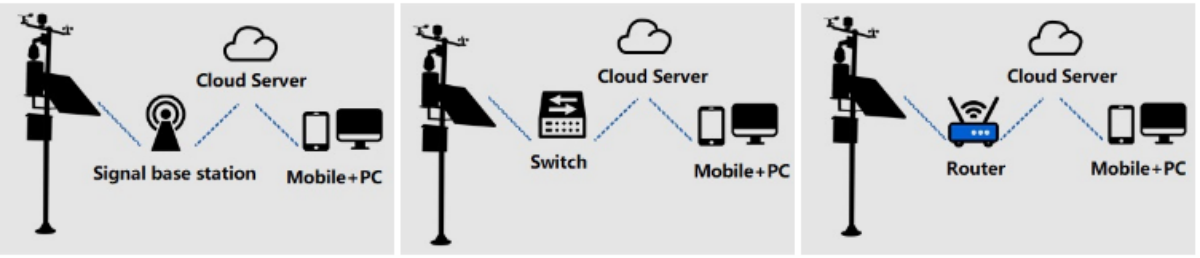

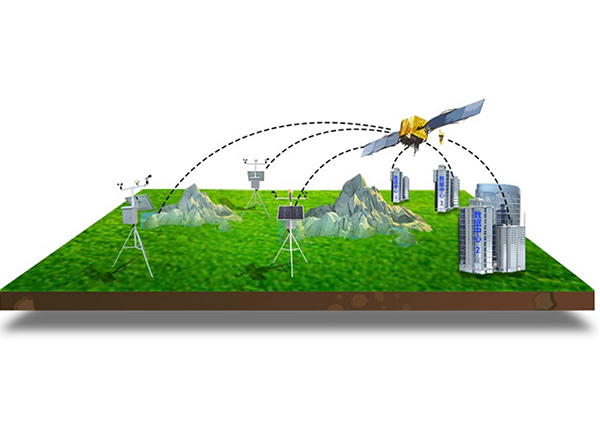

We can supply the RS485 wires transmission and also the LORA/LORAWAN, GPRS, WIFI, NB-IOT to achieve wireless remote transmission

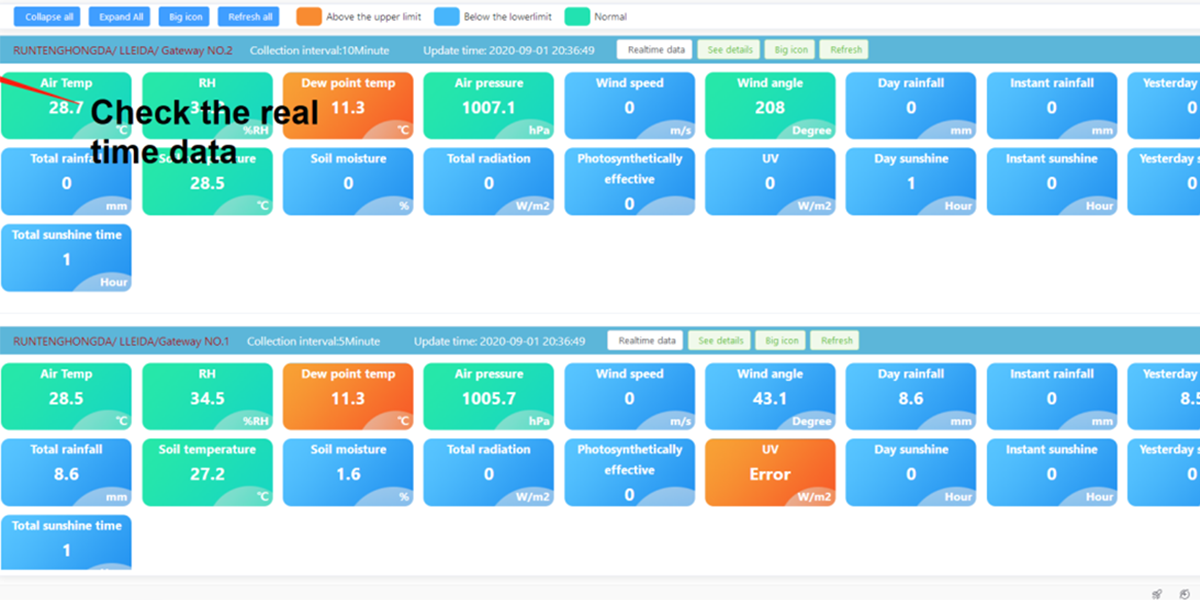

4. Data management
We can supply the cloud platform software services to realize real-time data viewing through a computer or mobile device and we can also provide software platform domain name and company name customization service
5. Camera live monitoring
We can supply the dome camera and the gun camera to realize the 24-hours real-time on-site monitoring.
FREE SERVER AND SOFTWARE
Support various language customization, including English, Spanish, French, German, Portuguese, Vietnamese, Korean, etc.

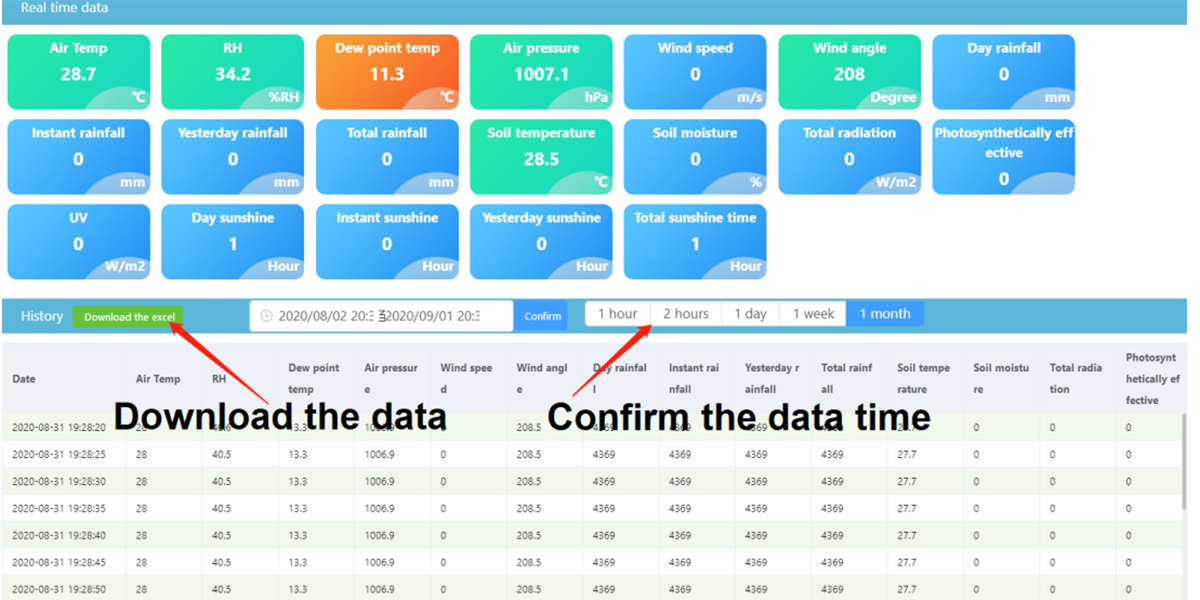

Support download the history data in EXCEL type.
Product Application
It can be widely used for meteorological monitoring in the fields of meteorology, agriculture, forestry, hydrology, schools, warehouses, aquaculture, airfields,atmospheric environment, research bases, etc.
Product Parameters
|
Basic parameters of the sensor |
|||
| Items | Measuring range | Resolution | Accuracy |
| Air Temperature | -30~70℃ | 0.1℃ | ±0.2℃ |
| Air Relative Humidity | 0~100%RH | 0.1%RH | ±3%RH |
| Illumination | 0~200K Lux | 10Lux | ±3%FS |
| Dew point temperature | -100~40℃ | 0.1℃ | ±0.3℃ |
| Air Pressure | 0-1100hpa | 0.1hpa | ±0.1hpa |
| Wind Speed | 0-60m/s | 0.1m/s | ±0.3m/s |
| Wind Direction | 16 directions/360° | 1° | 0.1° |
| Rainfall | 0-4mm/min | 0.1mm | ±2% |
| Rain&Snow | Yes or No | / | / |
| Evaporation | 0~75mm | 0.1mm | ±1% |
| CO2 | 0~5000ppm | 1ppm | ±50ppm+2% |
| NO2 | 0~2ppm | 1ppb | ±2%FS |
| SO2 | 0~2ppm | 1ppb | ±2%FS |
| O3 | 0~2ppm | 1ppb | ±2%FS |
| CO | 0~12.5ppm | 10ppb | ±2%FS |
| Soil Temperature | -30~70℃ | 0.1℃ | ±0.2℃ |
| Soil Moisture | 0~100% | 0.1% | ±2% |
| Soil salinity | 0~20mS/cm | 0.001mS/cm | ±3% |
| Soil PH | 3~9/0~14 | 0.1 | ±0.3 |
| Soil EC | 0~20mS/cm | 0.001mS/cm | ±3% |
| Soil NPK | 0 ~ 1999mg/kg | 1mg/Kg(mg/L) | ±2%FS |
| Total radiation | 0~2000w/m2 | 0.1w/m2 | ±2% |
| Ultraviolet radiation | 0~200w/m2 | 1w/m2 | ±2% |
| Sunshine hours | 0~24h | 0.1h | ±2% |
| Photosynthetic efficiency | 0~2500μmol/m2▪S | 1μmol/m2▪S | ±2% |
| Noise | 30-130dB | 0.1dB | ±3%FS |
| PM2.5 | 0~1000μg/m3 | 1μg/m3 | ±3%FS |
| PM10 | 0~1000μg/m3 | 1μg/m3 | ±3%FS |
| PM100/TSP | 0~20000μg/m3 | 1μg/m3 | ±3%FS |
| Data Acquisition and transmission | |||
| Collector host | Used to integrate all kinds sensor data | ||
| Datalogger | Store local data by SD card | ||
| Wireless transmission module | We can provide GPRS / LORA / LORAWAN / WIFI and other wireless transmission modules | ||
| Power supply system | |||
| Solar panels | 50W | ||
| Controller | Matched with the solar system to control the charge and discharge | ||
| Battery box | Place the battery to ensure that the battery is not affected by high and low temperature environments | ||
| Battery | Due to transportation restrictions, it is recommended to buy a 12AH large-capacity battery from the local area to ensure that it can work normally in
rainy weather for more than 7 consecutive days. |
||
| Mounting Accessories | |||
| Removable tripod | Tripods are available in 2m and 2.5m, or other custom sizes, available in iron paint and stainless steel, easy to disassemble and install, easy to move. | ||
| Vertical pole | Vertical poles are available in 2m, 2.5m, 3m, 5m, 6m, and 10m, and are made of iron paint and stainless steel, and are equipped with fixed installation accessories such as ground cage. | ||
| Instrument case | Used to place the controller and wireless transmission system, can achieve IP68 waterproof rating | ||
| Install base | Can supply the ground cage to fix the pole in the ground by the cement. | ||
| Cross arm and accessories | Can supply the cross arms and accessories for the sensors | ||
| Other optional accessories | |||
| Pole drawstrings | Can supply 3 drawstrings to fix the stand pole | ||
| Lightning rod system | Suitable for places or weather with heavy thunderstorms | ||
| LED display Screen | 3 rows and 6 columns, display area: 48cm * 96cm | ||
| Touch screen | 7 inch | ||
| Surveillance cameras | Can provide spherical or gun-type cameras to achieve 24 hours a day monitoring | ||
FAQ
Q: Which parameters can this set of weather station(meteorological station) measure?
A: It can measure above 29 meteorological parameters and the others if you need and all of above can be freely customized according to requirements.
Q: Can you provide technical support?
A:Yes, we usually will provide remote technical support for after-sale service via email, phone, video call, etc.
Q: Can you provide service like installation and training for tender requirements?
A: Yes, if needed, we can dispatch our professional technicians to install and make training at your local place. We have related experience before.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: How can I read data if we do not have our own system?
A: First, you can read data on he LDC screen of data logger. Second, you can check from our website or download data directly.
Q: Can you supply the data logger?
A:Yes, we can supply the matched data logger and screen to show the realtime data and also store the data in excel format in the U disk.
Q: Can you supply the cloud server and the software?
A: Yes, if you buy our wireless modules, we can supply the free server and software for you, in the software, you can see the real time data and also can download the history data in the excel format.
Q: Can you software support different language?
A: Yes, our system support various language customization, including English, Spanish, French, German, Portuguese, Vietnamese, Korean, etc.
Q: How can I get the quotation?
A: You can send the inquiry in the bottom of this page or contact us from the following contact information.
Q: What's the main characteristics of this weather station?
A: It is easy for installation and has robust & integrated structure, , 7/24 continuous monitoring.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Do you supply tripod and solar panels?
A: Yes, we can supply the stand pole and the tripod and the other install accessories, also the solar panels, it is optional.
Q: What’s the common power supply and signal output?
A: Basically ac220v, also can use solar panel as power supply, but battery not supplied because of strict international transportation requirement.
Q: What’s the standard cable length?
A: Its standard length is 3m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this weather station?
A: At least 5 years long.
Q: May I know your warranty?
A: Yes,usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 5-10 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart street light, smart city,industrial park and mines, etc. Just send us inquiry in the bottom or contact Marvin to know more, or get the latest catalogue and competitive quotation.
