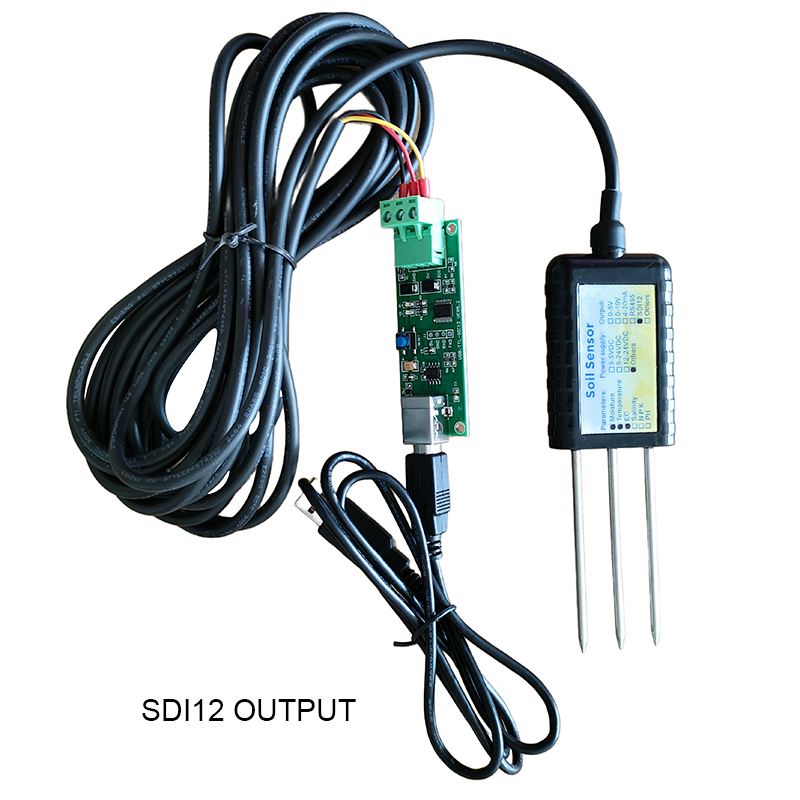

In the field of smart agriculture, the compatibility of sensors and the efficiency of data transmission are the core elements for building a precise monitoring system. The soil sensor output by SDI12, with a standardized digital communication protocol at its core, creates a new generation of soil monitoring equipment featuring “high-precision monitoring + convenient integration + stable transmission”, providing reliable data support for scenarios such as smart farmland, intelligent greenhouses, and scientific research monitoring, and redefining the technical standards of soil sensing.
1. SDI12 Protocol: Why Is It the “Universal Language” of Agricultural Internet of Things?
SDI12 (Serial Digital Interface 12) is an internationally recognized communication protocol for environmental sensors, specifically designed for low-power consumption and multi-device networking scenarios, and has three core advantages:
Standardized interconnection: A unified communication protocol breaks down device barriers and can be seamlessly integrated with mainstream data collectors (such as Campbell, HOBO) and Internet of Things platforms (such as Alibaba Cloud, Tencent Cloud), eliminating the need for additional driver development and reducing system integration costs by over 30%.
Low power consumption and high efficiency transmission: It adopts asynchronous serial communication and supports “master-slave mode” multi-device networking (up to 100 sensors can be connected on A single bus), with communication power consumption as low as the μA level, making it suitable for field monitoring scenarios powered by solar energy.
Strong anti-interference ability: The differential signal transmission design effectively suppresses electromagnetic interference. Even near high-voltage power grids and communication base stations, the data transmission accuracy rate still reaches 99.9%.
2. Core Monitoring capability: Soil “Stethoscope” with multi-parameter fusion
The soil sensor developed based on the SDI12 protocol can flexibly configure monitoring parameters according to requirements to achieve full-dimensional perception of the soil environment:
(1) Basic five-parameter combination
Soil moisture: The frequency-domain reflection method (FDR) is adopted, with a measurement range of 0-100% volume moisture content, an accuracy of ±3%, and a response time of less than 1 second.
Soil temperature: Equipped with a built-in PT1000 temperature sensor, the temperature measurement range is -40 ℃ to 85℃, with an accuracy of ±0.5℃, capable of real-time monitoring of temperature changes in the root layer.
Soil electrical conductivity (EC) : Assess soil salt content (0-20 dS/m), with an accuracy of ±5%, to warn of the risk of salinization;
Soil pH value: Measurement range 3-12, accuracy ±0.1, guiding the improvement of acidic/alkaline soil;
Atmospheric temperature and humidity: Simultaneously monitor environmental climatic factors to assist in the analysis of soil-atmosphere water and heat exchange.
(2) Advanced function expansion
Nutrient monitoring: Optional nitrogen (N), phosphorus (P), and potassium (K) ion electrodes are available to track the concentration of available nutrients (such as NO₃⁻-N, PO₄³⁻-P) in real time, with an accuracy of ±8%.
Heavy metal detection: For scientific research scenarios, it can integrate heavy metal sensors such as lead (Pb) and cadmium (Cd), with a resolution reaching the ppb level.
Crop physiological monitoring: By integrating stem fluid flow sensors and leaf surface humidity sensors, a continuous monitoring chain of “soil – crops – atmosphere” is constructed.
3. Hardware design: Industrial-grade quality to handle complex environments
Durability innovation
Shell material: Aerospace-grade aluminum alloy + polytetrafluoroethylene (PTFE) probe, resistant to acid and alkali corrosion (pH 1-14), resistant to soil microbial degradation, with a buried service life of over 8 years.
Protection grade: IP68 waterproof and dustproof, capable of withstanding immersion in a depth of 1 meter for 72 hours, suitable for extreme weather conditions such as heavy rain and floods.
(2) Low-power architecture
Sleep wake-up mechanism: Supports timed collection (such as once every 10 minutes) and event-triggered collection (such as active reporting when there is A sudden change in humidity), standby power consumption is less than 50μA, and it can work continuously for 12 months when paired with a 5Ah lithium battery.
Solar power supply solution: Optional 5W solar panels + charging management module are available to achieve “zero maintenance” long-term monitoring in areas with abundant sunlight.
(3) Installation flexibility
Plug-and-pull design: The probe and the main unit can be separated, supporting in-situ replacement of the sensor module without the need to re-bury the cable.
Multi-depth deployment: It provides probes of different lengths such as 10cm, 20cm, and 30cm to meet the monitoring requirements of root distribution at different growth stages of crops (such as shallow layer measurement during the seedling stage and deep layer measurement during the mature stage).
4. Typical application scenarios
Smart farmland management
Precision irrigation: Soil moisture data is transmitted to the intelligent irrigation controller through the SDI12 protocol to achieve “humidity threshold triggered irrigation” (such as automatically starting drip irrigation when it drops below 40% and stopping when it reaches 60%), with a water-saving rate of 40%.
Variable fertilization: By combining EC and nutrient data, the fertilization machinery is guided to operate in different zones through prescription diagrams (such as reducing the amount of chemical fertilizer in high-salt areas and increasing the application of urea in low-nitrogen areas), and the fertilizer utilization rate is increased by 25%.
(2) Scientific research monitoring network
Long-term ecological research: Multi-parameter SDI12 sensors are deployed at national-level farmland quality monitoring stations to collect soil data at hourly frequencies. The data is encrypted and transmitted to the scientific research database via VPN to support research on climate change and soil degradation.
Pot control experiment: An SDI12 sensor network was constructed in a greenhouse to precisely control the soil environment of each pot of plants (such as setting different pH gradients), and the data was synchronized to the laboratory management system, reducing the experimental cycle by 30%.
(3) Integration of facility agriculture
Intelligent greenhouse linkage: Connect the SDI12 sensor to the greenhouse central control system. When the soil temperature exceeds 35℃ and the humidity is less than 30%, it will automatically trigger the fan water curtain cooling and drip irrigation water replenishment, achieving a closed-loop control of “data – decision-making – execution”.
Soilless cultivation monitoring: In hydroponic/substrate cultivation scenarios, the EC value and pH value of the nutrient solution are monitored in real time, and the acid-base neutralizer and nutrient addition pump are automatically adjusted to ensure that the crops are in the best growth environment.
5. Technical Comparison: SDI12 vs. Traditional Analog Signal Sensor
|
Dimension traditional analog signal sensor |
SDI12 digital sensor | ||
| The data accuracy is easily affected by the cable length and electromagnetic interference, with an error of ±5% to 8% | Digital signal transmission, with an error of ±1%-3%, features high long-term stability | ||
| The system integration requires customizing the signal conditioning module, and the development cost is high | Plug and play, compatible with mainstream collectors and platforms | ||
| The networking capability allows a single bus to connect up to 5 to 10 devices at most | A single bus supports 100 devices and is compatible with tree/star topologies | ||
| Power consumption performance: Continuous power supply, power consumption > 1mA | The dormant power consumption is less than 50μA, making it suitable for battery/solar power supply | ||
| The maintenance cost requires calibration 1 to 2 times a year, and the cables are prone to aging and damage | It is equipped with an internal self-calibration algorithm, eliminating the need for calibration during its service life and reducing cable replacement costs by 70% |
6. User Testimonies: The Leap from “Data Silos” to “Efficient Collaboration”
A provincial agricultural academy said, “In the past, analog sensors were used. For each monitoring point deployed, a separate communication module had to be developed, and the debugging alone took two months.” After switching to the SDI12 sensor, the networking of 50 points was completed within one week, and the data was directly connected to the scientific research platform, significantly improving the research efficiency.
In a water-saving agricultural demonstration area in Northwest China: “By integrating the SDI12 sensor with the intelligent gate, we have achieved automatic water distribution to households based on soil moisture conditions. Previously, manual channel inspections were conducted twice a day, but now they can be monitored on mobile phones. The water-saving rate has increased from 30% to 45%, and the irrigation cost per mu for farmers has decreased by 80 yuan.”
Initiate a new data infrastructure for precision agriculture
The soil sensor output by SDI12 is not only a monitoring device but also the data “infrastructure” of smart agriculture. It breaks down the barriers between equipment and systems with standardized protocols, supports scientific decision-making with high-precision data, and ADAPTS to long-term field monitoring with low-power design. Whether it is the efficiency improvement of large-scale farms or the cutting-edge exploration of scientific research institutions, it can lay a solid foundation for the soil monitoring network, making every piece of data a driving force for agricultural modernization.
Contact us immediately: Tel: +86-15210548582, Email: info@hondetech.com or click www.hondetechco.com for the SDI12 Sensor networking guide to make your monitoring system smarter, more reliable and more scalable!
Digital signal transmission, with an error of ±1%-3%, features high long-term stability
