Narrow Beam Wireless Gprs 4G Wifi Lora Lorawan Ultrasonic Water Level Sensor
Feature
1. Not contaminated by the measuring object, can be applicable to various fields such as acid,alkali, salt, anti-corrosion.
2. Low power supply and power consume, can integrate solar power in the field.
3. Circuit modules and components adopt high-precision industrial-grade standards, which are stable and reliable.
4. Embedded ultrasonic echo analysis algorithm, with dynamic analysis thinking, can be used without debugging.
5. It can integrate GPRS/4G/WIFI/LORA/LORAWA wireless module.
6. We can send free cloud server and software to see real time data in PC or Mobile.
Measure Principle
Installation Instructions
NOTE：
within the beam angle range, otherwise the accuracy will be affected. Generally, it is necessary to ensure that there is no obstacle within a one-meter radius of the installation, the beam angle range is referenced as follows:
Product Application
Rice field water level, oil level, other agricultural or industrial needs to measure liquid level, etc.

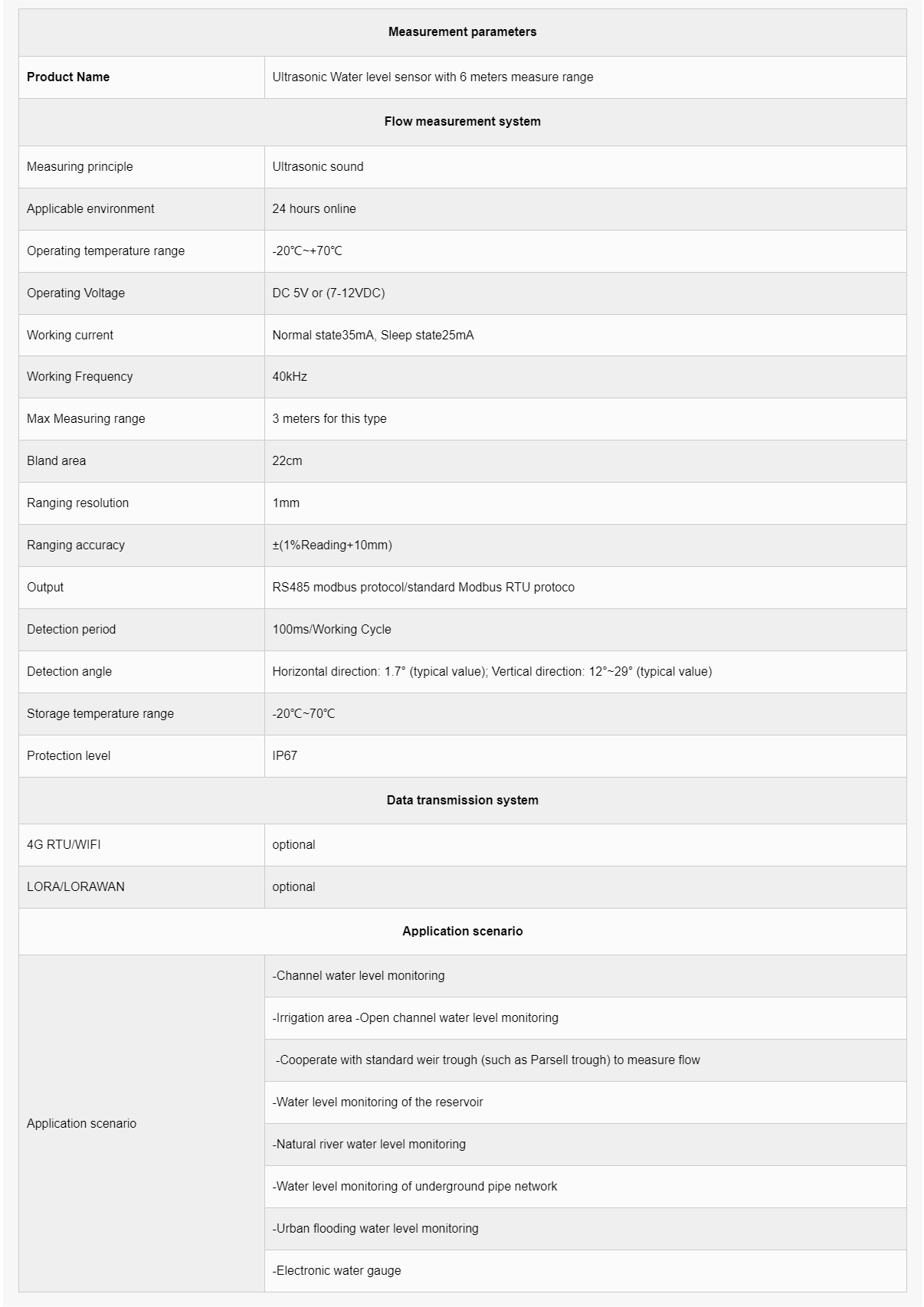

Product Parameters
FAQ
Q: What's the main characteristics of this ultrasonic water level sensor?
A: It is easy for using and can measure the water level for the river open channel and Urban underground drainage pipe network so on.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A:It is 5 VDC power supply or 7-12 VDC power supply and this type signal output is RS485 output with the modbus protocol.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the
RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module and the data logger if you need.
Q: Can you supply the matched cloud server and software ?
Yes, we can supply the matched server and software to see the real time data in PC and you can also download the data in excel type.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
