MINI Air Temperature Humidity Sensor
Video

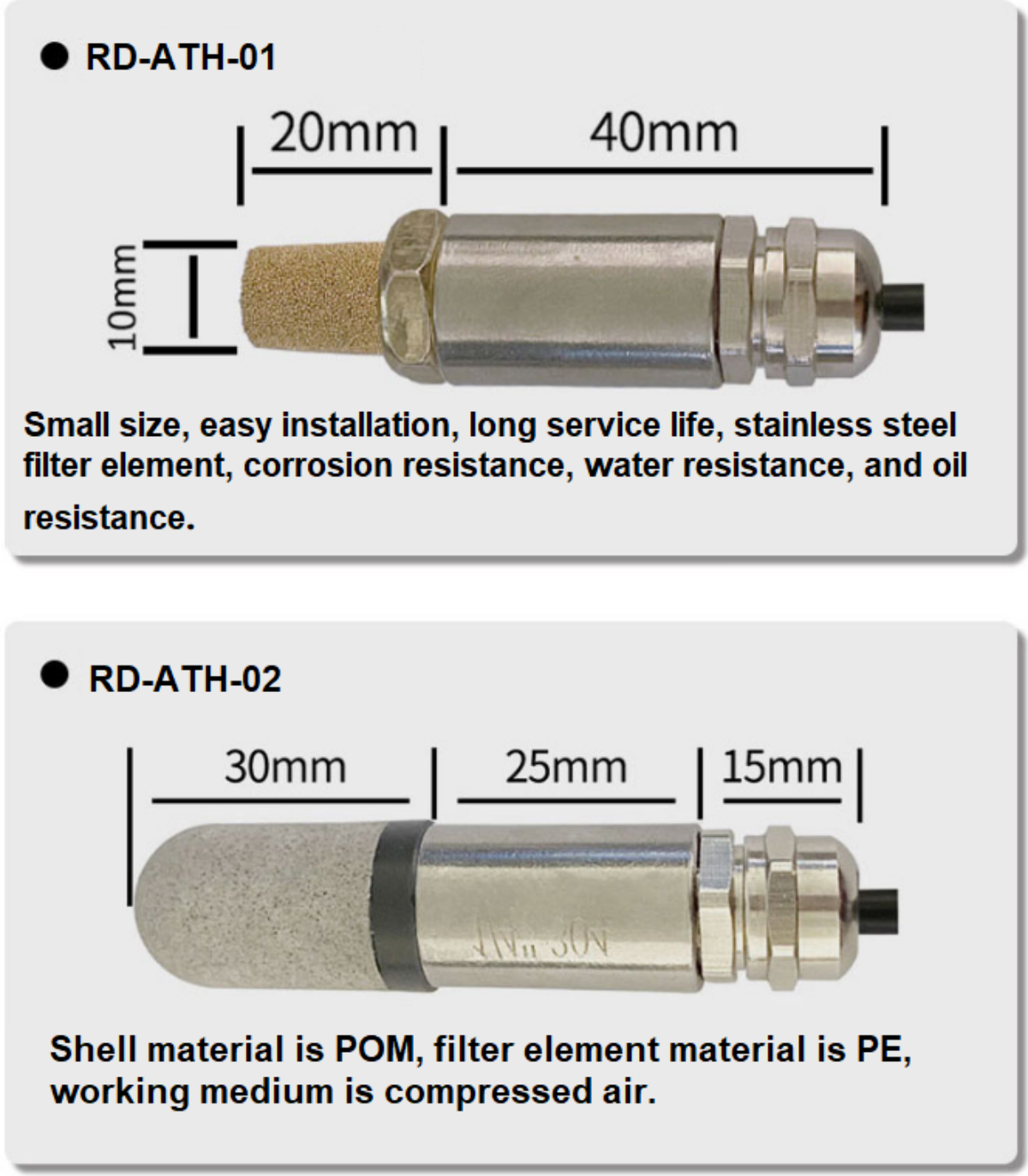

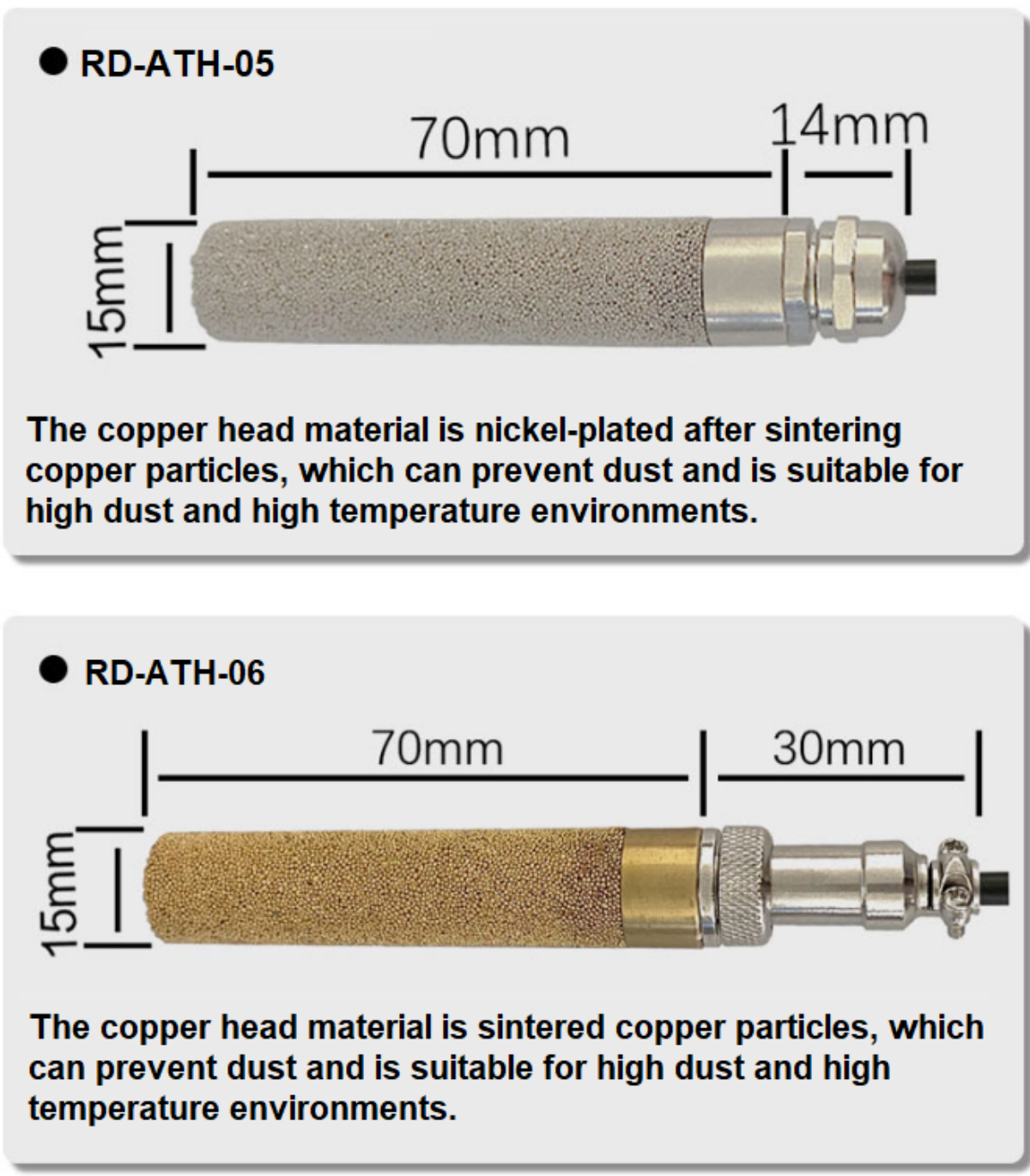

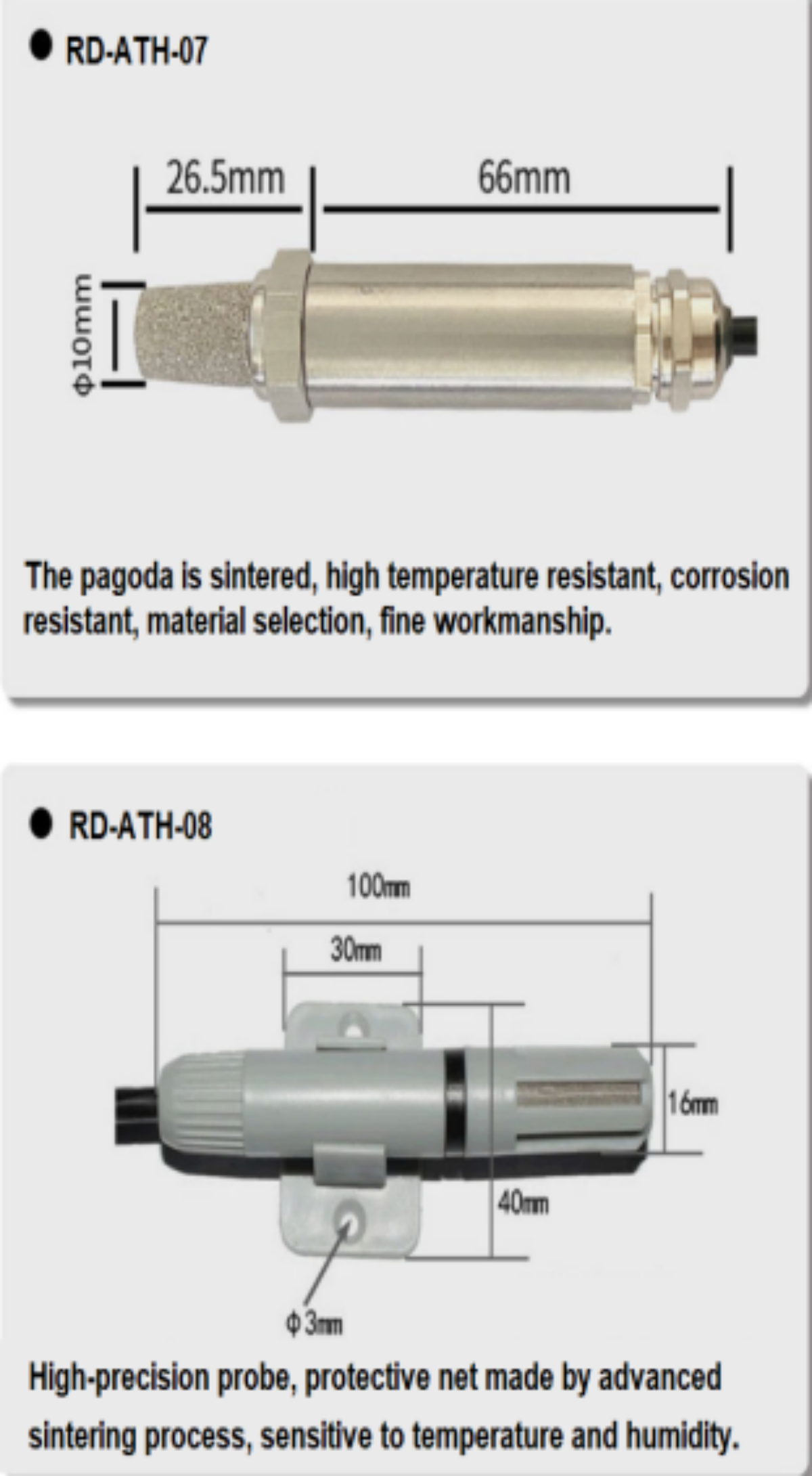

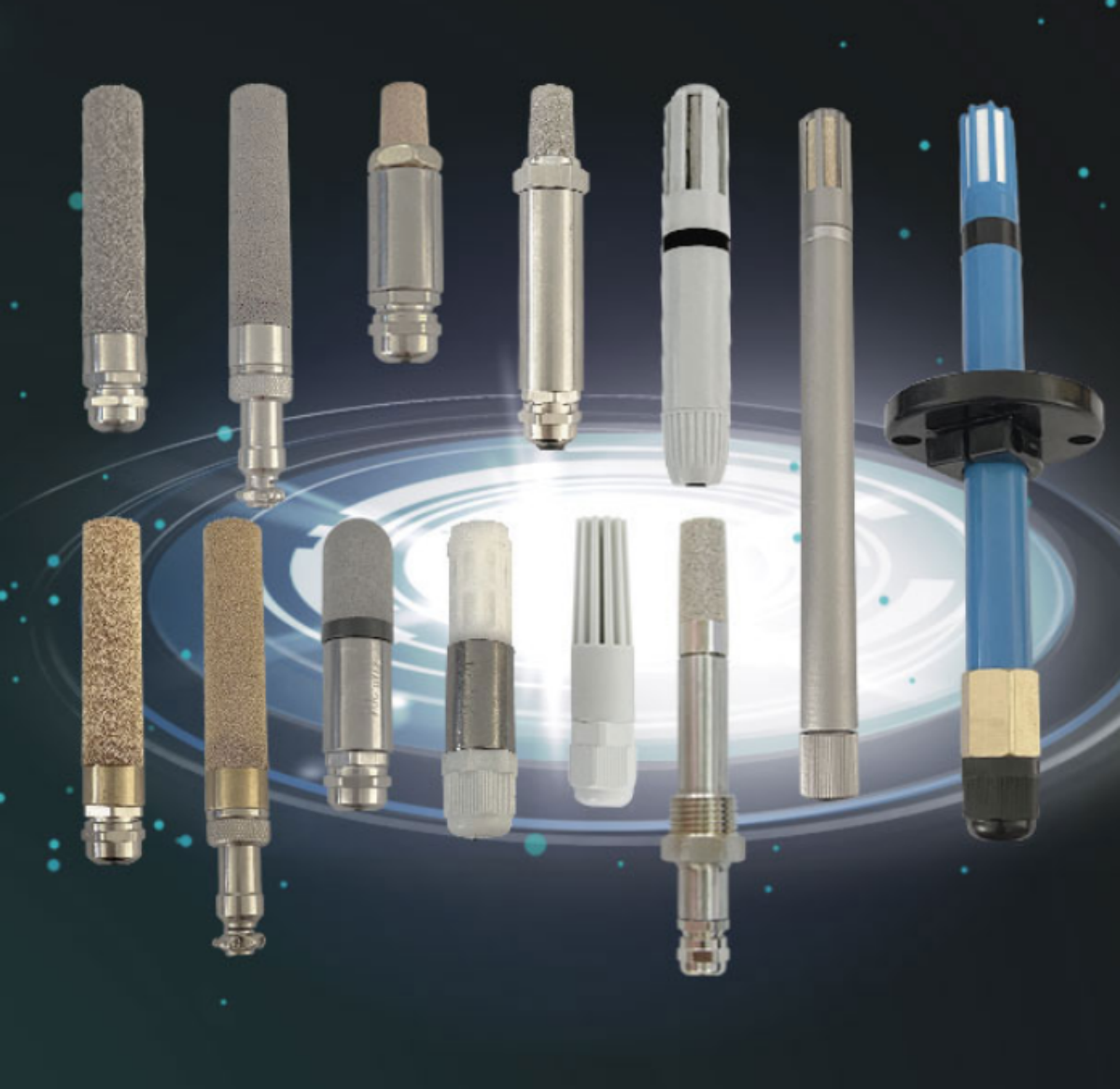

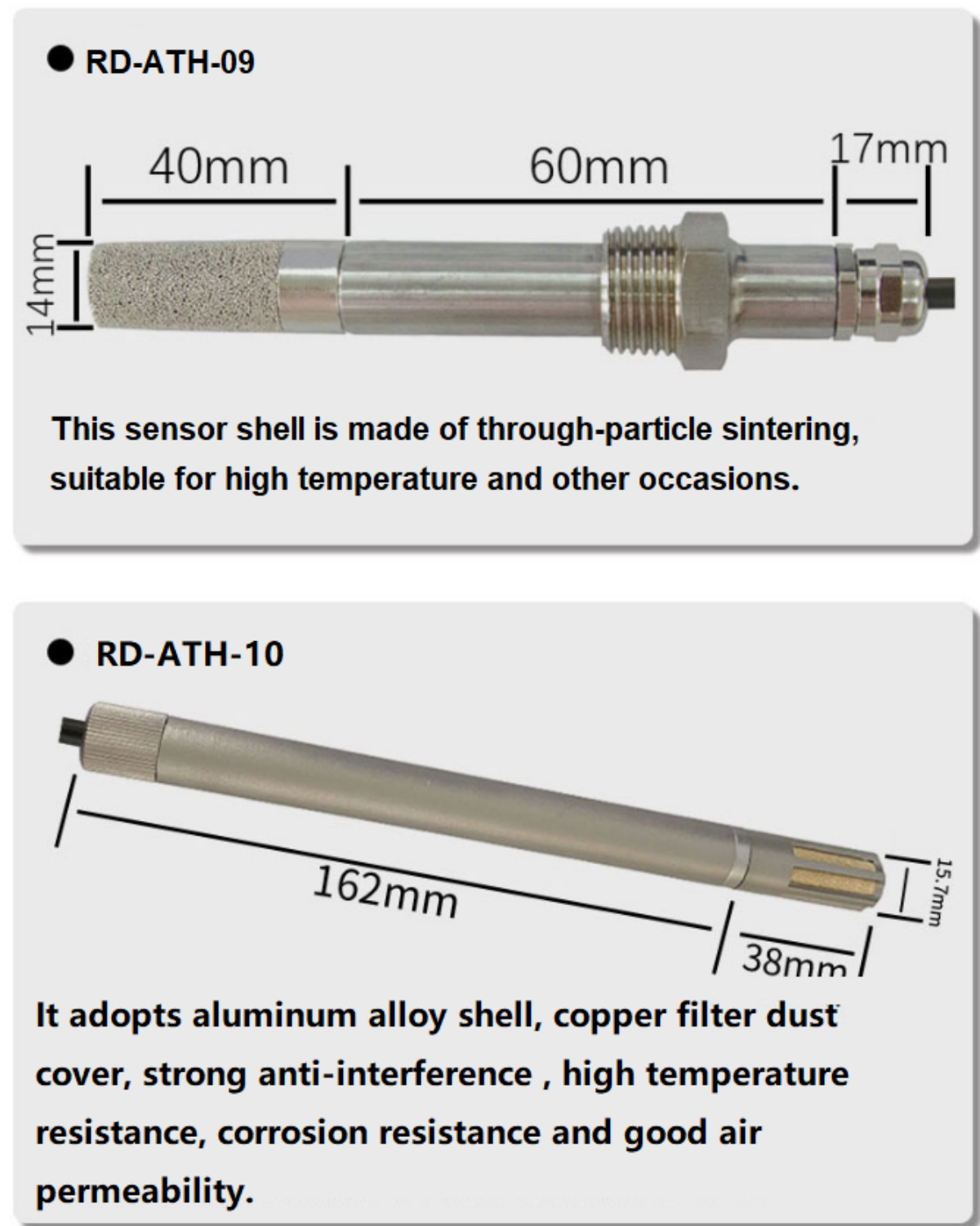

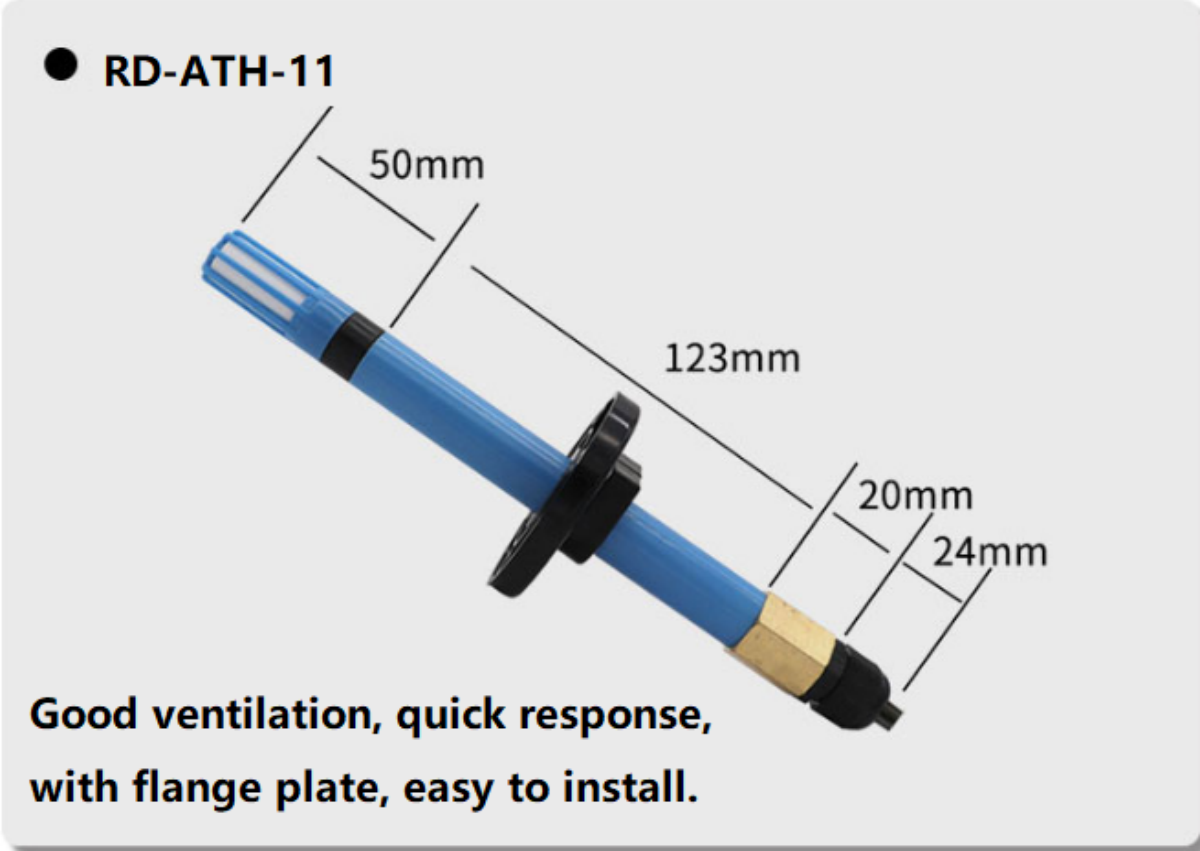

Air temperature and humidity probe series
We can provide sensors with good air permeability, good water resistance, dust resistance, high temperature resistance, etc., which are suitable for various occasions. Please check the following sensors introduce and tell us the type number you need.

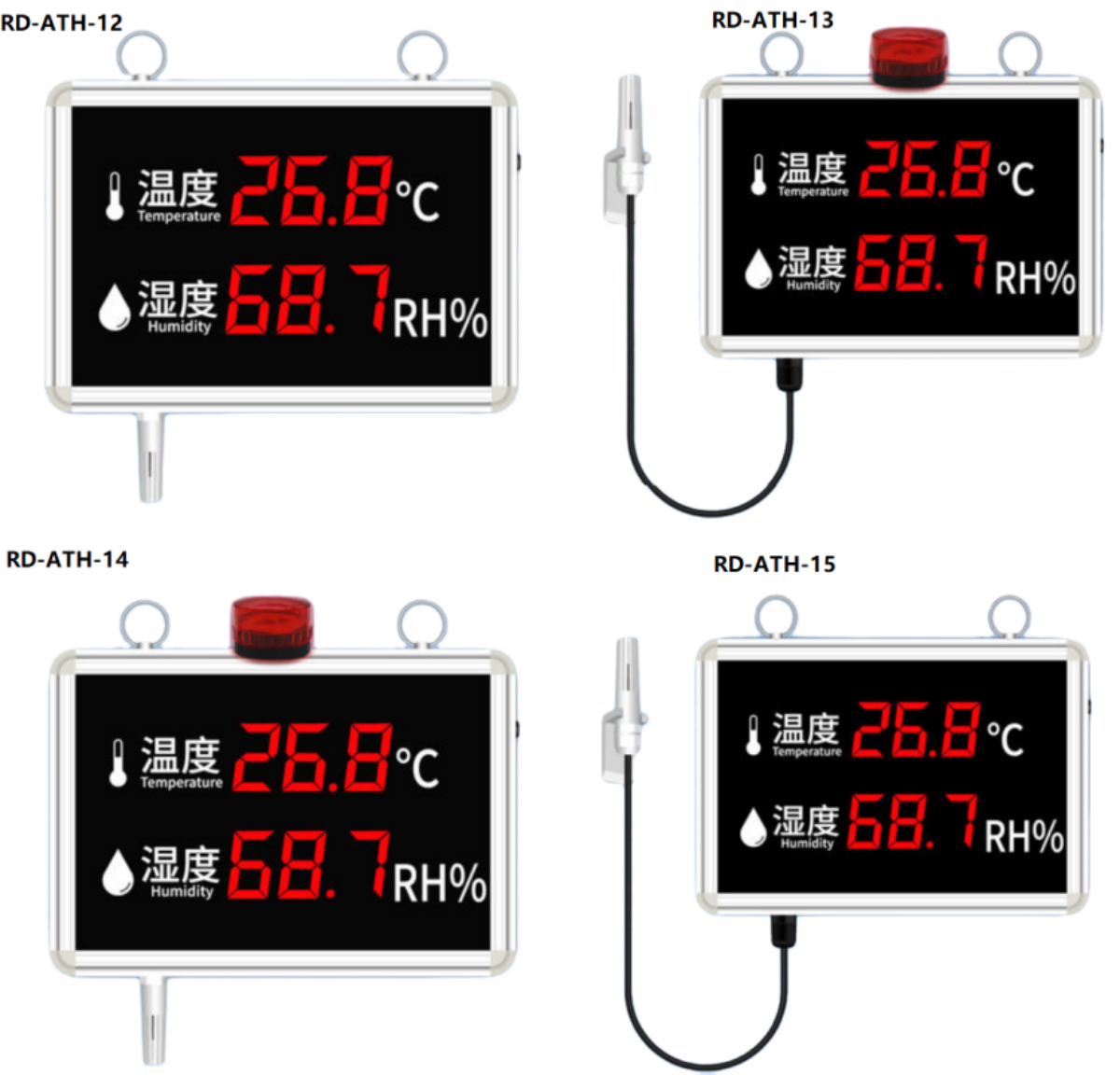

LED screen series
We can provide two forms of built-in camera and external camera. At the same time, we can provide sound and light alarm, and provide real-time data display and monitoring on site.
Wireless Air temperature and humidity series sensors
We can supply all kinds wireless modules including the GPRS/4G/WIFI/LORA/LORAWAN to suitable all kinds requirements.

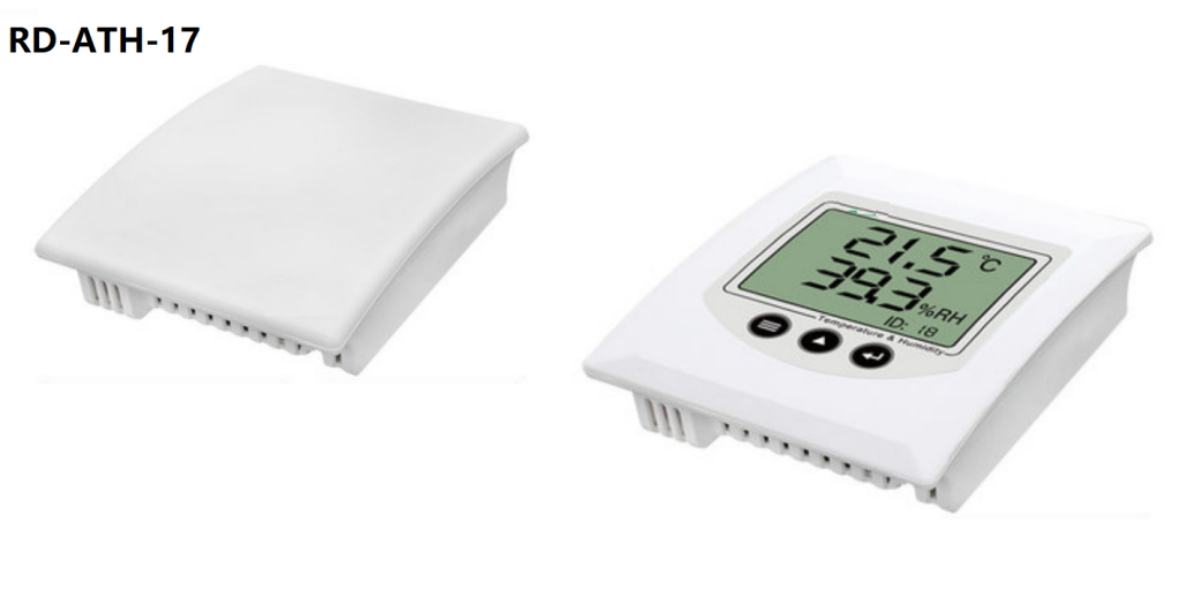

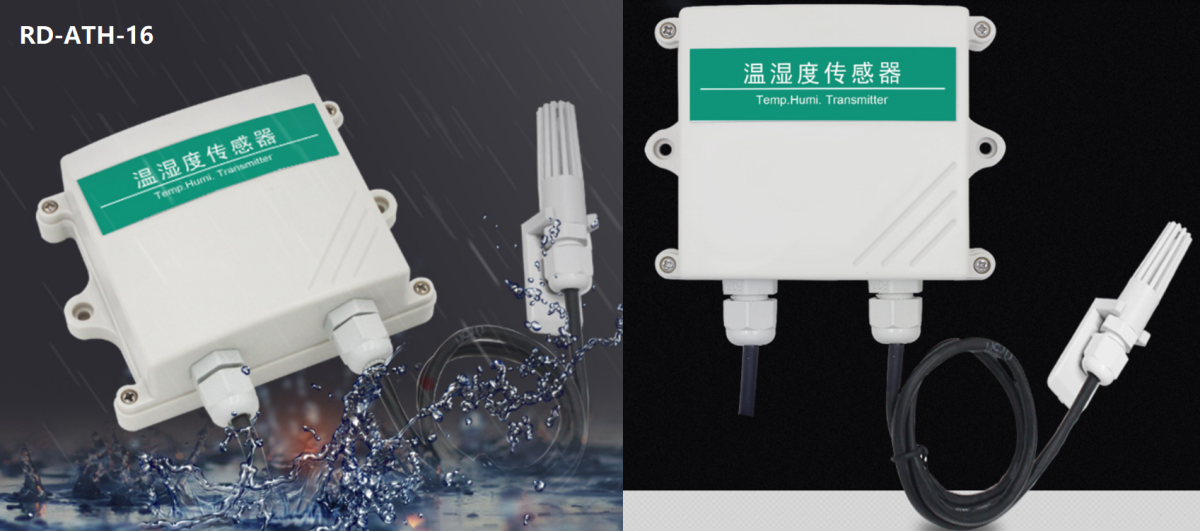

Ceiling installation or wall mounted series
We can provide ceiling-mounted installation series, including with and without screen, easy to install and beautiful.

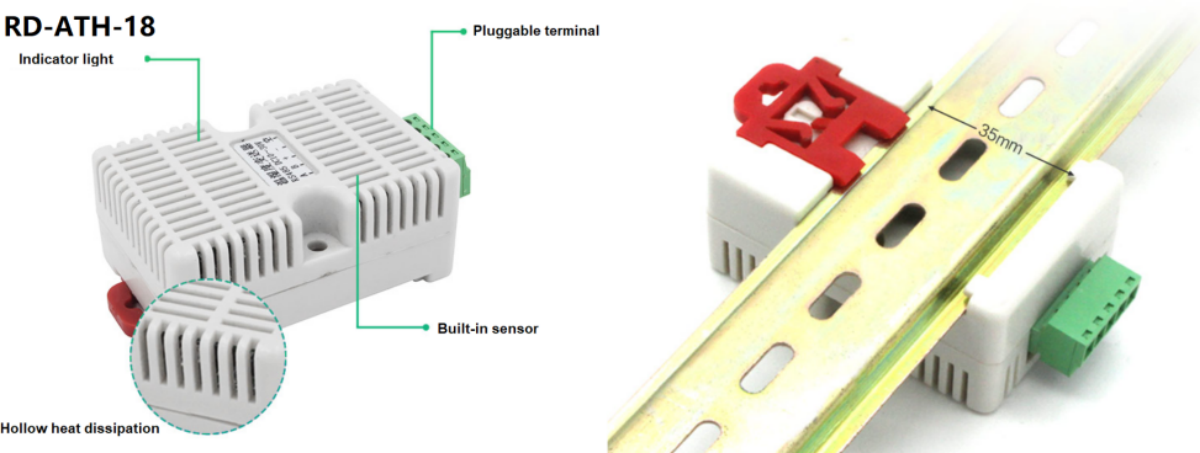

Slide rail installation series
We provide sliding rail mounting sensors, which have good ventilation and easy installation.

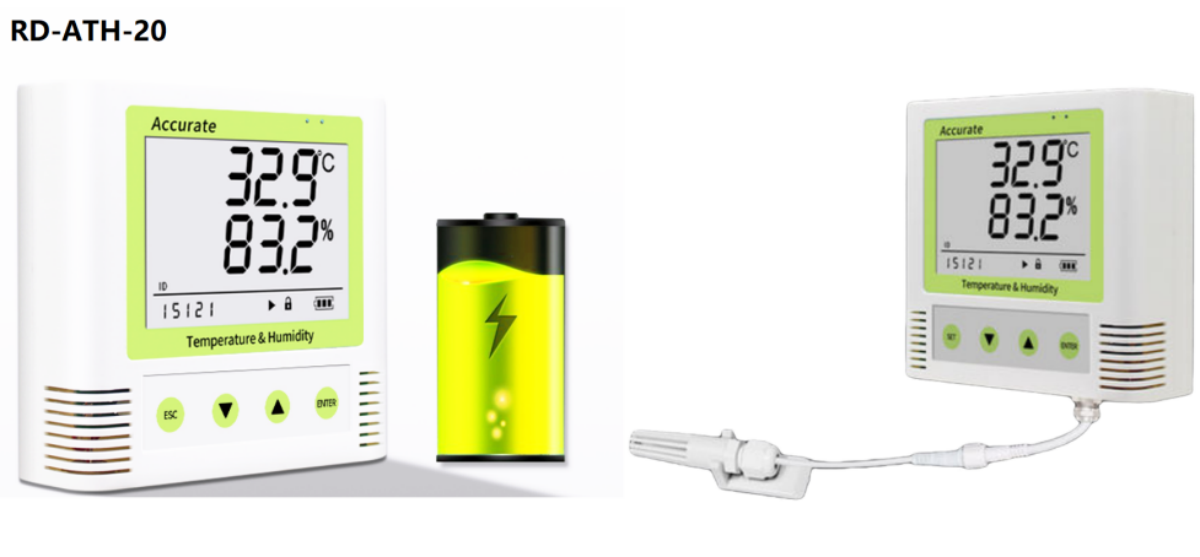

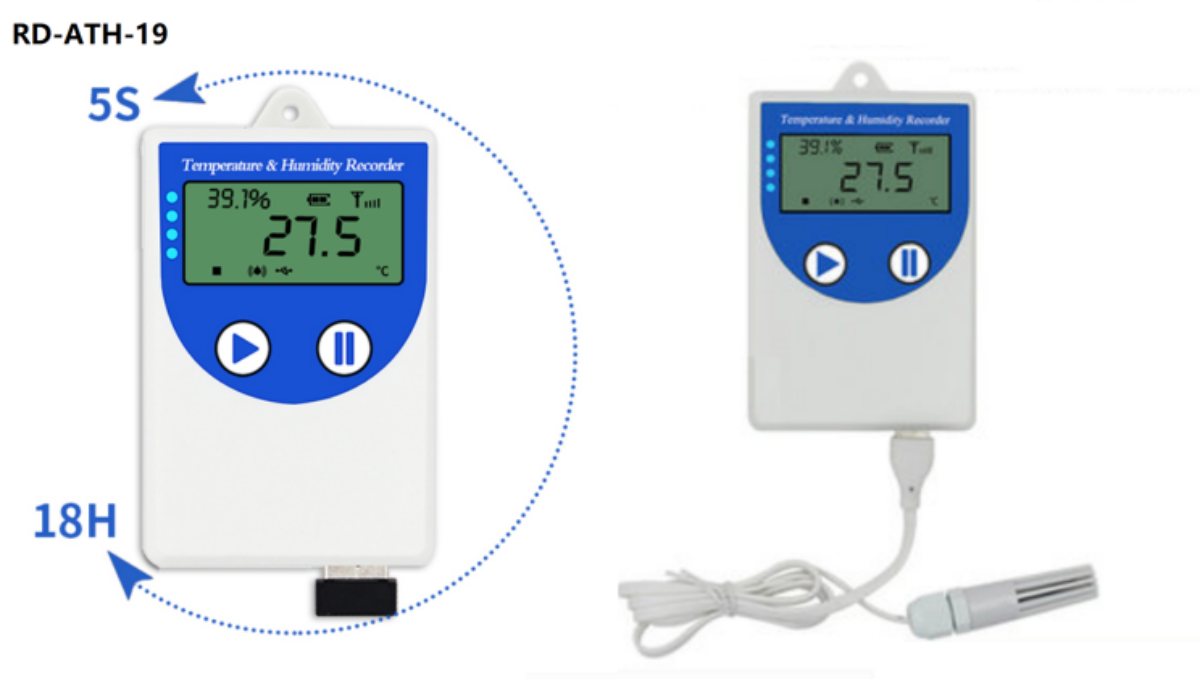

Screen and data logger with rechargeable battery series
We can supply the screen and the data logger type which can store the data in the U disk in excel format. We can also supply the rechargeable battery type.

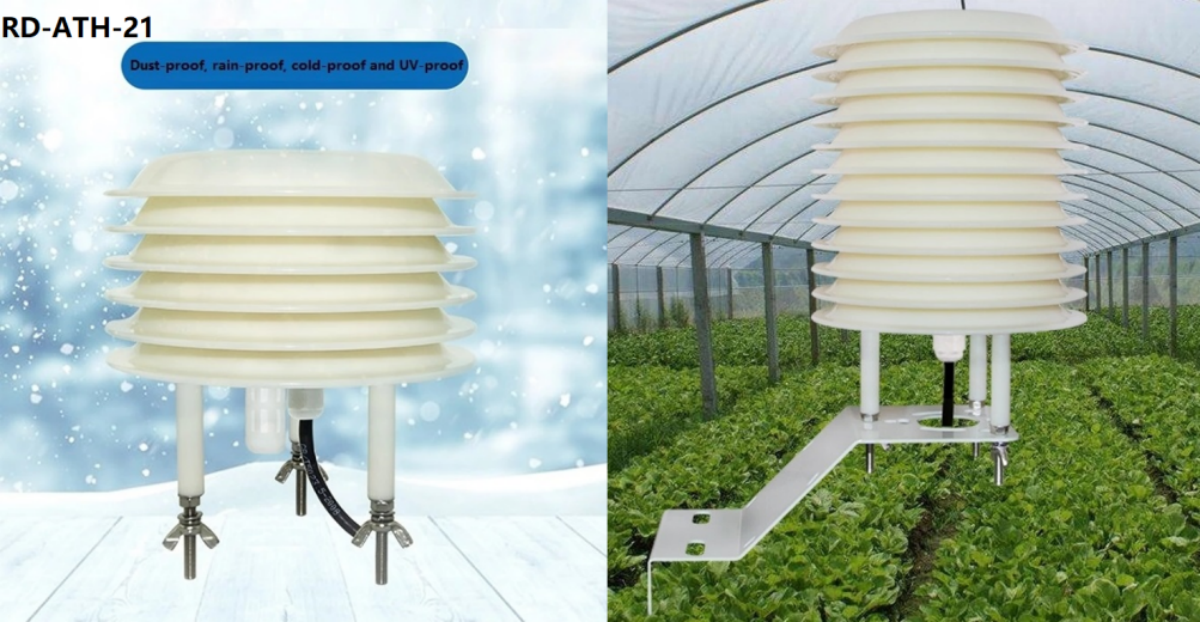

Louver shield box type
We can supply the Louver shield box type which can be waterproof and UV protection.
Product advantages

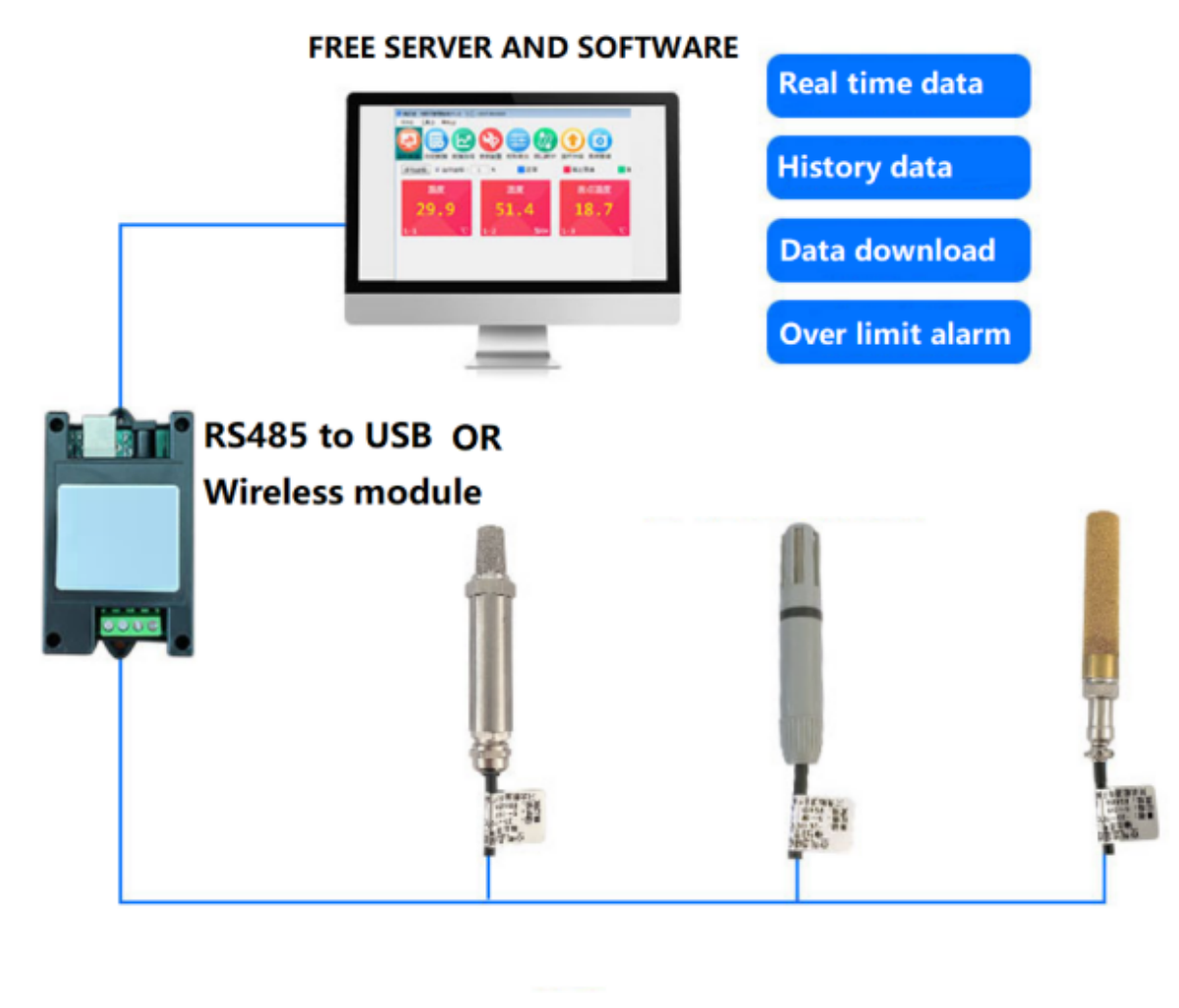

We send free server and software
We send the free server and software if you buy our wireless modules which you can see the real time data and download the history data in the PC end or mobile end.
Product application
Application field
Temperature and humidity sensors are mainly used in various industrial and living fields, such as medical care, meteorology, environmental protection, construction, agriculture, etc.
Product parameters
|
Measurement parameters |
|||
| Parameters name | Air temperature and humidity 2 IN 1 sensor | ||
| Parameters | Measure range | Resolution | Accurancy |
| Air temperature | -40-120℃ | 0.1℃ | ±0.2℃（25℃） |
| Air relative humidity | 0-100%RH | 0.1% | ±3%RH |
|
Technical parameter |
|||
| Stability | Less than 1% during the life of the sensor | ||
| Response time | Less than 1 second | ||
| Working current | 85mA@5V,50mA@12V,40mA@24V | ||
| Output | RS485( Modbus protocol), 0-5V,0-10V,4-20mA | ||
| Housing material | Copper sintering /Stainless steel /ABS | ||
| Working environment | Temperature -30 ～ 70 ℃, working humidity: 0-100% | ||
| Storage conditions | -40 ~ 60 ℃ | ||
| Standard cable length | 2 meters | ||
| The farthest lead length | RS485 1000 meters | ||
| Protection level | IP65 | ||
|
Wireless transmission |
|||
| Wireless transmission | LORA / LORAWAN, GPRS, 4G,WIFI | ||
|
Customized service |
|||
| Screen | LCD screen to show the real time data | ||
| Data logger | Store the data in the excel format | ||
| Alarm | Can set alarm when the value ubnormal | ||
| Free server and software | Send free server and software to see real time data in PC or mobile | ||
| LED display screen | Big screen to show the data in site | ||
|
Solar power system |
|||
| Solar panels | Power can be customized | ||
| Solar Controller | Can provide matched controller | ||
| Mounting brackets | Can provide the matched bracket | ||
FAQ
Q: What's the main characteristics of this 2 in 1 sensor?
A: It is easy for installation and can measure the Air temperature and Air humidity at the same time , 7/24 continuous monitoring.
Q:Can we choose other desired sensors?
A: Yes, we can supply the ODM and OEM service, the other required sensors can be inter grated in our present weather station.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485,0-5V,0-10V,4-20mA output. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q: Can you supply the free cloud server and software?
A: Yes, we can supply the free cloud server and the software if you buy our wireless modules, and you can see the real time data and download the history data in the PC end or mobile end.
Q: What’s the standard cable length?
A: Its standard length is 2 m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Sensor?
A: 3-5 years or longer.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.
