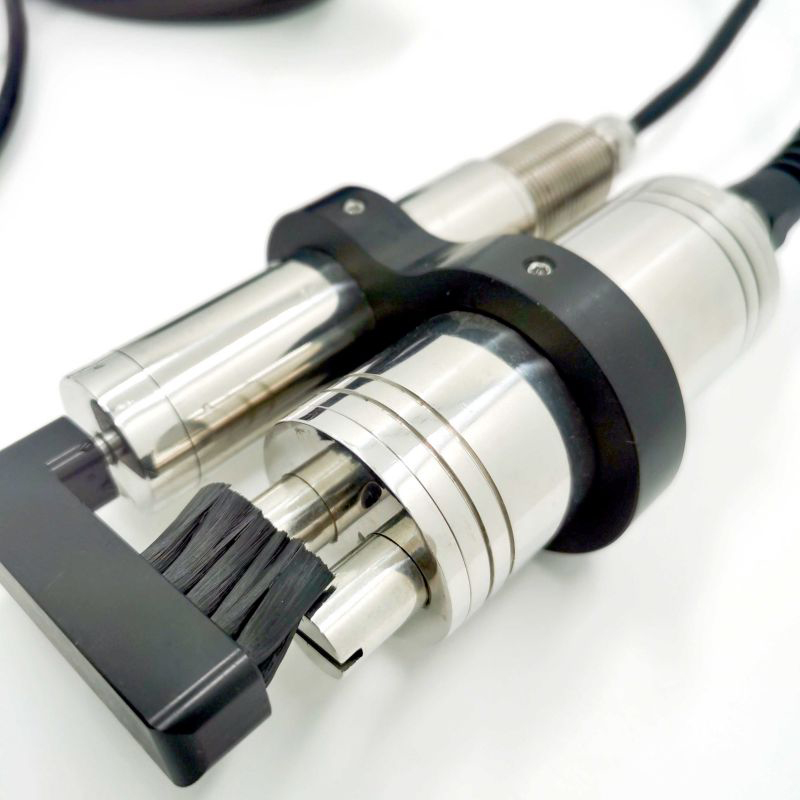

Low Maintenance Self Cleaning Water Suspended Solids Sensor
Product Features
●Stainless Steel Optical Probe
●Automatic Cleaning Brush
●RS485 output and 4-20mA output
●It can integrate LORA LORAWAN GPRS 4G WIFI,all kinds wireless module and we can also send free cloud server and software to see real time in the PC or Mobile.
Product Applications
Applications: It is widely used in water environment monitoring, water treatment equipment, aquaculture and robotics, providing important support for the protection of water resources.
Product Parameters
|
Measurement parameters |
|||
| Parameters name | Water suspended solids sensor | ||
| Parameters | Measure range | Resolution | Accuracy |
| Water suspended solids | 0～50000 mg/L | 0.1 mg/L | ±5% FS |
| Water temperature | 0 ～ 80 ℃ | 0.1℃ | ±0.1℃ |
|
Technical parameter |
|||
| Measuring principle | Optical back scatter technique | ||
| Digital output | RS485 MODBUS communication protocol | ||
| Analog output | 4-20mA | ||
| Housing material | Stainless steel | ||
| Working environment | Temperature 0 ～ 80 ℃ | ||
| Standard cable length | 2 meters | ||
| The farthest lead length | RS485 1000 meters | ||
| Protection level | IP68 | ||
|
Wireless transmission |
|||
| Wireless transmission | |||
|
Mounting Accessories |
|||
| Mounting brackets | 1.5 meters, 2 meters the other high can be customize | ||
| Measuring tank | Can be customize | ||
| Software | |||
| Free server | The free cloud server can be supplied if you use our wireless modules | ||
| Free software | 1. See the real time data | ||
| 2. Download the history data in excel type | |||
FAQ
Q: What's the main characteristics of this dissolved oxygen sensor?
A: It is easy for installation and can measure the water quality online with the RS485 output, 7/24 continuous monitoring.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC: 12-24V, RS485. The other demand can be custom made.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module, we provide RS485 Mudbus communication protocol. We can also provide matching LORA/LORANWAN/GPRS/4G wireless transmission modules.
Q: Do you have matching software?
A: Yes, we have matching cloud services and software. You can view data in real time and download data from the software, but you need to use our data collector and host.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 1KM.
Q: What's the lifetime of this Sensor?
A: It is usually 1-2 years.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A:Usually, the goods will be delivered within 3-5 working days after receiving your payment. But it depends on your quantity.
