Industrial Agricultural Aluminum Alloy Ultraviolet Ray Detector RS485 UV Sensor
Features
●Highly sensitive probe
●Built-in hardcover probe
●Built-in waterproof strip design
●Four-core waterproof shielded cable

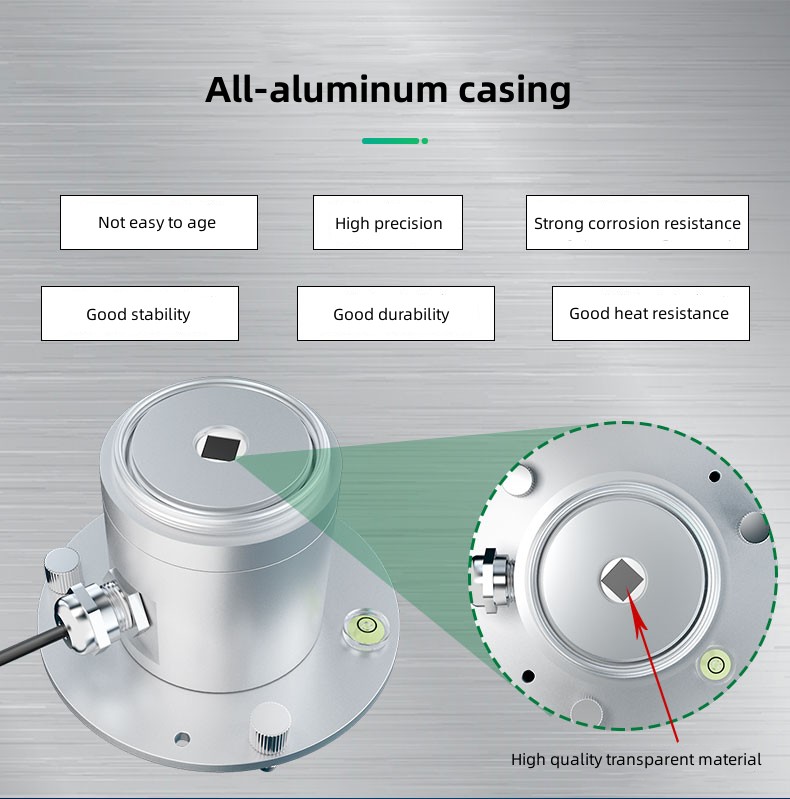

●All-aluminum casing
●Not easy to age
●High precision
●Strong corrosion resistance
●Good stability
●Good durability
●Good heat resistance

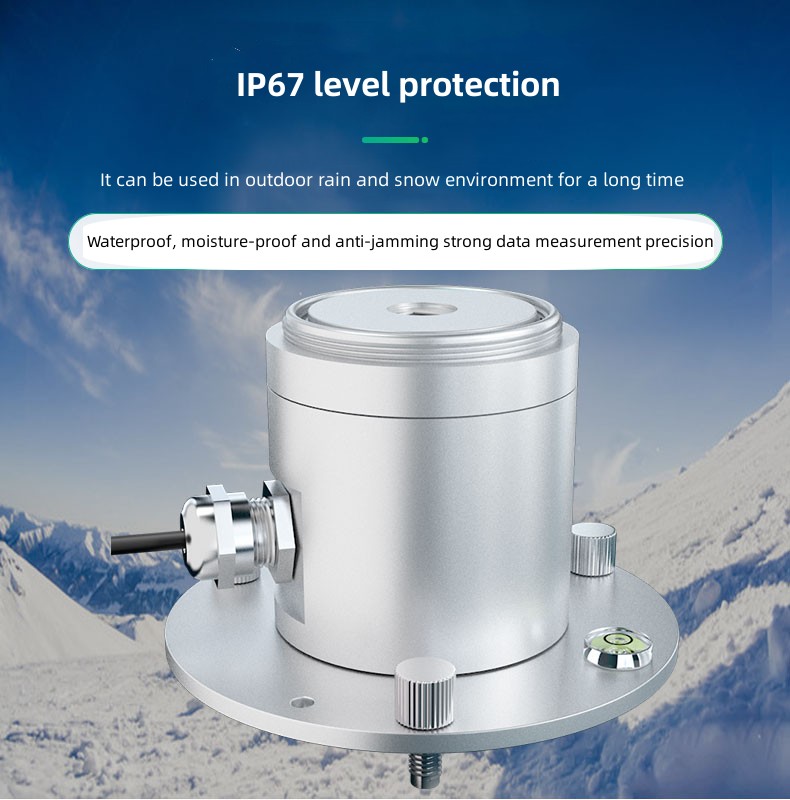

●IP67 level protection
●It can be used in outdoor rain and snow environment for a long time
●Waterproof and moisture-proof
●Strong anti-interference
●Active data reporting is supported
●Check data at any time
Matching Server and Software
The product can be equipped with cloud server and software,and real-time data can be viewed on the computer in real time.
4-20mA/RS485 output /0-5V/0-10VGPRS/ 4G/ WIFI /LORA/ LORAWAN wireless module.
Application
It is widely used in environmental monitoring, meteorological monitoring, agriculture, forestry, measurement of ultraviolet rays in the atmosphere and artificial light sources.
Product parameters
| Parameter name | UV Sensor |
| Power supply range | 10V ~ 30V DC |
| Output mode | RS485 modbus protocol |
| Power consumption | 0.06 W |
| Measuring range | 0~15 mW/ cm2 |
| Resolution | 0.01 mW/ cm2 |
| Typical accuracy | ±10% FS |
| Measuring wavelength range | 290-390 nm |
| Reaction time | 0.2s |
| Cosine response | ≤ ± 10% |
| Protection level | IP67 |
|
Data Communication system |
|
| Wireless module | GPRS, 4G, LORA , LORAWAN |
| Server and software | Support and can see the real time data in PC directly |
FAQ
Q: What's the main characteristics of this sensor?
A: Small size, easy to use, cost-effective, can be used in harsh environments.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: It has RS485 / 4-20mA /0-5V/ 0-10V output, for the RS485 output, the power supply is DC: 7-30VDC
for the 4-20mA /0-5V output, it is 10-30V power supply, for the 0-10V, the power supply is DC 24V.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.
Q:Do you have servers and software?
A:Yes, we can provide server and software which you can see the real time data and also the history data and also can set the alarm in the software.
Q: What’s the standard cable length?
A: Its standard length is 2m. But it can be customized, MAX can be 200m.
Q: What's the lifetime of this Sensor?
A: At least 3 years long.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What industry can be applied to in addition to construction sites?
A:Greenhouse, smart Agriculture, Solar power plant etc.
