Digital Hand held Multi Parameter Weather Station Sensor

Short Description:

Portable hand-held weather station is used to quickly monitor air temperature, relative humidity, wind speed, wind direction, air pressure and rainfall elements, and record and upload meteorological data of six elements. Through the design of data processing and display function module, it can automatically collect and process data and display six elements data in real time.It has the functions of data power failure protection, self-inspection, fault reminding, electricity alarm, etc.


Product Detail

Product Tags

Features

1.6 in 1 weather station with high precise measurement

Air temperature, humidity, pressure, ultrasonic wind speed, wind direction, optical rainfall data collection adopts 32-bit high-speed processing chip, with high precision and reliable performance

2 .Handheld with battery power supply

DC12V, capacity: 3200mAh battery

Product size: height: 368, diameter: 81mm Product weight: handheld host: 0.8kg;Small size, easy to hand quick monitoring, easy to carry with battery.

3.OLed screen

0.96 inch O Led screen display (with back light setting) which show the real time data in 1 second update.

4.Integrated design, simple structure, with tripod support, easy to assemble quickly.

• Modular, no moving parts, removable battery.

• Multiple output, local display, RS 485 output.

• Special technology of protective cover, black spraying and heat insulation treatment, accurate data.

5.Optical rain sensor

High-precision maintenance-free optical rain sensor.

6.Multiple wireless output methods

RS485 modbus protocol and can use the LORA/  LORAWAN/ GPRS/ 4G/WIFI wireless data transmission, and the LORA LORAWAN frequence can be custom made.

7.Send matched cloud server and software

The matched cloud server and software can be supply  if using our wireless module.

The weather station comes with 0.96 inch Led screen, which can read in time.

It has basic three functions:

1. See real time data in the PC end

2. Download the history data in excel type

3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.

8.Packed in a portable suitcase to help you monitor the climate anytime, anywhere.

Product advantage

Small size, Handheld portable with built in battery , easy to hand fast monitoring, fast reading, carry, anytime anywhere monitoring. Meteorological monitoring of agriculture, transportation, photovoltaic and smart city is not only suitable for the above scenarios, but also for meteorological monitoring and mobile monitoring of forest fire, coal mine, tunnel and other special scenarios to reduce costs.

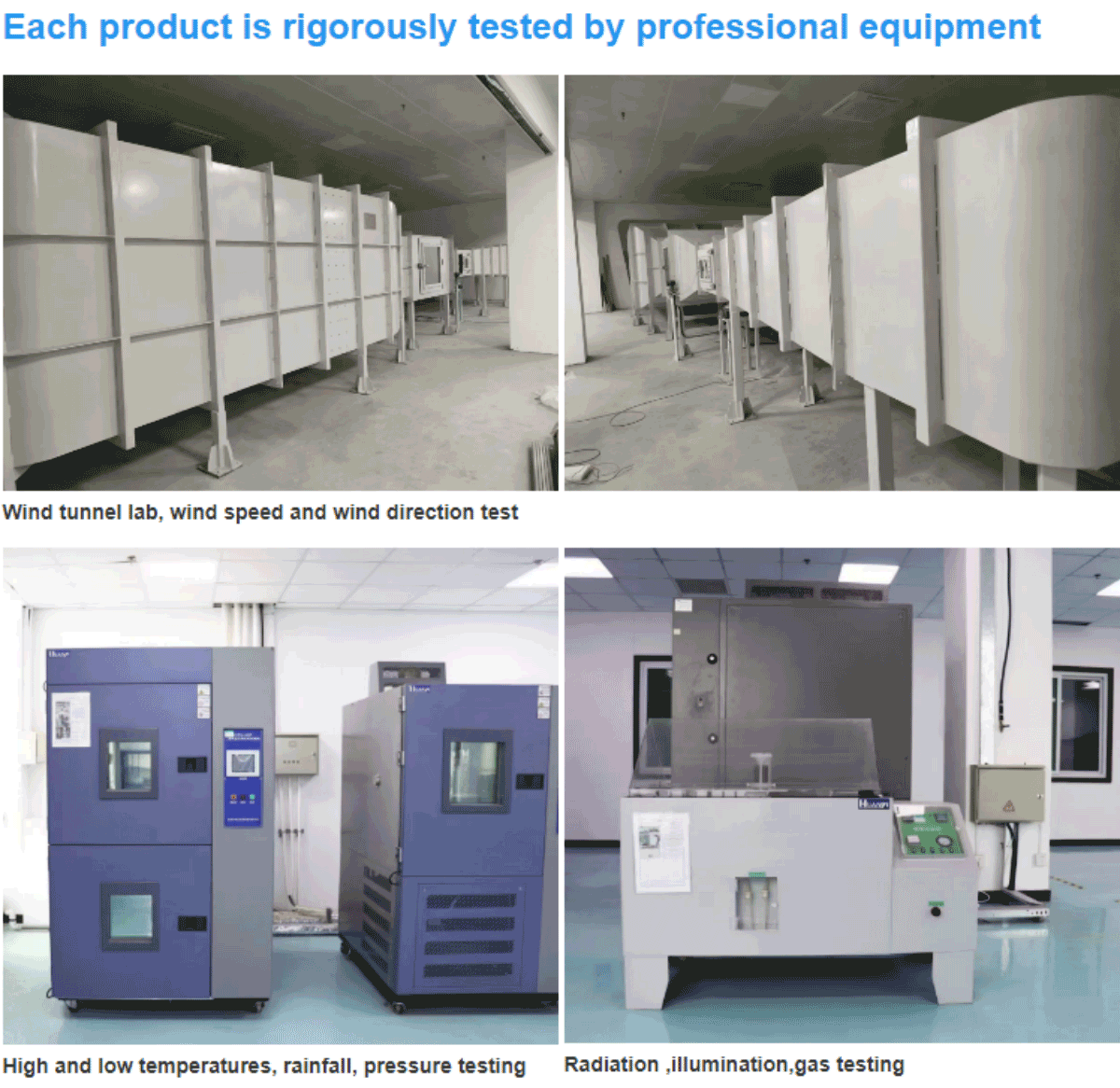

avav (2)
avav (3)

Product Application

Meteorological monitoring, micro-environmental monitoring, grid-based environmental monitoring and agrometeorological monitoring Traffic meteorological monitoring, photovoltaic environmental monitoring and smart city meteorological monitoring

Product parameters

Measurement parameters

Parameters Name 6 in 1:  Air temperature, Humidity, Wind speed, Wind direction, Pressure, Rainfall
Parameters Measure range Resolution Accurancy
Air temperature -40~85℃ 0.01℃ ±0.3℃(25℃)
Air relative humidity 0-100%RH 0.1%RH ±3%RH(<80%RH)
Atmospheric pressure 300-1100hpa 0.1hpa ±0.5hPa(25℃,950-1100hPa)
Wind speed 0-35m/s 0.1m/s ±0.5m/s
Wind direction 0-360° 0.1° ±5°
Rainfall 0.2~4mm/min 0.2mm ±10%
* Other customizable parameters Radiation, PM2.5,PM10,Ultraviolet, CO,SO2, NO2, CO2, O3




Monitoring principle

Air temperature and humidity: Swiss Sensirion digital temperature and humidity sensor
Wind speed and direction: Ultrasonic sensor

Technical parameter
Stability Less than 1% during the life of the sensor
Response time Less than 10 seconds
Warm-up time  30S
Supply voltage DC12V, capacity: 3200mAh battery
Output 0.96 inch O Led screen display (with back light setting);

RS485, Modbus RTU communication protocol;

Housing material ASA engineering plastics which can be used for 10 years outside
Working environment Temperature -40℃~60℃, working humidity: 0-95%RH  ;
Storage conditions -40 ~ 60 ℃
Continuous working hours Ambient temperature ≥60 hours; @-40℃ for 6 hours; Hibernated standby duration ≥30 days
Fixed way Supporting tripod bracket fixed, or hand-held
accessories Tripod stand, carrying case, hand-held handle, DC12V charger
reliability Average fault-free time ≥3000h
 update frequency 1s
Product size Height: 368, diameter: 81mm
product weight Handheld host: 0.8kg
Overall dimensions Packing case: 400mm x 360mm
The farthest lead length RS485 1000 meters
Protection level IP65
Electronic compass Optional
GPS Optional
Wireless transmission
Wireless transmission LORA / LORAWAN(eu868mhz,915mhz,434mhz), GPRS, 4G,WIFI
Cloud Server and Software introduce
Cloud server Our cloud server is bind up with the wireless module
Software function 1. See real time data in the PC end
2. Download the history data in excel type
3. Set alarm for each parameters which can send the alarm information to your email when the measured data are out range.
Mounting Accessories
Stand pole Tripod bracket

FAQ

Q: What's the main characteristics of this compact weather station?

A:  Handheld portable compact weather station with battery power supply which can show the real time data in the LED screen every second. And small size, easy to hand quick monitoring, easy to carry. Integrated design, simple structure, with tripod support, easy to assemble quickly.

Q:Could I get samples?

A:Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:Do you supply tripod and cases?

A: Yes, we can supply the stand pole and the tripod and also the case which you can take to outside to .dynamic monitoring.

Q: What’s the common power supply and signal output?

A: DC12V, capacity: 3200mAh battery with the  RS 485 and the O led output.

Q: What’s the application?

A:Meteorological monitoring, micro-environmental monitoring, grid-based environmental monitoring and    agrometeorological monitoring Traffic meteorological monitoring, photovoltaic environmental monitoring and smart city meteorological monitoring

Q: Which output of the sensor and how about the wireless module?

A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module.

Q: What's the lifetime of this weather station?

A: We use the ASA engineer material which is anti-ultraviolet radiation which can be used for 10 years outside.

Q: May I know your warranty?

A: Yes, usually it’s 1 year.

Q:What’s the delivery time?

A: Usually, the goods will be delivered in 3-5 working days after receiving your payment. But it depends on your quantity.

Q: What industry can be applied to in addition to construction sites?

A:Urban roads,bridges,smart street light, smart city,industrial park and mines,  etc.
