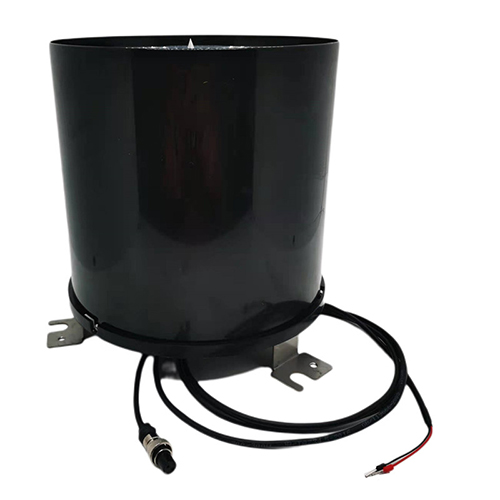

ABS Pulse Output Rs485 Output Rain Gauge
Video
Product Features
1. ABS Durable Shell
2. No rust
3. Built-in filter circuit
1. Small size and easy installation
2. High precision and good stability

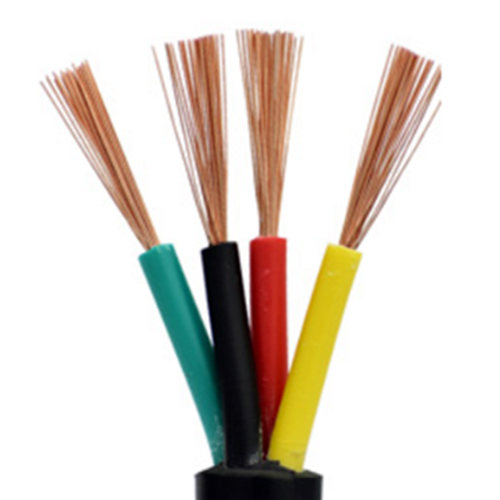

1. Dedicated four-core shielded wire
2. Water and oil proof
3. Strong anti-interference ability

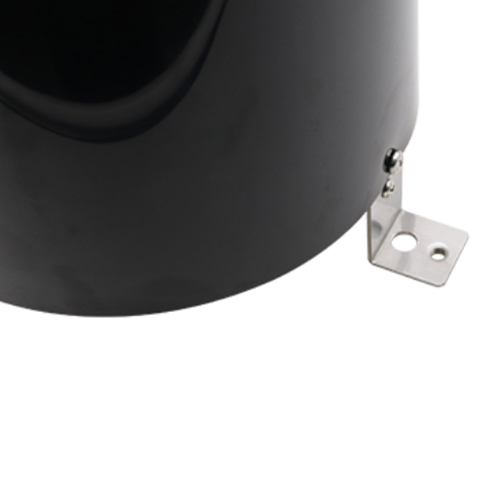

The rain opening is made of engineering ABS plastic, with high smoothness and small errors caused by stagnant water and stainless steel base design.

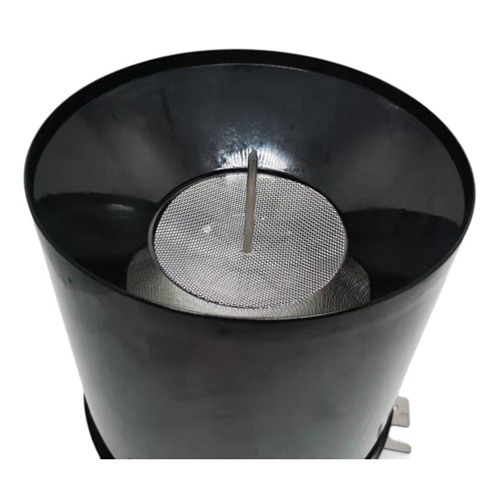

Built-in stainless steel filter can filter debris. At the same time, steel needles are installed in the middle to prevent birds from nesting.
Product Applications
It is suitable for flood control, hydrological station, reservoir water regime management, field monitoring station, etc, to help you manage and utilize water regime.
Product Parameters
| Product Name | Pulse/RS485 output ABS tipping bucket rain gauge |
| Material | ABS |
| Resolution | 0.2mm/0.5mm |
| Rain inlet size | φ200mm |
| Sharp edge | 40～45 degree |
| Rain intensity range | 0 mm~4mm/min; Maximum rain intensity allowed 8mm/min. |
| Measurement accuracy | ≤±3% |
| Output | A: RS485 (standard Modbus-RTU protocol, device default address: 01) B: Pulse output C:4-20mA/0-5V/0-10V |
| Power supply | 4.5~30V DC (when the output signal is RS485) |
| Power consumption | 0.24 W |
| Way of sending | Two-way reed switch on and off signal output |
| Working environment | Ambient temperature: 0 ° C ~ 70 ° C |
| Relative humidity | <100%(40℃) |

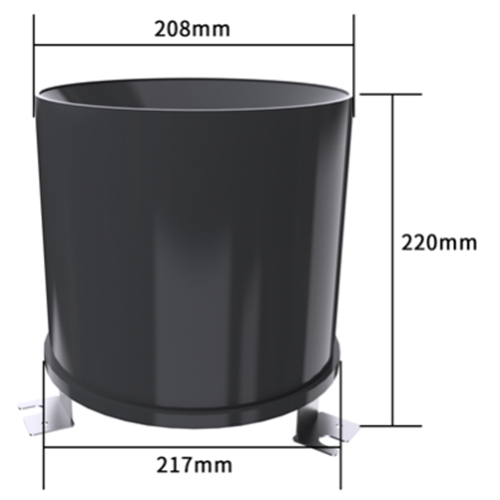

| Size | φ220mm×217mm |
FAQ
Q: What's the main characteristics of this rain gauge sensor?
A: It is ABS tipping bucket Rain Gauge with the measure resolution with 0.2mm/0.5mm and with very cheap price. Built-in stainless steel filter can filter debris. At the same time, steel needles are installed in the middle to prevent birds from nesting.
Q: Could I get samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.
Q: What's the output type of this rain gauge?
A: It including the pulse output,the RS485 output,4-20mA/0-5V/0-10V output.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q: What's the delivery time?
A: Usually, the goods will be delivered in 1-3 working days after receiving your payment. But it depends on your quantity.
