40 Meters Radar Water Level Sensor
Video
Feature

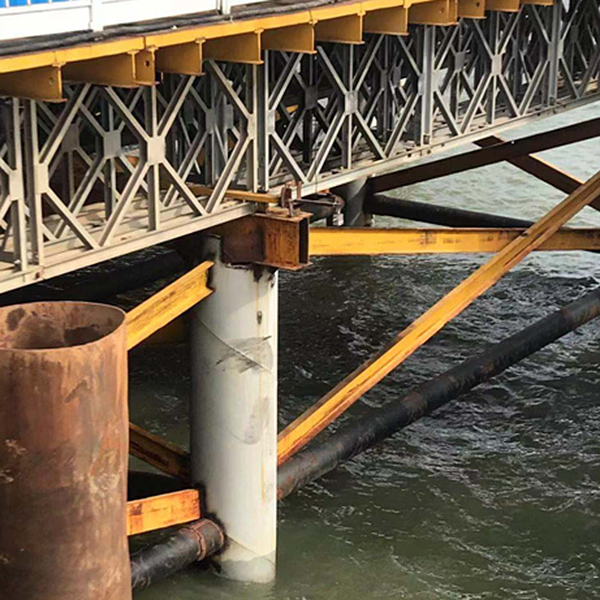

1. Product specifications: 146×88×51 (mm), weight 900g, can use bridges and other infrastructure.
facilities or cantilever and other auxiliary facilities.
2. The measuring range can be 40m, 70m, 100m.
3. Wide power supply range 7-32VDC, solar power supply can also meet the demand.
4. With sleep mode, the current is less than 1mA under 12V power supply.
5. Non-contact measurement, not affected by ambient temperature and humidity, nor corroded by water bodies.
Radar FMCW Technology
1. Using radar FMCW technology to measure liquid level, low power consumption, high precision, stable and reliable performance.
2. Low system power consumption, solar power supply can meet.
Non contact measurement
1. Non-contact measurement is not affected by temperature, humidity, water vapor, pollutants and sediments in water.
2. Flat antenna design to avoid the influence of insect nesting and netting on radar signals
Easy install
1. Simple structure, light weight, strong wind resistance.
2. It can also be monitored under high velocity conditions during flood periods.
IP68 waterproof and easy connect
1. IP68 waterproof and can be used in the field totally.
2. Multiple interface modes, both digital interface and analog interface, to facilitate system connection
Product Application
Application scenario 1

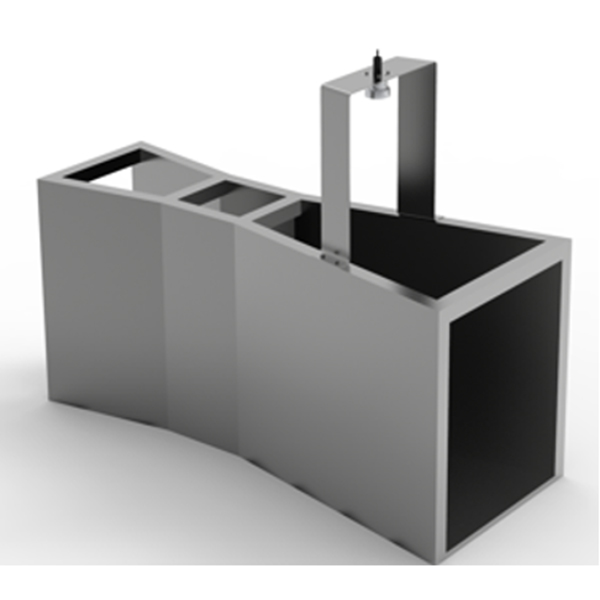

Cooperate with standard weir trough (such as Parsell trough) to measure flow
Application scenario 2

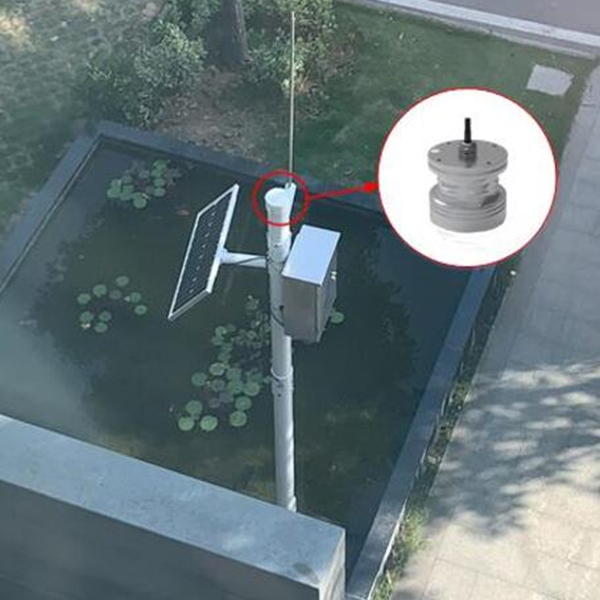

Natural river water level monitoring
Application scenario 3
Cistern water level monitoring
Application scenario 4
Urban flooding water level monitoring
Application scenario 5
Electronic water gauge
Product Parameters
|
Measurement parameters |
|
| Product Name | Radar Water level meter |
|
Flow measurement system |
|
| Measuring principle | Radar Planar microstrip array antenna CW + PCR |
| Operating mode | Manual, automatic, telemetry |
| Applicable environment | 24 hours, rainy day |
| Operating temperature range | -35℃~+70℃ |
| Operating Voltage | 7~32VDC；5.5~32VDC(Optional) |
| Relative humidity range | 20%~80% |
| Storage temperature range | -40℃~70℃ |
| Working current | 12VDC input, working mode: ≤90mA standby mode:≤1mA |
| Lightning protection level | 6KV |
| Physical dimension | Diameter: 146*85*51（mm） |
| Weight | 800g |
| Protection level | IP68 |
|
Radar Water level gauge |
|
| Water level Measuring range | 0.01~40.0m |
| Water level Measuring accurancy | ±3mm |
| Water level Radar frequency | 24GHz |
| Antenna angle | 12° |
| Measurement duration | 0-180s, can be set |
| Measuring time interval | 1-18000s, adjustable |
|
Data transmission system |
|
| Data transmission type | RS485/ RS232，4~20mA |
| Seting software | Yes |
| 4G RTU | Integrated (optional) |
| LORA/LORAWAN | Integrated (optional) |
| Remote parameter setting and remote upgrade | Integrated (optional) |
|
Application scenario |
|
| Application scenario | -Channel water level monitoring |
| -Irrigation area -Open channel water level monitoring | |
| -Cooperate with standard weir trough (such as Parsell trough) to measure flow | |
| -Water level monitoring of the reservoir | |
| -Natural river water level monitoring | |

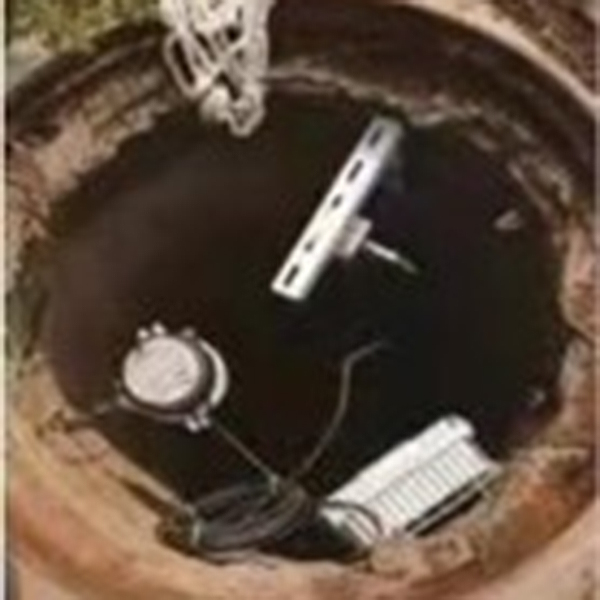

| -Water levelmonitoring of underground pipe network | |
| -Urban flooding water level monitoring | |
| -Electronic water gauge | |
