4-20mA RS485 Piezometer Pressure Transmitter
Features
●Small size, light weight,
●All stainless steel seal construction
●Can work in corrosive environment
●Easy and simple installation
●It has extremely high vibration and impact resistance
●316L stainless steel isolation diaphragm construction
●High precision, all stainless steel structure
●Miniature amplifier, 485 signal output
●Strong anti-interference and good long-term stability

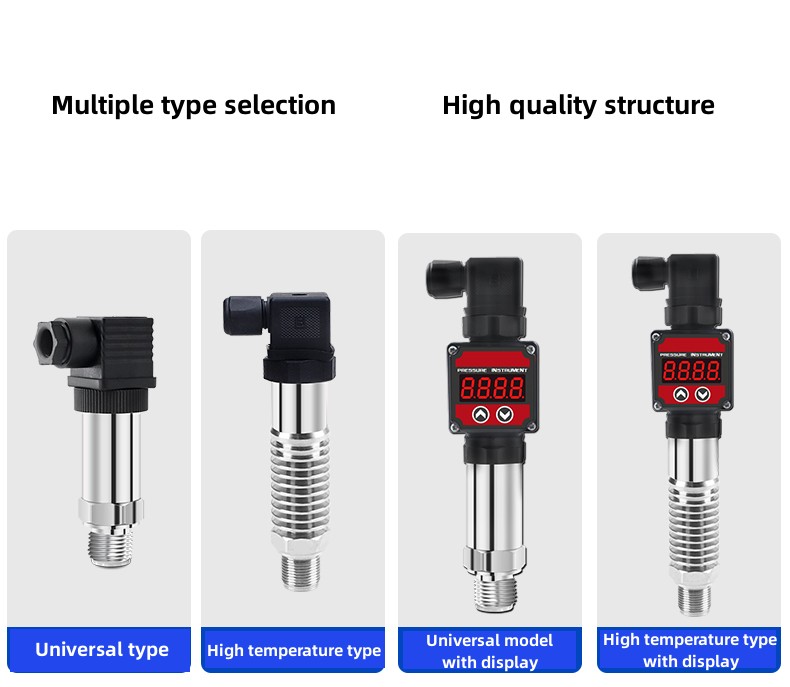

●Diversification of shape and structure
●The pressure measurement can operate normally and stably in the high temperature environment of waterproof and dust proof.
●Wide range of compatibility
●Seismic design
●Triple protection
●Wide voltage power supply
Product advantage
Send matched cloud server and software
Can use the LORA/ LORAWAN/ GPRS/ 4G/WIFI wireless data transmission.
It can be RS485 output with wireless module and matched server and software to see real time in PC end
Application
Widely used in process control, aviation, aerospace, automotive, medical equipment, HVAC and other fields.
Product parameters
| Product Name | Pipeline pressure transmitter sensor |
| Power supply voltage | 10~36V DC |
| Maximum power consumption | 0.3W |
| Output | RS485 Standard ModBus-RTU communication protocol |
| Measuring range | -0.1~100MPa (optional) |
| Measurement accuracy | 0.2% FS- 0.5%FS |
| Overload capacity | ≤1.5 times (continuous) ≤2.5 times (instant) |
| Temperature drift | 0.03%FS/℃ |
| Medium temperature | -40~75℃ ,-40~150℃ (high temperature type) |
| Working environment | -40~60℃ |
| Measuring medium | A gas or liquid that is not corrosive to stainless steel |
| Wireless module | GPRS/4G/WIFI/LORA/LORAWAN |
| Cloud server and software | Can be custom made |
FAQ
Q:What is the warranty?
A:Within one year, free replacement, one year later, responsible for maintenance.
Q:Can you add my logo in the product?
A:Yes, we can add your logo in the laser printing, even 1 pc we can also supply this service.
Q:What is the measure range?
A:The default is -0.1 to 100MPa (Optional), which can be customized according to your requirements.
Q:Can you supply the wireless module?
A:Yes, we can integrate the wireless module including the GPRS 4G WIFI LORA LORAWAN.
Q:Do you have matched server and software?
A:Yes, the cloud server and software can be custom made and can see the real time data in PC or mobile.
Q:Are you manufactures?
A:Yes, we are research and manufacture.
Q:What about the delivery time?
A:Normally it take 3-5 days after the stable testing, before delivery, we keep sure every PC quality.
