10 in 1 Wind Speed Wind Direction Temperature Humidity Pressure PM2.5 PM10 Noise Illumination Rainfall Compact Weather Station

Short Description:

This series of products can collect temperature, humidity, air pressure, wind speed, wind direction, rainfall, radiation, illuminance, PM2.5,PM10, CO, SO2, CO2, NO2, O3, noise and other parameters, high product integration, high value, free installation. It is free of wiring and can completely replace the traditional patchwork small automatic meteorological environment observatory. We can provide servers and software, and support various wireless modules, GPRS, 4G, WIFI, LORA, LORAWAN.

Send email to us Download

Product Detail

Product Tags

Description

1.Infrared rain sensor

2. Ultraviolet sensor

3. North arrow

4. Ultrasonic probe

5. Control circuit

6. Louver (temperature, humidity, air pressure monitoring position)

7. PM2.5, PM10 sensor

8. Bottom fixing flange

※ This product can be equipped with electronic compass, GPRS (built-in) / GPS (choose one)

Features

● Real-time measurement using advanced sensing technology.

● Works around the clock, free from heavy rain, snow, frost and weather.

● High measurement accuracy and stable performance.

● Compact and beautiful structure.

● High integration, easy to install and disassemble.

● Maintenance free, no on-site calibration.

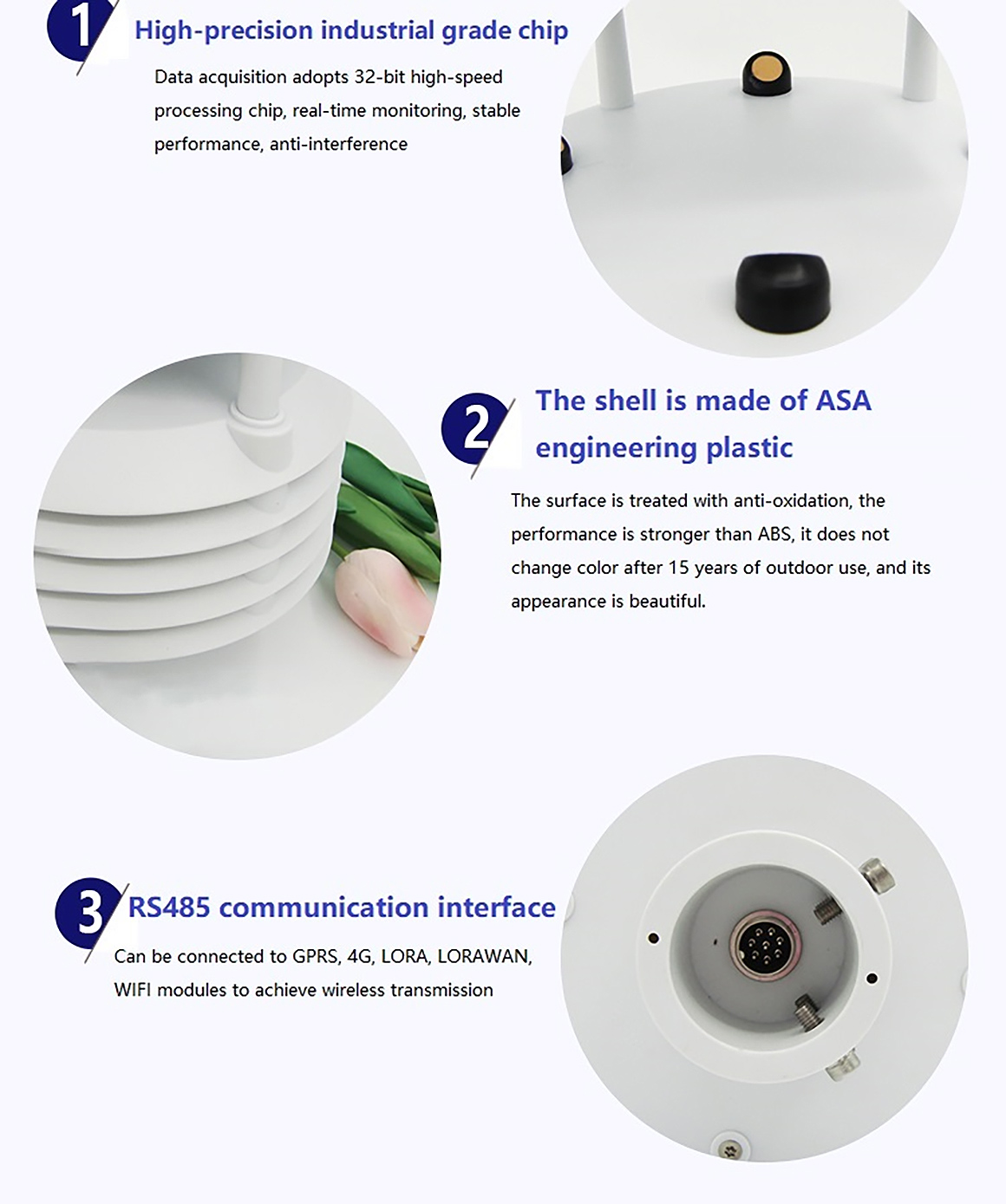

● Using ASA engineering plastics outdoor application does not change color all the year round.

Technical Data Sheet

Application Field

● Weather monitoring

● Urban environmental monitoring

● Wind power

● Navigation ship

● Airport

● Bridge tunnel

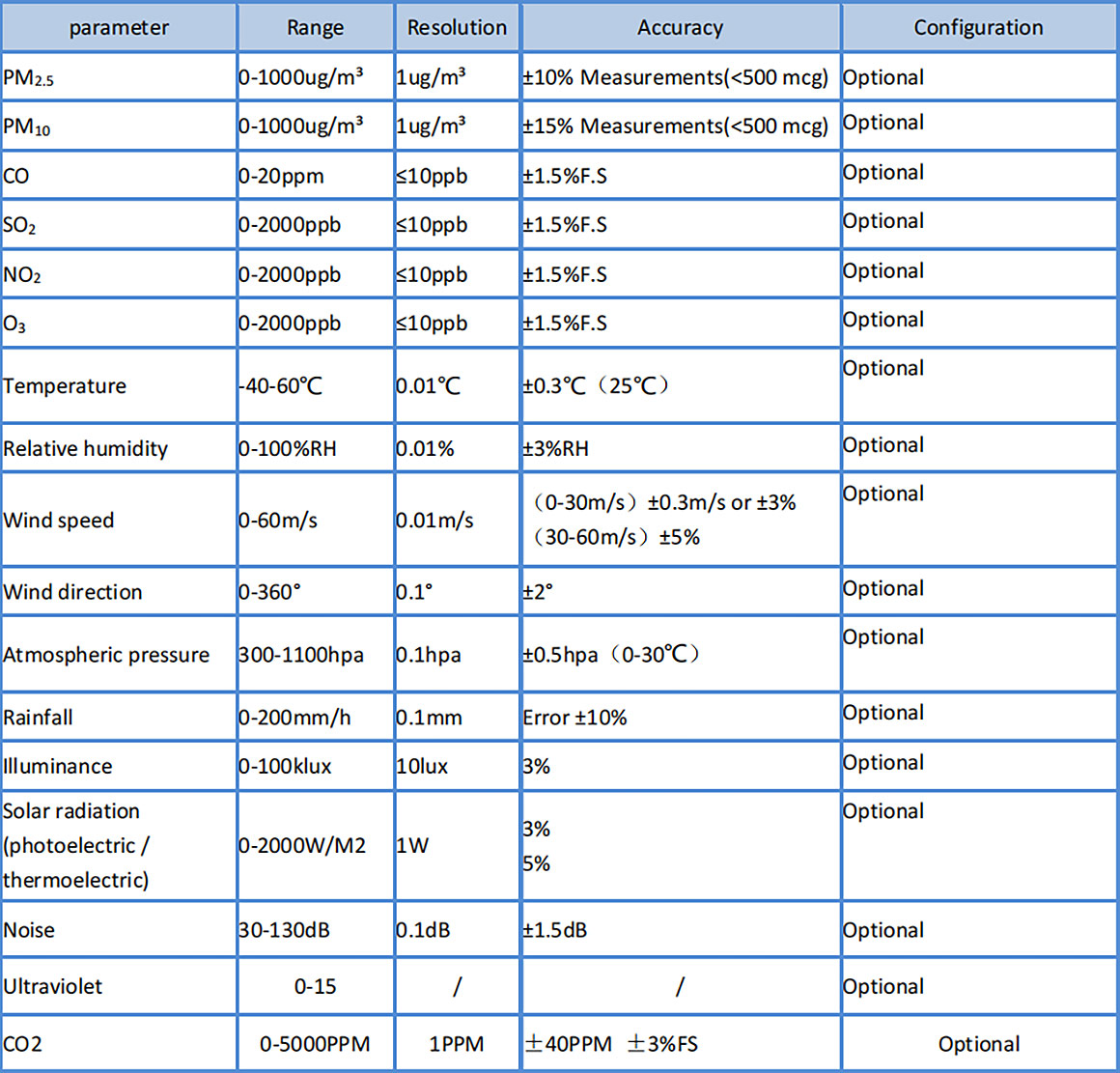

Product Parameters

Measurement parameters
Parameters name	10 in 1 : Ultrasonic wind speed , wind direction, Air temperature , Air relative humidity , Atmospheric pressure, PM2.5,PM10,Rainfall, illumination , Noise
Parameters	Measure range	Resolution	Accuracy
Wind speed	0-60m/s	0.01m/s	（0-30m/s）±0.3m/s or ±3%FS
Wind direction	0-360°	0.1°	±2°
Air temperature	-40-60℃	0.01℃	±0.3℃（25℃）
Air relative humidity	0-100%RH	0.01%	±3%RH
Atmospheric pressure	300-1100hpa	0.1hpa	±0.5hpa（0-30℃）
PM2.5	0-1000ug/m³	1ug/m³	±10%
PM10	0-1000ug/m³	1ug/m³	±10%
Rainfall	0-200mm/h	0.1mm	±10%
Illumination	0-100klux	10lux	3%
Noise	30-130dB	0.1dB	±1.5dB
* Other customizable parameters	Radiation,CO,SO2, NO2, CO2, O3
Technical parameter
Stability	Less than 1% during the life of the sensor
Response time	Less than 10 seconds
Warm-up time	30S (SO2 \ NO2 \ CO \ O3 12 hours)
Working current	DC12V≤60ma (HCD6815) -DC12V≤180ma
Power consumption	DC12V≤0.72W (HCD6815); DC12V≤2.16W
Life time	In addition to SO2 \ NO2 \ CO \ O3 \ PM2.5 \ PM10 (normal environment for 1 year, high pollution environment is not guaranteed), life is not less than 3 years
Output	RS485, MODBUS communication protocol
Housing material	ASA engineering plastics
Working environment	Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions	-40 ~ 60 ℃
Standard cable length	3 meters
The farthest lead length	RS485 1000 meters
Protection level	IP65
Electronic compass	Optional
GPS	Optional
Wireless transmission
Wireless transmission	LORA / LORAWAN, GPRS, 4G,WIFI

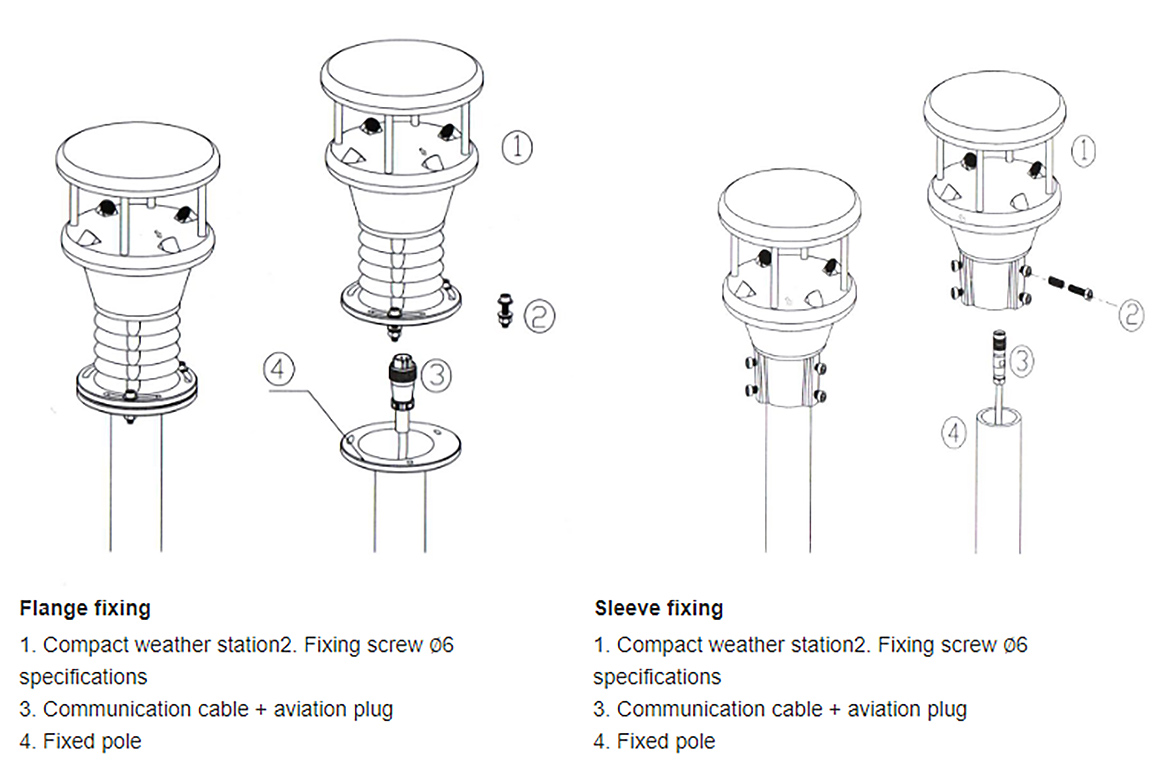

Mounting Accessories
Stand pole	1.5 meters, 2 meters ,3 meters higth , the other higth can be customize
Equiment case	Stainless steel waterproof
Ground cage	Can supply the matched ground cage to buried in the ground
Lightning rod	Optional(Used in thunderstorm places)
LED display screen	Optional
7 inch touch screen	Optional
Surveillance cameras	Optional

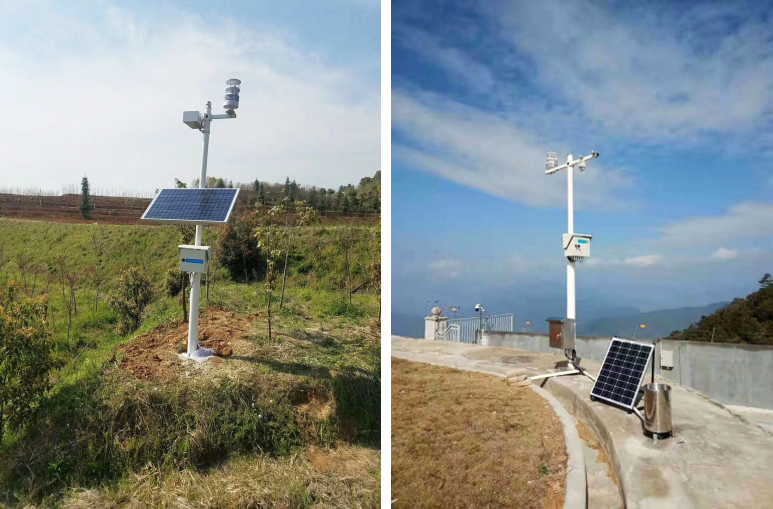

Solar power system
Solar panels	Power can be customized
Solar Controller	Can provide matched controller
Mounting brackets	Can provide the matched bracket
